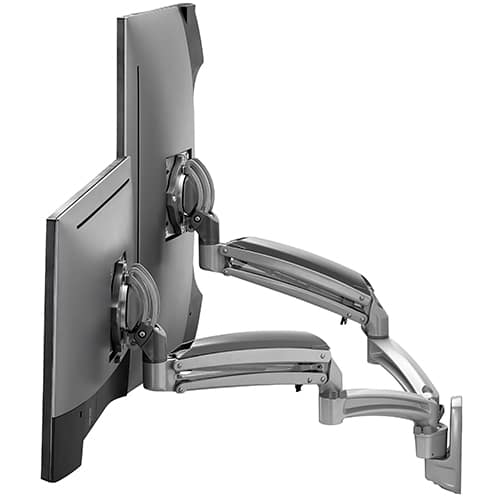

Kontour™ K1W Dynamic Wall Mount Reduced Height, 2 Monitors-K1W220SXRH
Dual monitor wall mount for 10" - 30" displays, featuring 13" dynamic height adjustment and a silver finish
The Chief K1W220SXRH Kontour K1W is a dual monitor workstation mount designed to provide ergonomic flexibility in office, healthcare, and public environments. This reduced-height model supports two displays ranging from 10" to 30" (254mm-762mm) with a weight capacity per display of 5 - 25 lbs (2.3 - 11.3 kg). It features 13" (330.2 mm) of dynamic height adjustment through smooth-motion gas-spring technology, allowing users to transition between sitting and standing positions. The arms provide a maximum extension of 20.81 in (52.9 cm) and allow for both landscape and portrait orientation. For optimal viewing angles, the patented Centris™ Extreme Tilt technology provides a range of +75° to -10°. This silver-finished mount can be installed directly to a wall or used with OFB Furniture Brackets, and it is compatible with most slatwall products when using an OFBLU or OFBU accessory interface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 20.81 in (52.9 cm) |
| Shipping Dimensions | 35.5" x 10.5" x 10.5" (901.7 x 266.7 x 266.7 mm) |
| Shipping Weight | 14 lbs (6.4 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-TabletopWall |
All other specifications 11
| Color | Silver |
| Compatible With OFB Furniture Brackets | Yes |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | Yes |
| Special Features | Height Assist |
| TAA Compliant | No |
| Tilt | +75°-10° |
| UPC | 841872171074 |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
M-Series Universal Interface Bracket-MSBUB
MSBUB$153.60
M-Series VESA Interface Bracket-MSBVB
MSBVB$125.60
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Questions about this part
What size monitors will fit the K1W220SXRH?
This mount is designed for two displays in the 10" - 30" (254mm-762mm) range, with each monitor weighing between 5 - 25 lbs (2.3 - 11.3 kg).
How much vertical adjustment does the K1W220SXRH provide?
The K1W220SXRH provides 13" (330.2 mm) of dynamic height adjustment using gas-spring technology to assist with positioning.
Can this mount be used with slatwalls?
Yes, it can be mounted to most slatwall products when paired with the appropriate OFBLU or OFBU universal slatwall interface brackets.
What is the tilt range for the monitors?
The integrated Centris™ Extreme Tilt technology allows for effortless positioning from +75° to -10°.
Does this model allow for portrait orientation?
Yes, the K1W220SXRH supports both landscape and portrait orientations for its two displays.
