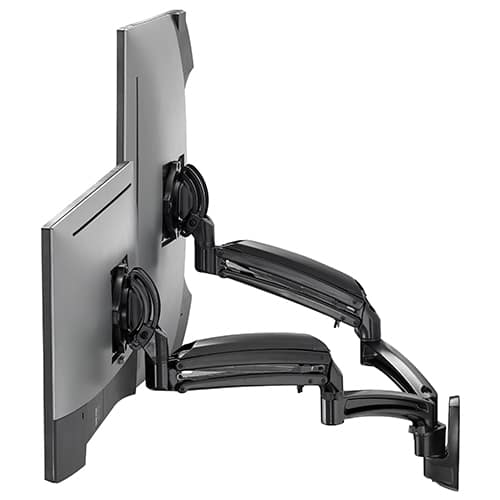

Kontour™ K1W Dynamic Wall Mount Reduced Height, 2 Monitors-K1W220BXRH
Dynamic height-adjustable wall mount for dual 10"-30" monitors, 5-25 lbs capacity, with tilt, swivel, and extension
The Chief K1W220BXRH Kontour™ K1W is a dynamic height-adjustable wall mount designed to support two monitors in either landscape or portrait orientation. This reduced-height solution provides 13" (330.2 mm) of dynamic height adjustment through smooth-motion gas-spring technology, allowing users to shift their displays between sitting and standing positions easily. Each monitor can be adjusted via tilt (+75° to -10°), swivel, and extension, with a maximum extension of 20.81 in (52.9 cm). The system accommodates displays ranging from 10" to 30" (254mm-762mm) with a weight capacity of 5 - 25 lbs (2.3 - 11.3 kg) per arm. This black-finished, forged aluminum mount includes tool-free cable management covers for a clean installation. For specialized setups, this SKU is compatible with OFB furniture brackets and can be mounted to most slatwall products when used with the appropriate accessory interfaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 20.81 in (52.9 cm) |
| Shipping Dimensions | 35.5" x 10.5" x 10.5" (901.7 x 266.7 x 266.7 mm) |
| Shipping Weight | 14 lbs (6.4 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-TabletopWall |
All other specifications 11
| Color | Black |
| Compatible With OFB Furniture Brackets | Yes |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | Yes |
| Special Features | Height Assist |
| TAA Compliant | No |
| Tilt | +75°-10° |
| UPC | 841872171067 |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
M-Series Universal Interface Bracket-MSBUB
MSBUB$153.60
M-Series VESA Interface Bracket-MSBVB
MSBVB$125.60
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Questions about this part
Will the K1W220BXRH fit my dual monitor setup?
It is designed for two monitors ranging from 10" to 30" (254mm-762mm) per screen. Each monitor must weigh between 5 and 25 lbs (2.3 - 11.3 kg).
How much height adjustment does this mount provide?
The Kontour K1W features 13" (330.2 mm) of dynamic height adjustment using gas-spring technology to facilitate ergonomic positioning.
Can I mount this to a slatwall?
Yes, this model can be mounted to most slatwall products when paired with OFBLU or OFBU universal slatwall interface brackets.
What is the difference between this and the standard K1W mount?
The K1W220BXRH is a reduced height version specifically designed for dual-monitor configurations.
Which installation manual should I use for submittals?
The K1W-K1S Series Installation Manual (PDF) contains the necessary technical details for the installation of this series.
