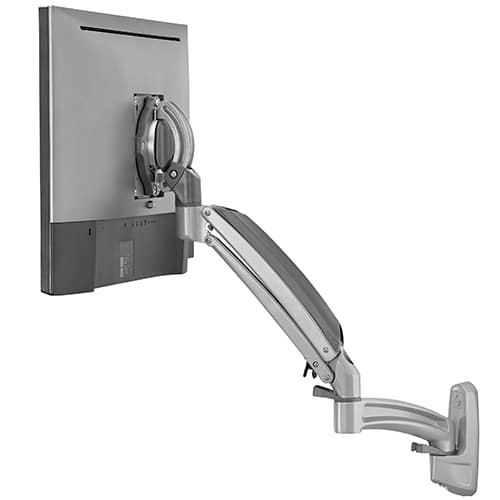

Kontour™ K1W Dynamic Wall Mount Reduced Height, 1 Monitor-K1W120SXRH
Dynamic height-adjustable wall mount for 10"–30" monitors, 5–25 lbs capacity, featuring 13" of vertical travel and 20.31" max extension
The Chief K1W120SXRH is a dynamic height-adjustable wall mount designed to optimize ergonomic positioning for single-monitor setups in office, healthcare, and public environments. This silver-finished mount utilizes smooth-motion gas-spring technology to provide 13" (330.2 mm) of dynamic height adjustment, allowing users to transition between sitting and standing positions effortlessly. The arm provides a maximum extension of 20.31" (51.6 cm) and offers highly flexible movement including swivel, tilt, and extension. Using patented Centris™ Extreme Tilt technology, the monitor can be positioned anywhere from +75° to -10°, allowing for precise fingertip adjustments. This reduced-height model supports displays from 10" to 30" with a weight capacity ranging from 5 lbs (2.3 kg) to 25 lbs (11.3 kg). For a clean installation, the mount features tool-free cable management covers to conceal wiring during use.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 20.31 in (51.6 cm) |
| Shipping Dimensions | 33.75" x 17.5" x 6.5" (857.3 x 444.5 x 165.1 mm) |
| Shipping Weight | 11.5 lbs (5.2 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-TabletopWall |
All other specifications 11
| Color | Silver |
| Compatible With OFB Furniture Brackets | Yes |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Reduced Height | Yes |
| Special Features | Height Assist |
| TAA Compliant | No |
| Tilt | +75°-10° |
| UPC | 841872171043 |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
CPU Wall/Desk Mount - KSA1023B
KSA1023B$77.60
CPU Wall/Desk Mount - KSA1020B
KSA1020B$156.00
Kontour™ Metal Stud Accessory
KRAMSW$92.00

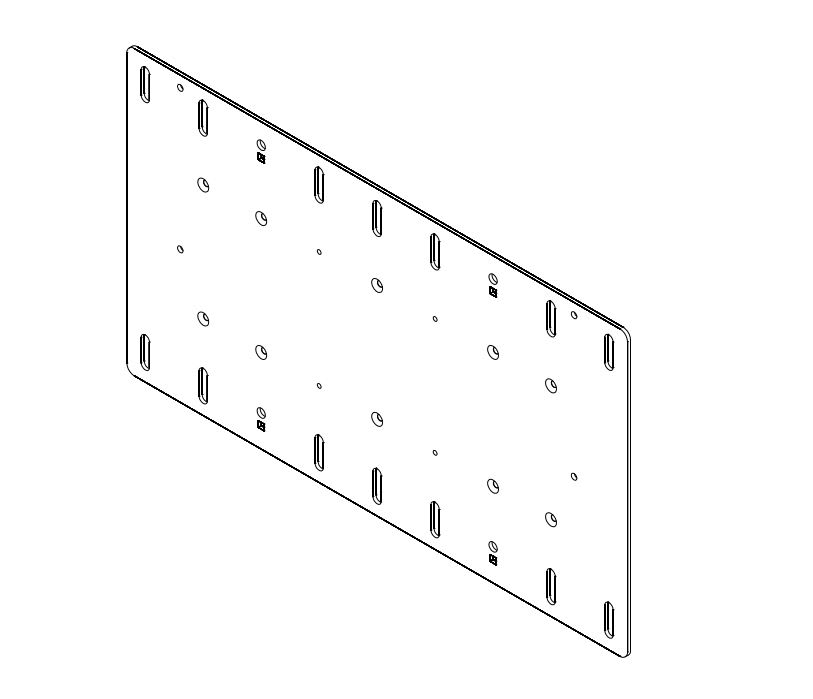

J-Series VESA Interface Bracket - JSBVB
JSBVB$61.60
Questions about this part
Will the K1W120SXRH fit my monitor?
This mount is designed for single 10" to 30" (254mm–762mm) displays. It supports a weight capacity between 5 lbs (2.3 kg) and 25 lbs (11.3 kg).
What do I need to mount this to a slatwall?
To use this with slatwall products, you will need to purchase the OFBLU or OFBU universal slatwall interface brackets.
How much vertical travel does the arm have?
The mount provides 13" (330.2 mm) of dynamic height adjustment, allowing for easy ergonomic shifting.
Can I use this mount with an All-in-One computer?
Yes, the 5–25 lbs (2.3–11.3 kg) weight capacity is designed to support many All-in-One monitors without requiring a heavy-duty arm.
Which installation manual should I use for submittals?
You can refer to the K1W-K1S Series Installation Manual (PDF) for detailed mounting and assembly instructions.
