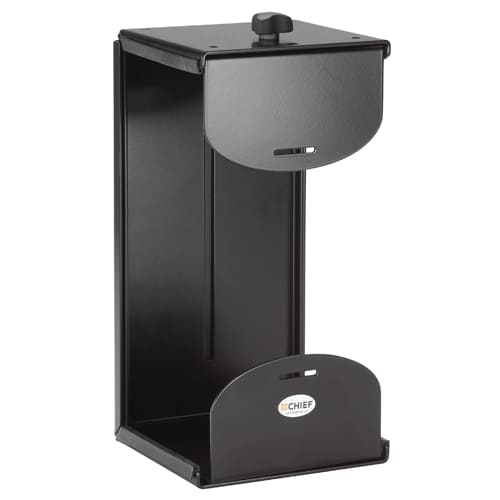

CPU Wall/Desk Mount - KSA1020B
Universal CPU component storage for desk or wall mounting, accommodating equipment heights from 9.75" to 18"
The KSA1020B is a universal CPU mount designed to integrate desktop computers into professional workstations. This component storage solution is versatile enough for both wall and desk-tabletop applications. It features a flexible design that accommodates equipment heights ranging from 9.75" to 18" (24.8 - 45.7 cm) and widths from 0 to 8.5" (0 - 215 mm). For ease of installation and maintenance, the unit utilizes ergonomic knobs for tool-free adjustments and a Q-Latch Mounting System that provides increased security via a latching flag. This system allows for quick connection and disconnection of the CPU without the need for tools. Integrators can choose between vertical wall mounting or desk mounting with swivel capabilities for horizontal or vertical orientation. This TAA compliant accessory is built to support everything from ultra-small form factor CPUs to standard tower desktop computers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Equipment Height Range | 9.75" - 18" (24.8 - 45.7cm) |
| Equipment Width Range | 0 - 8.5" (0 - 215mm) |
| Shipping Dimensions | 13" x 6" x 6"(330.2 x 152.4 x 152.4 mm) |
| Shipping Weight | 8.25 lbs (3.7 kg) |
| Accessory Type | Component Storage |
| Application | Desk-TabletopWall |
| Color | Black |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872115252 |
| Certifications | TAA |
Resources
Questions about this part
Will the KSA1020B fit my desktop computer?
Yes, the adjustable design accommodates a wide range of hardware, from ultra-small form factor CPUs to standard tower desktop computers.
How much height and width adjustment is available?
The KSA1020B supports an equipment height range of 9.75" to 18" (24.8 - 45.7 cm) and an equipment width range of 0 to 8.5" (0 - 215 mm).
Can I mount this on a desk or a wall?
The KSA1020B is designed for multiple application types, including vertical wall mounting and both vertical and horizontal desk mounting with swivel options.
Is tool-free installation possible with this mount?
Yes, the unit features ergonomic knobs for tool-free adjustment and a Q-Latch Mounting System for easy connection and disconnection.
What documentation is available for submittals?
The KSA1020B is supported by several technical documents, including the KSA1020 Technical Drawing and the KSA1020 Installation Manual.
