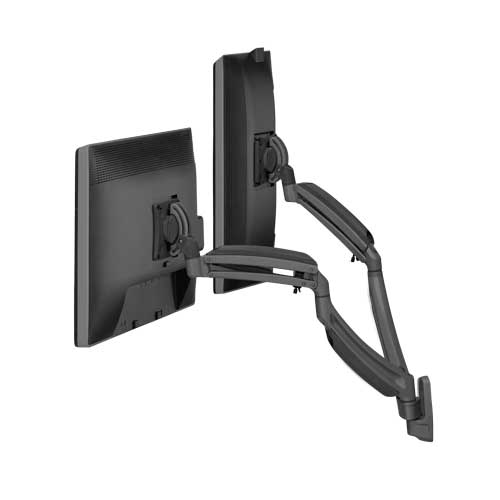

Kontour™ K1W Dynamic Wall Mount, 2 Monitors - K1W220B
Dynamic dual monitor wall mount for 10"–30" displays, featuring 13" of height adjustment and Centris™ Extreme Tilt
The Chief K1W220B Kontour™ Dynamic Wall Mount provides a highly adjustable solution for mounting two monitors in office, healthcare, or public environments. This dual-monitor system is designed to accommodate displays ranging from 10" to 30" (254mm–762mm) with a weight capacity of 5 to 25 lbs (2.3–11.3 kg) per monitor. Utilizing smooth motion gas-spring technology, the arms provide 13" (330.2 mm) of dynamic height adjustment, allowing users to shift displays between sitting and standing ergonomic positions. This black-finished mount features patented Centris™ Extreme Tilt technology, enabling effortless fingertip positioning with a tilt range of +75° to -10°. The K1W220B can be installed to any standard wall or integrated into most slatwall systems using OFBLU or OFBU accessory brackets. For specialized furniture installations, it is compatible with OFB Furniture Brackets. This TAA-compliant mounting solution also supports tool-free cable management covers to maintain a clean professional appearance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 20.67 in (52.5 cm) |
| Shipping Dimensions | 35.5" x 10.5" x 10.5" (901.7 x 266.7 x 266.7 mm) |
| Shipping Weight | 17 lbs (7.7 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-TabletopWall |
All other specifications 12
| Color | Black |
| Compatible With OFB Furniture Brackets | Yes |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height Assist |
| TAA Compliant | Yes |
| Tilt | +75°-10° |
| UPC | 841872160436 |
| Certifications | TAA |
Resources
You'll need these with it

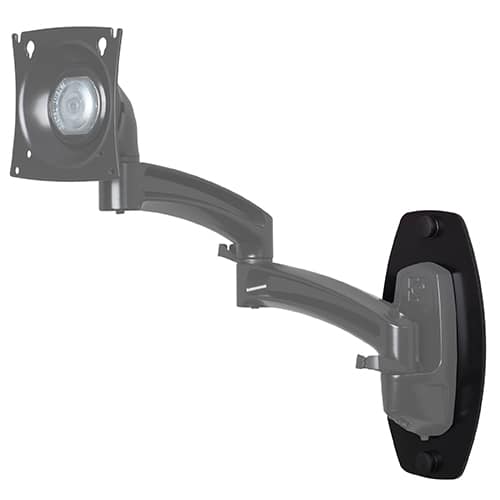

Kontour™ Metal Stud Accessory
KRAMSB$92.00
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
M-Series Universal Interface Bracket-MSBUB
MSBUB$153.60
M-Series VESA Interface Bracket-MSBVB
MSBVB$125.60
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Verified fitment
Questions about this part
Will the K1W220B fit my monitors?
This mount is verified for 6,717 display models from 228 manufacturers. It fits displays between 10" and 30" (254mm–762mm), including models such as the Samsung 150MP, LG 15LA6R, and Toshiba 14DL74.
How much vertical and horizontal movement can I get?
The K1W220B offers 13" (330.2 mm) of dynamic height adjustment and a maximum extension of 20.67 in (52.5 cm).
Can I use this on a slatwall or office furniture?
Yes, this model is compatible with OFB Furniture Brackets and can be mounted to most slatwall products using an OFBLU or OFBU interface bracket.
Does this mount support portrait orientation?
Yes, the K1W220B is designed to support both Landscape and Portrait orientations for your dual-monitor setup.
What do I need for a complete installation?
The mount is TAA compliant and requires specific interface hardware for non-standard mounting; for example, use the KRAMSB for metal stud applications or MSBVB for VESA interface needs.
