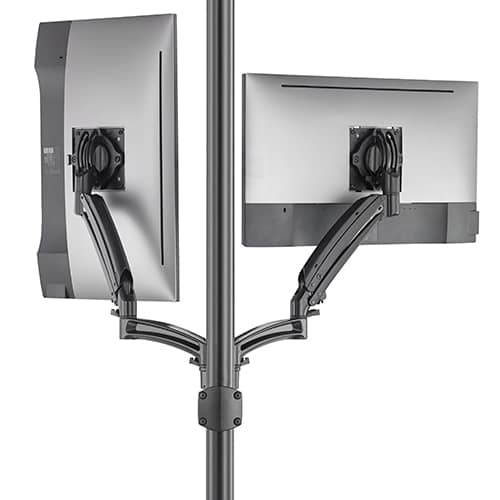

Kontour™ K1P Dynamic Pole Mount Reduced Height, 2 Monitors - K1P220BXRH
Dual monitor pole mount for 10"–30" displays, 13" dynamic height adjustment, and Centris™ Extreme Tilt technology
The Chief K1P220BXRH is a Kontour™ K1P Dynamic Height-Adjustable Pole Mount designed for dual-monitor workstations in office, healthcare, or public environments. This reduced-height version allows for precise ergonomic positioning through 13" (330.2 mm) of dynamic height adjustment using smooth motion gas-spring technology. It features two arm links to support two displays, providing flexibility for both landscape and portrait orientations. The Centris™ Extreme Tilt technology allows for effortless fingertip positioning, offering a tilt range of +75° to -10° for optimal viewing comfort. The mount is constructed from forged aluminum and is compatible with displays weighing between 5 and 25 lbs (2.3 - 11.3 kg). For installation, this unit clamps onto poles with a diameter range of 1.50" to 1.90" (38.1 mm - 48.3 mm). Note that the mounting pole is not included and must be purchased separately using Chief KTA pole accessories.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 20.21 in (51.3 cm) |
| Pole Diameter Range | 1.50" - 1.90" (38.1mm - 48.3 mm) |
| Shipping Dimensions | 35.5" x 10.5" x 10.5" (901.7 x 266.7 x 266.7 mm) |
| Shipping Weight | 14 lbs (6.4 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
All other specifications 11
| Application | Desk-TabletopPole |
| Color | Black |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | Yes |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | No |
| Tilt | +75°-10° |
| UPC | 841872171012 |
Resources
You'll need these with it
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Kontour™ KRA220 K1 and K2 Extension Arm, Black
KRA220B$50.40
Kontour™ KRA224 Dual Monitor Array Handle Accessory
KRA224B$34.40
J-Series Medium Interface Brackets-JSB210B
JSB210B$61.60
Kontour™ KRA223 Dual Monitor Array Accessory, Black
KRA223B$144.00
K1D, K1P, K1S and K1W Dual Monitor Upgrade Kit, Black
KRA227B$240.80
Questions about this part
Will the K1P220BXRH fit my monitors?
This mount is designed for two displays with typical screen sizes ranging from 10" to 30" (254mm-762mm) and a weight capacity of 5 - 25 lbs (2.3 - 11.3 kg) per arm. It is VESA 75 x 75 mm and 100 x 100 mm compliant.
Does this include the mounting pole?
No, the pole is not included with the K1P220BXRH. You will need to purchase Chief KTA pole accessories separately to complete the installation.
What is the tilt range of these monitor arms?
The Centris™ Extreme Tilt technology provides a range of +75° to -10° for effortless fingertip monitor positioning.
Can I mount my monitors in portrait orientation?
Yes, the K1P220BXRH supports both landscape and portrait orientations for dual-monitor setups.
What do I need for the submittal process?
Technical drawings and CAD files are available, including the K1P220XRH K1PSeries Installation Manual and the K1P220XRH Technical Drawing (PDF).
