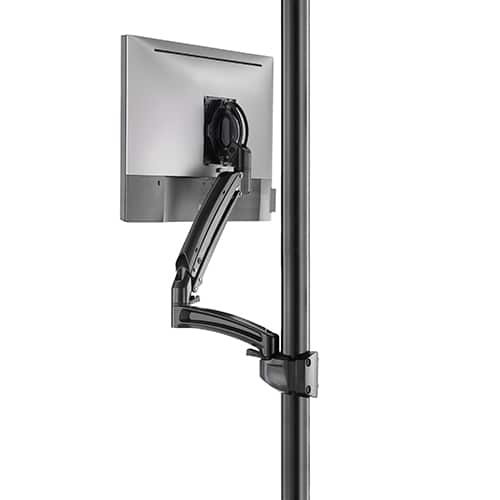

Kontour™ K1P Dynamic Pole Mount Reduced Height, 1 Monitor - K1P120BXRH
Dynamic height-adjustable pole mount for 10-30" displays, supporting 5-25 lbs with extreme tilt capability
The Chief K1P120BXRH is a Kontour™ K1P Dynamic Height-Adjustable Pole Mount designed to optimize ergonomic positioning in offices, healthcare facilities, and public spaces. This single-display workstation mount features a 13" (330.2 mm) dynamic height adjustment range powered by smooth-motion gas-spring technology. It supports displays ranging from 10" to 30" (254mm-762mm) with a weight capacity between 5 lbs (2.3 kg) and 25 lbs (11.3 kg). This reduced-height model is compatible with poles featuring a 1.50" - 1.90" (38.1mm - 48.3 mm) diameter, such as Chief KTA pole accessories. The integrated Centris™ Extreme Tilt technology allows for effortless positioning with a tilt range of +75° to -10°, making it suitable for both sitting and standing environments. Users can adjust the monitor's orientation between landscape and portrait modes and utilize the tool-free cable management covers for a professional finish. This mount is VESA® 75 x 75 mm and 100 x 100 mm compliant, though various interface brackets are available for non-VESA displays.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 19.71 in (50.1 cm) |
| Pole Diameter Range | 1.50" - 1.90" (38.1mm - 48.3 mm) |
| Shipping Dimensions | 33.75" x 17.5" x 6.5" (857.3 x 444.5 x 165.1 mm) |
| Shipping Weight | 11.5 lbs (5.2 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
All other specifications 11
| Application | Desk-TabletopPole |
| Color | Black |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Reduced Height | Yes |
| Special Features | Extreme Tilt TechnologyHeight Assist |
| TAA Compliant | No |
| Tilt | +75°-10° |
| UPC | 841872170992 |
Resources
You'll need these with it
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Kontour™ KRA220 K1 and K2 Extension Arm, Black
KRA220B$50.40
Kontour™ KRA224 Dual Monitor Array Handle Accessory
KRA224B$34.40
J-Series Medium Interface Brackets-JSB210B
JSB210B$61.60
Kontour™ KRA223 Dual Monitor Array Accessory, Black
KRA223B$144.00
K1D, K1P, K1S and K1W Dual Monitor Upgrade Kit, Black
KRA227B$240.80
Questions about this part
Will the K1P120BXRH fit my monitor?
This mount is designed for 10" to 30" (254mm-762mm) displays. It is VESA 75 x 75 mm and 100 x 100 mm compliant; for non-VESA monitors, interface brackets like the FSB4073 are required.
Does this mount include the mounting pole?
No, the pole is not included. You will need to purchase Chief KTA pole accessories to complete the installation.
What is the weight capacity for the K1P120BXRH?
The K1P120BXRH supports a weight capacity of 5 to 25 lbs (2.3 - 11.3 kg), which is sufficient for most single-monitor setups, including many All-in-One displays.
Can I adjust the height once the monitor is mounted?
Yes, the mount provides 13" (330.2 mm) of dynamic height adjustment using gas-spring technology and allows for infinite manual height adjustment on the pole.
How much tilt adjustment is available?
The Centris™ Extreme Tilt technology provides a range of +75° to -10° to allow for optimal viewing comfort in different workspace configurations.
