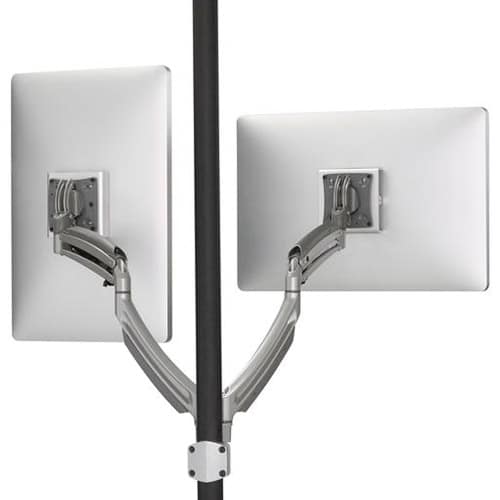

Kontour™ K1P Dynamic Pole Mount, 2 Monitors - K1P220S
Dynamic dual monitor pole mount for 10" to 30" displays, featuring 13" of height adjustment and Centris Extreme Tilt technology
The Chief K1P220S is a Kontour™ K1P Dynamic Height-Adjustable Pole Mount designed to hold two monitors in a dual-display configuration. This workstation mount provides 13" (330.2 mm) of dynamic height adjustment via smooth motion gas-spring technology, allowing users to transition between sitting and standing positions. The arms feature Chief's patented Centris™ Extreme Tilt technology, providing an adjustable range of +75° to -10° for precise ergonomic positioning. Designed for versatility, the arms can be oriented in either landscape or portrait modes to suit specific workspace requirements. This model is TAA compliant and features a silver finish with forged aluminum arms. To utilize the full range of the dynamic height adjustment, the K1P220S requires a separate pole, which is available through Chief KTA pole accessories. The system is VESA 75 x 75 mm and 100 x 100 mm compliant, though specific interface brackets can be used for non-VESA displays.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 20.07 in (51 cm) |
| Pole Diameter Range | 1.50" - 1.90" (38.1mm - 48.3 mm) |
| Shipping Dimensions | 35.5" x 10.5" x 10.5" (901.7 x 266.7 x 266.7 mm) |
| Shipping Weight | 17 lbs (7.7 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
All other specifications 12
| Application | Desk-TabletopPole |
| Color | Silver |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | Yes |
| Tilt | +75°-10° |
| UPC | 841872160306 |
| Certifications | TAA |
Resources
You'll need these with it
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Kontour™ KRA220 K1 and K2 Extension Arm, Black
KRA220B$50.40
Kontour™ KRA224 Dual Monitor Array Handle Accessory
KRA224B$34.40
J-Series Medium Interface Brackets-JSB210B
JSB210B$61.60
Kontour™ KRA223 Dual Monitor Array Accessory, Black
KRA223B$144.00
K1D, K1P, K1S and K1W Dual Monitor Upgrade Kit, Black
KRA227B$240.80
Verified fitment
Questions about this part
Will the K1P220S fit my specific monitor?
This mount is verified against 6,448 display models from 226 manufacturers. Examples of compatible displays include Samsung 150MP, LG 15LC1, Philips 14L4521, Dell 1707FP, and Toshiba 14VL33.
Does this mount include the mounting pole?
No, the K1P220S does not include the pole. You must purchase Chief KTA pole accessories separately to complete the installation.
What kind of VESA patterns are compatible?
The K1P220S is VESA 75 x 75 mm and 100 x 100 mm compliant. For non-VESA compliant displays, you will need to purchase a specific interface bracket, such as the FSB4243B.
How much height adjustment can I achieve?
The gas-spring technology allows for 13" (330.2 mm) of dynamic height adjustment. Additionally, you can achieve infinite manual height adjustment by moving the arms along the pole.
What is the weight limit for the monitors?
The mount supports a weight capacity of 5 to 25 lbs (2.3 to 11.3 kg) for each of the two displays.
