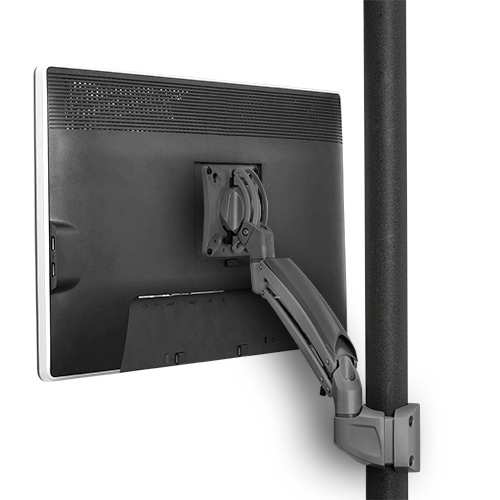

Kontour™ K1P Dynamic Pole Mount, 1 Monitor-K1P110B
Single monitor pole mount for 10"-30" displays, 5-25 lbs capacity, with 13" of dynamic height adjustment
The Chief K1P110B is a Kontour™ K1P Dynamic Height-Adjustable Pole Mount designed to optimize ergonomic positioning in office, healthcare, and public environments. This single-display workstation mount allows for 13" (330.2 mm) of dynamic height adjustment via smooth-motion gas-spring technology. It features patented Centris™ Extreme Tilt technology, providing an effortless tilt range of +75° to -10° for comfortable viewing in both seated and standing positions. The arm clamps easily to poles with a diameter range of 1.50" to 1.90" (38.1 mm - 48.3 mm). This TAA compliant mount supports displays from 10" to 30" (254 mm - 762 mm) with a weight capacity of 5 to 25 lbs (2.3 - 11.3 kg). It is compatible with VESA 75 x 75 mm and 100 x 100 mm patterns, and provides tool-free cable management covers for a professional installation finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 12.69 yd (11.6 m) |
| Pole Diameter Range | 1.50" - 1.90" (38.1mm - 48.3 mm) |
| Shipping Dimensions | 25.75" x 9.75" x 6.5"(654.1 x 247.7 x 165.1 mm) |
| Shipping Weight | 5.95 lbs (2.7 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
All other specifications 12
| Application | Desk-TabletopPole |
| Color | Black |
| Dual Array | No |
| Number of Arm Links | 1 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height Assist |
| TAA Compliant | Yes |
| Tilt | +75°-10° |
| UPC | 841872160252 |
| Certifications | TAA |
Resources
You'll need these with it
DMP Mount - Pole
PAC260P$86.40
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Kontour™ KRA220 K1 and K2 Extension Arm, Black
KRA220B$50.40

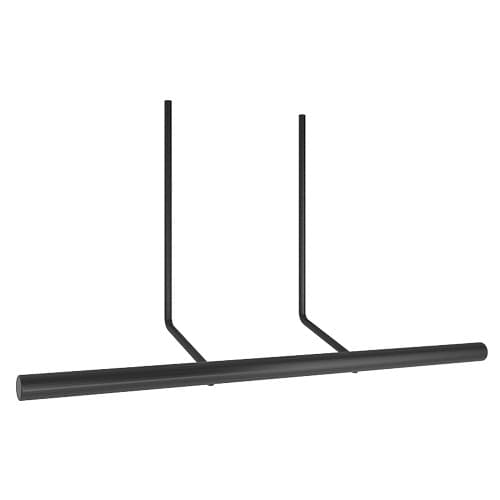

Kontour™ KRA224 Dual Monitor Array Handle Accessory
KRA224B$34.40
J-Series Medium Interface Brackets-JSB210B
JSB210B$61.60
Kontour™ KRA223 Dual Monitor Array Accessory, Black
KRA223B$144.00

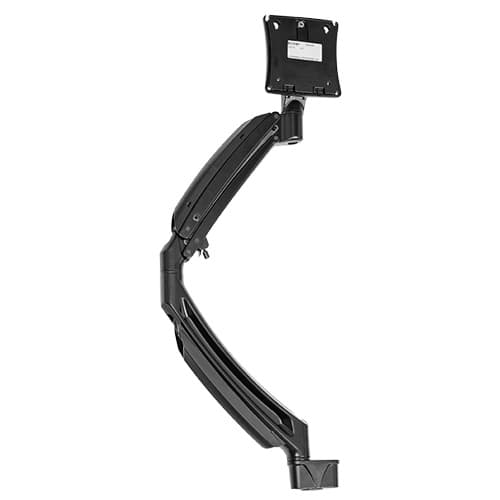

K1D, K1P, K1S and K1W Dual Monitor Upgrade Kit, Black
KRA227B$240.80
Verified fitment
Questions about this part
Does the K1P110B include the mounting pole?
No, this SKU is the arm only; you must purchase Chief KTA Pole Accessories separately to complete the installation.
Will this mount fit my Samsung or LG monitor?
Yes, it is verified against 6,745 display models from 213 manufacturers, including Samsung 150MP1 and LG 15LA6R.
What VESA patterns are supported by the K1P110B?
The mount is compliant with VESA 75 x 75 mm and 100 x 100 mm; additional interface brackets are required for non-VESA displays.
Can I use this mount in portrait orientation?
Yes, the K1P110B supports both Landscape and Portrait orientations for versatile workspace configurations.
What tools are needed for the K1P110B installation?
Review the K1PSeries Installation Manual for a complete list of required installation items for this series.
