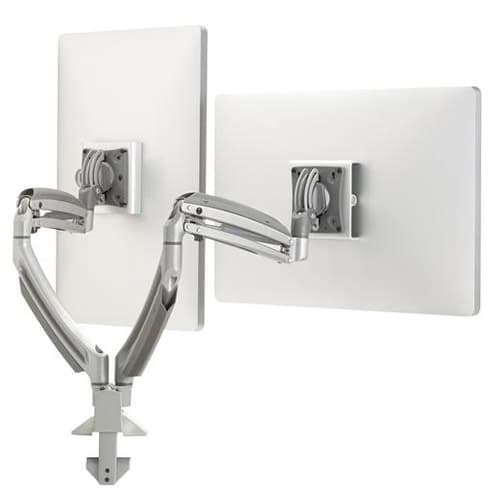

Kontour™ K1D220S with Dell® Quick-Connect Interfaces - K1D220SXDL
Dual monitor desk mount with Dell® Quick-Connect interfaces, 13" (330 mm) height adjustment, and 5–25 lbs capacity per arm
The Chief K1D220SXDL Kontour™ K1D Dynamic Height-Adjustable Desk Mount is a specialized workstation solution designed for dual-display setups. This model comes with two KSA1250 Dell UltraSharp Interface Brackets pre-installed, allowing for rapid mounting and maintenance of compatible Dell monitors. The system features a 13" (330 mm) dynamic height adjustment range facilitated by smooth-motion gas-spring technology, allowing users to transition between sitting and standing positions. Each arm supports a weight capacity of 5–25 lbs (2.3–11.3 kg) and accommodates displays ranging from 10" to 32" (254mm – 813mm). The Centris™ Extreme Tilt technology provides a tilt range of +75° to -10°, ensuring optimal viewing angles for both landscape and portrait orientations. This TAA-compliant mount can be installed via a desk clamp, a standard grommet hole, or a through-bolt using the included kit. The silver forged aluminum arms include tool-free cable management covers to maintain a clean workspace.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 21.67 in (55 cm) |
| Minimum Depth | 2.45 in (6.2 cm) |
| Shipping Dimensions | 35.5" x 10.5" x 10.5" (901.7 x 266.7 x 266.7 mm) |
| Shipping Weight | 18 lbs (8.2 kg) |
| Typical Screen Size | 10 - 32" (254mm - 813mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
All other specifications 14
| Color | Silver |
| Dell Quick-Connect | Yes |
| Desktop Thickness Range | 0.5" - 2.5" (13mm - 63 mm) |
| Dual Array | No |
| Mounting Method | Desk Mount |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | Yes |
| Tilt | +75°-10° |
| UPC | 841872160221 |
| Certifications | TAA |
Resources
You'll need these with it
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension-PWRUB
PWRUB$649.60
Questions about this part
Will the K1D220SXDL fit my Dell monitors?
This SKU includes two KSA1250 Dell UltraSharp Interface Brackets pre-installed, making it ready for compatible Dell Quick-Connect displays.
What is the maximum height and tilt adjustment for the K1D220SXDL?
The mount provides 13" (330 mm) of dynamic height adjustment and a tilt range of +75° to -10° via Centris™ Extreme Tilt technology.
What mounting hardware is needed for installation?
The K1D220SXDL can be mounted via a desk clamp, a standard grommet hole, or a through-bolt using the kit included in the package.
How thick can my desk be for this mount?
The desk mount is compatible with desktop thicknesses ranging from 0.5" to 2.5" (13mm – 63 mm).
Does this mount support portrait orientation?
Yes, the arms allow for both landscape and portrait screen orientations to suit your specific workstation needs.
