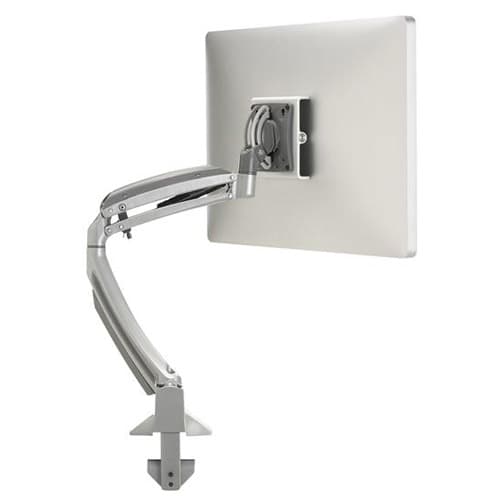

Kontour™ K1D120S with Dell® Quick-Connect Interface
Gas-spring desk mount for 10-38" displays, 5-25 lbs capacity, featuring integrated Dell Quick-Connect interface
The Chief K1D120SXDL is a Kontour™ K1D Dynamic Height-Adjustable Desk Mount specifically configured for Dell systems. This silver-finished workstation mount features a pre-installed KSA1250 Dell® Interface Bracket, enabling a quick-release connection for compatible Dell monitors. Using smooth motion gas-spring technology, the single-arm system provides 13" (330 mm) of dynamic height adjustment to help users achieve an ergonomic workstation. The arm offers a maximum extension of 20.67 in (52.5 cm) and accommodates displays from 10" to 38" with a weight capacity ranging from 5 to 25 lbs (2.3 to 11.3 kg). Through patented Centris™ Extreme Tilt technology, the monitor can be positioned with +75° to -10° of tilt. For clean installations, the mount includes tool-free cable management covers and supports both landscape and portrait orientations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 20.67 in (52.5 cm) |
| Shipping Dimensions | 33.75" x 17.5" x 6.5" (857.3 x 444.5 x 165.1 mm) |
| Shipping Weight | 11.7 lbs (5.3 kg) |
| Typical Screen Size | 10" - 38" (254mm - 965mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
| Color | Silver |
All other specifications 13
| Dell Quick-Connect | Yes |
| Desktop Thickness Range | 0.5" - 2.5" (13mm - 63 mm) |
| Dual Array | No |
| Mounting Method | Desk Mount |
| Number of Arm Links | 2 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Extreme Tilt TechnologyHeight Assist |
| TAA Compliant | Yes |
| Tilt | +75°-10° |
| UPC | 841872160177 |
| Certifications | TAA |
Resources
You'll need these with it
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension-PWRUB
PWRUB$649.60
Questions about this part
Will the K1D120SXDL fit my Dell monitor?
This SKU includes the KSA1250 Dell® Interface Bracket pre-installed, specifically designed for Dell Quick-Connect compatibility with compatible monitor models.
What is the weight limit for this monitor arm?
The Kontour K1D series supports a weight capacity of 5-25 lbs (2.3-11.3 kg), making it suitable for many All-in-One and lightweight monitors.
How much vertical movement does the gas spring provide?
The gas-spring technology allows for 13" (330 mm) of dynamic height adjustment to facilitate an ergonomic sitting or standing position.
Can I mount this to a desk with a specific thickness?
Yes, the mounting hardware accommodates desktop thicknesses ranging from 0.5" to 2.5" (13mm to 63 mm) via clamp, grommet, or bolt-through methods.
Which installation documents are available for submittals?
The K1D Series Installation Manual and technical/CAD drawings are available for professional submittal and installation planning.
