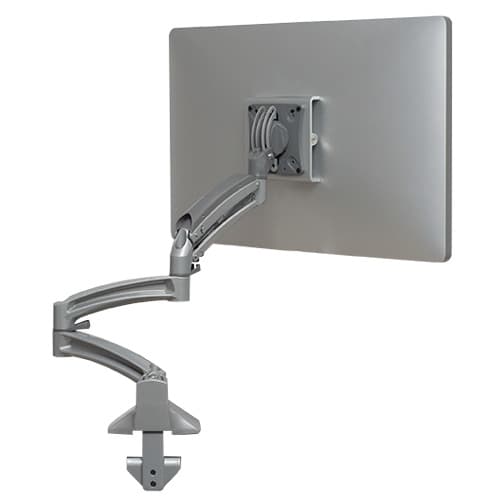

Kontour™ K1D Dynamic Desk Mount, Extended Reach - K1D130S
Gas-spring desk mount for 10"–38" displays, 5–10 lbs capacity, with +75°/-10° tilt and height adjustment
The Chief K1D130S is a Kontour™ K1D Dynamic Height-Adjustable Desk Mount designed to facilitate an ergonomic workstation in office, healthcare, or residential environments. This single-display mount provides a 7.11" to 20.11" (181mm to 511mm) center-of-monitor height adjustment range through smooth gas-spring motion. The integrated Centris™ Extreme Tilt technology allows for effortless fingertip positioning with a tilt range of +75° to -10°. The silver forged aluminum arms support displays ranging from 10" to 38" (254mm to 965mm) with a weight capacity of 5 to 10 lbs (2.3 to 4.5 kg) per monitor. Installation is streamlined via a 3-step process and a quick-release monitor interface, with the base providing updated tool storage for convenience. For a clean aesthetic, the mount features tool-free cable management covers. This TAA-compliant solution is designed for desktop or tabletop applications, supporting both landscape and portrait orientations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 7.11" - 20.11" (181mm - 511 mm) center of monitor height range |
| Minimum Depth | 2.45 in (6.2 cm) |
| Shipping Dimensions | 33.75" x 17.5" x 6.5" (857.3 x 444.5 x 165.1 mm) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Typical Screen Size | 10" - 38" (254mm - 965mm) |
| Weight Capacity | 5 - 10 lbs (2.3 - 4.5 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
All other specifications 14
| Color | Silver |
| Dell Quick-Connect | No |
| Desktop Thickness Range | 0.5" - 2.5" (13mm - 63 mm) |
| Dual Array | No |
| Mounting Method | Desk Mount |
| Number of Arm Links | 3 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height Assist |
| TAA Compliant | Yes |
| Tilt | +75°-10° |
| UPC | 841872163123 |
| Certifications | TAA |
Resources
You'll need these with it
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension-PWRUB
PWRUB$649.60
Verified fitment
Questions about this part
Will the K1D130S fit my display?
This mount is verified against 976 display models from 50 manufacturers. Examples of compatible displays include Samsung C32F391FW, LG 26LT380H, and VIZIO D32fG4.
How much weight can this mount support?
The K1D130S supports a weight capacity of 5 to 10 lbs (2.3 to 4.5 kg) per monitor.
What desktop thickness is required for installation?
The mounting hardware accommodates a desktop thickness range of 0.5" to 2.5" (13mm to 63 mm).
How is the monitor height adjusted?
The mount utilizes gas-spring technology to provide a dynamic height adjustment range of 7.11" to 20.11" (181mm to 511mm) relative to the monitor center.
What installation hardware is included for desk mounting?
The mount can be installed using the included kit for edge clamping, a standard grommet hole, or a through-bolt mounting method.
