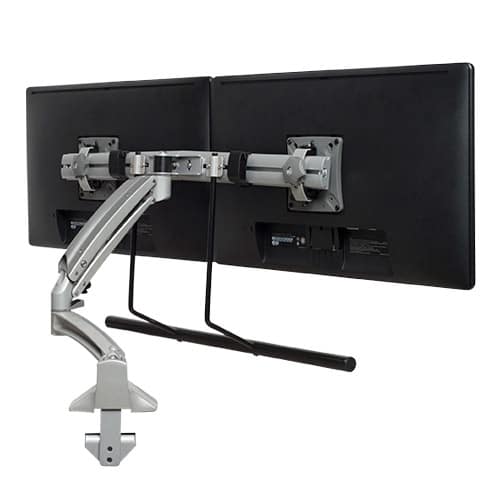

Kontour™ K1D Dynamic Desk Mount, Dual Monitor Array, Reduced Height - K1D22HSXRH
Dual monitor workstation mount for 10"–24" displays with dynamic height adjustment and a silver finish
The Chief K1D22HSXRH is a Kontour™ K1D Dynamic Height-Adjustable Desk Mount designed to support a dual monitor array in a 2x1 configuration. This reduced height model is specifically engineered for smaller displays, accommodating a typical screen size range of 10" to 24" diagonals. The arms utilize smooth motion gas-spring technology to provide a dynamic height adjustment range of 1.78" to 14.78" (45–375 mm) relative to the monitor center. This allows users to easily transition between sitting and standing positions for improved ergonomics. The mount supports an equipment width range of up to 24.9" and offers a maximum extension of 22.17 in (56.3 cm). For installation, the system can be secured via a desk clamp, a standard grommet hole, or a through-bolt method using the included kit. The silver-finished forged aluminum arms provide a stable, professional aesthetic for office, healthcare, or home environments. This TAA-compliant solution allows for both landscape and portrait orientations to suit diverse workstation needs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 1.78" - 14.78" (45 - 375 mm) center of monitor height range |
| Equipment Width Range | Up to 24.9" |
| Maximum Extension | 22.17 in (56.3 cm) |
| Minimum Depth | 4.3 in (10.9 cm) |
| Shipping Dimensions | 30" x 14.5" x 8" (762 x 368.3 x 203.2 mm) |
| Shipping Weight | 20.5 lbs (9.3 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 2 - 9 lbs (0.9 - 4.1 kg) |
All other specifications 17
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
| Array Configuration | 2x1 |
| Color | Silver |
| Dell Quick-Connect | No |
| Desktop Thickness Range | 0.5" - 2.5" (13mm - 63 mm) |
| Dual Array | Yes |
| Mounting Method | Desk Mount |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | Yes |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | Yes |
| Tilt | +/- 10° |
| UPC | 841872163161 |
| Certifications | TAA |
Resources
You'll need these with it
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension-PWRUB
PWRUB$649.60
Verified fitment
Questions about this part
Will this mount work with my specific monitors?
The K1D22HSXRH is verified against 840 display models from 62 manufacturers. Examples of compatible devices include the Samsung C27F398FWN, LG 19EN33S, and Acer G206HQL.
What mounting options are available for this desk mount?
This unit can be installed using a desk clamp, a standard grommet hole, or a through-bolt method using the provided installation kit.
Can I change the orientation of my displays?
Yes, the arms allow for both landscape and portrait orientations to optimize your workspace ergonomics.
What is the weight limit per monitor for this dual mount?
Each monitor in the array is supported by a weight capacity of 2–9 lbs (0.9–4.1 kg) per arm.
Is there a document available for submittals and installation?
Yes, technical drawings and the K1D Series Installation Manual are available for your project documentation needs.
