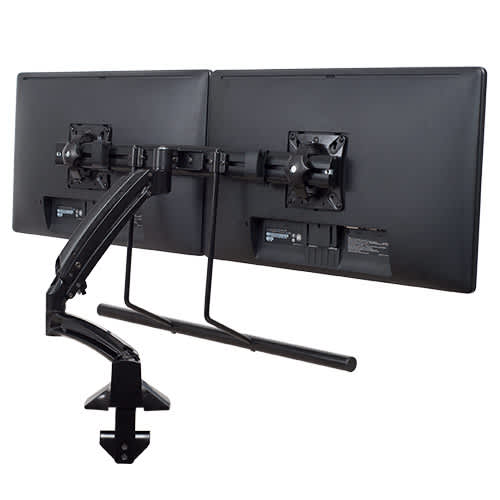

Kontour™ K1D Dynamic Desk Mount, Dual Monitor Array, Reduced Height - K1D22HBXRH
Dual monitor workstation mount for 10"-24" displays, features 1.78" to 14.78" height adjustment and a reduced height profile
The Chief K1D22HBXRH is a Kontour™ K1D Dynamic Height-Adjustable Desk Mount designed for dual monitor arrays in a 2x1 configuration. This reduced height model is engineered for professional workstations, healthcare facilities, and home offices where optimizing ergonomic space is critical. Each arm utilizes smooth motion gas-spring technology to provide dynamic height adjustment between 1.78" and 14.78" (45 - 375 mm) relative to the monitor center. The system supports two displays with a typical screen size range of 10" - 24" (254mm - 609.6 mm) diagonals and an equipment width range of up to 24.9". Users can achieve customized viewing angles through extension, height adjustment, swivel, and tilt capabilities, with tilt reaching +/- 10°. This TAA-compliant mount facilitates a clean workspace with tool-free cable management covers and provides flexible installation via a desk clamp, grommet, or bolt hole. The array can be configured in either landscape or portrait orientation to suit specific user workflows.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 1.78" - 14.78" (45 - 375 mm) center of monitor height range |
| Equipment Width Range | Up to 24.9" |
| Maximum Extension | 22.17 in (56.3 cm) |
| Minimum Depth | 4.3 in (10.9 cm) |
| Shipping Dimensions | 30" x 14.5" x 8" (762 x 368.3 x 203.2 mm) |
| Shipping Weight | 20.5 lbs (9.3 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 2 - 9 lbs (0.9 - 4.1 kg) |
All other specifications 17
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
| Array Configuration | 2x1 |
| Color | Black |
| Dell Quick-Connect | No |
| Desktop Thickness Range | 0.5" - 2.5" (13mm - 63 mm) |
| Dual Array | Yes |
| Mounting Method | Desk Mount |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | Yes |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | Yes |
| Tilt | +/- 10° |
| UPC | 841872163154 |
| Certifications | TAA |
Resources
You'll need these with it
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension-PWRUB
PWRUB$649.60
Verified fitment
Questions about this part
Will the K1D22HBXRH fit my monitors?
This mount is verified for 61 manufacturers and 757 device models, including LG Electronics 19EN33SB, Samsung C24FG73, Philips 150B4AS, and Panasonic BTL1500.
How much weight can each monitor weigh?
Each monitor in the dual array must be between 2 - 9 lbs (0.9 - 4.1 kg) to maintain the intended height adjustment functionality.
What kind of desk thickness is required for the clamp?
The desk mount accepts a desktop thickness range of 0.5" to 2.5" (13mm - 63 mm).
Can I change the monitor orientation?
Yes, the K1D22HBXRH allows you to position the displays in either landscape or portrait orientation.
What do I need for the submittal process?
Technical drawings are available in PDF format, and CAD drawings can be downloaded in .dwg format for planning purposes.
