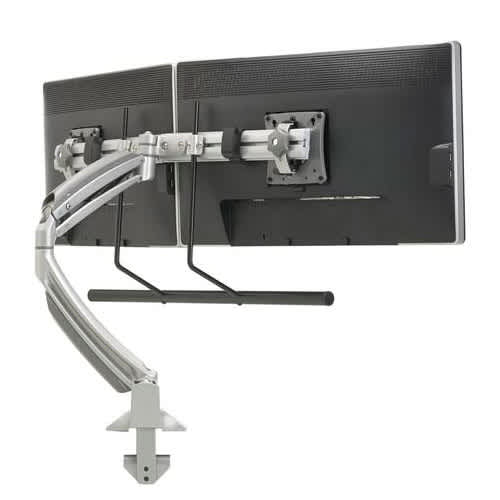

Kontour™ K1D Dynamic Desk Clamp Mount, Dual Monitor Array - K1D22HS
Dual monitor array desk clamp mount for 10"-24" displays, featuring height-adjustable gas-spring arms and a silver finish
The Chief K1D22HS Kontour K1D Dynamic Height-Adjustable Desk Clamp Mount is a dual monitor workstation solution designed for office, healthcare, or home environments. This 2x1 array configuration supports two displays in either landscape or portrait orientation, making it a versatile choice for complex multi-monitor setups. The system utilizes smooth motion gas-spring technology to provide 13" (330 mm) of dynamic height adjustment, allowing users to reposition their screens easily. Each arm features Centris Extreme Tilt technology, providing a tilt range of +75° to -10° for optimal viewing ergonomics. The silver-finished arms are constructed from forged aluminum and include tool-free cable management covers to maintain a professional appearance. This TAA compliant mount attaches to desktops with a thickness between 0.5" (13 mm) and 2.5" (63 mm). Each individual monitor can support a weight capacity of 2 - 9 lbs (0.9 - 4.1 kg), accommodating equipment widths up to 24.9".
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Width Range | Up to 24.9" |
| Minimum Depth | 4.3 in (10.9 cm) |
| Shipping Dimensions | 30" x 14.5" x 8" (762 x 368.3 x 203.2 mm) |
| Shipping Weight | 20.76 lbs (9.4 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 2 - 9 lbs (0.9 - 4.1 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
All other specifications 15
| Array Configuration | 2x1 |
| Color | Silver |
| Dell Quick-Connect | No |
| Desktop Thickness Range | 0.5" - 2.5" (13mm - 63 mm) |
| Dual Array | Yes |
| Mounting Method | Desk Mount |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | Yes |
| Tilt | +/- 10° |
| UPC | 841872160245 |
| Certifications | TAA |
Resources
You'll need these with it
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension-PWRUB
PWRUB$649.60
Verified fitment
Questions about this part
Will the K1D22HS fit my monitors?
This mount is verified against 752 display models from 60 manufacturers, including Samsung C24FG73, LG 19EN33T, and Philips 150B4AG for displays in the 10"-24" range.
How do I attach this to my desk?
The K1D22HS can be secured as a desk clamp to the edge of a surface or through a standard grommet or bolt hole using the included mounting kit.
What is the weight limit for each monitor?
The weight capacity is 2 - 9 lbs (0.9 - 4.1 kg) per monitor, allowing for a total capacity of up to 18 lbs across the dual array.
Can I mount my monitors in portrait orientation?
Yes, the K1D22HS supports both landscape and portrait orientations for both displays in the array.
What do I need for submittals and installation?
You can access the K1D Series Installation Manual for setup guidance or use the K1D22H Technical Drawing for detailed dimensions in your submittal.
