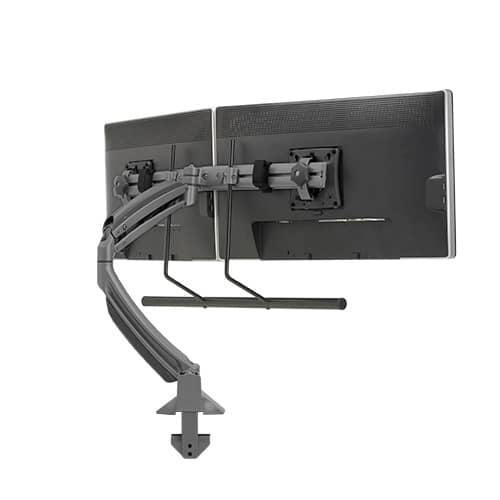

Kontour™ K1D Dynamic Desk Clamp Mount, Dual Monitor Array - K1D22HB
Dual monitor array desk clamp mount for 10" - 24" displays, supporting up to 9 lbs per monitor with dynamic height adjustment
The Chief K1D22HB is a Kontour™ K1D Dynamic Height-Adjustable Desk Clamp Mount designed for dual monitor arrays in 2x1 configurations. This workstation solution facilitates an ergonomic workspace by floating two displays above the work surface. It is built with two arm links providing a maximum extension of 21.2 in (53.9 cm) and a minimum depth of 4.3 in (10.9 cm). The system accommodates displays with a typical screen size of 10" - 24" (254mm - 609.6 mm) diagonals and an equipment width range of up to 24.9". Each monitor requires a weight between 2 - 9 lbs (0.9 - 4.1 kg). Utilizing smooth motion gas-spring technology, the mount provides 13" (330 mm) of dynamic height adjustment. The integrated Centris™ Extreme Tilt technology allows for an effortless tilt range of +75° to -10°. This TAA compliant mount can be installed on desktops with a thickness ranging from 0.5" to 2.5" (13mm - 63 mm). Users can choose between landscape or portrait orientation for their displays.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Width Range | Up to 24.9" |
| Maximum Extension | 21.2 in (53.9 cm) |
| Minimum Depth | 4.3 in (10.9 cm) |
| Shipping Dimensions | 30" x 14.5" x 8" (762 x 368.3 x 203.2 mm) |
| Shipping Weight | 20.76 lbs (9.4 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 2 - 9 lbs (0.9 - 4.1 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
All other specifications 16
| Application | Desk-Tabletop |
| Array Configuration | 2x1 |
| Color | Black |
| Dell Quick-Connect | No |
| Desktop Thickness Range | 0.5" - 2.5" (13mm - 63 mm) |
| Dual Array | Yes |
| Mounting Method | Desk Mount |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | Yes |
| Tilt | +/- 10° |
| UPC | 841872160238 |
| Certifications | TAA |
Resources
You'll need these with it
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension-PWRUB
PWRUB$649.60
Verified fitment
Questions about this part
Will the K1D22HB fit my specific monitor?
This mount is verified against 750 display models from 60 manufacturers, including Samsung C32F391FW, LG 19EN33T, and Philips 150B4AS.
How much weight can each monitor weigh?
Each monitor in the dual array must weigh between 2 lbs (0.9 kg) and 9 lbs (4.1 kg) for proper operation.
What mounting options are included with the K1D22HB?
The unit can be installed using the desk clamp for edges, a through-bolt via the included kit, or via a standard grommet hole.
Can I change the orientation of my monitors?
Yes, the K1D22HB supports both landscape and portrait orientations for the displays.
What tools are required for installation?
The K1D Series installation manual outlines the specific tools an installer will need to complete the setup.
