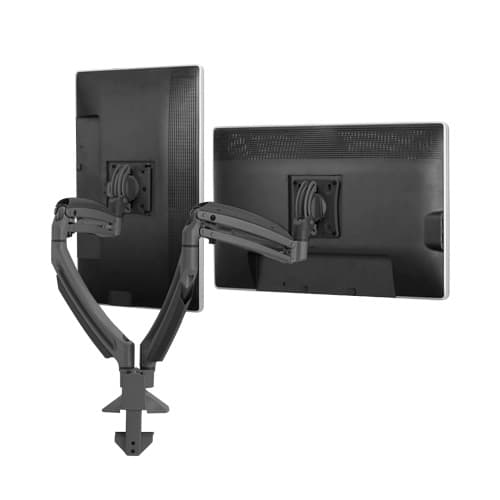

Kontour™ K1D Dynamic Desk Clamp Mount, 2 Monitors, TAA Compliant
Dual monitor desk clamp mount for 10–32" displays, 5–25 lbs capacity per arm, with dynamic height adjustment
The Chief K1D220B-G Kontour K1D Dynamic Height-Adjustable Desk Clamp Mount provides an ergonomic workstation solution for two monitors in office, healthcare, or home environments. This mounting system utilizes smooth motion gas-spring technology to provide 13" (330 mm) of dynamic height adjustment. Each arm supports displays ranging from 10" to 32" (254mm - 813mm) with a weight capacity of 5 lbs to 25 lbs (2.3 - 11.3 kg) per monitor. The system features patented Centris™ Extreme Tilt technology, allowing for effortless positioning with +75° to -10° of tilt. This K1D220B-G model is TAA compliant and features a black finish with two arm links. Installation is facilitated by a three-step process and a quick-release monitor interface, with the base providing integrated tool storage. For a clean professional appearance, the mount includes tool-free cable management covers. This series is available in both black and silver finishes to match your workspace.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 21.6 in (54.9 cm) |
| Minimum Depth | 2.45 in (6.2 cm) |
| Shipping Dimensions | 35.5" x 10.5" x 10.5" (901.7 x 266.7 x 266.7 mm) |
| Shipping Weight | 17.4 lbs (7.9 kg) |
| Typical Screen Size | 10 - 32" (254mm - 813mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
All other specifications 14
| Color | Black |
| Dell Quick-Connect | No |
| Desktop Thickness Range | 0.5" - 2.5" (13mm - 63 mm) |
| Dual Array | No |
| Mounting Method | Desk Mount |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | Yes |
| Tilt | +75°-10° |
| UPC | 841872172217 |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
KRA300B, Kontour™ Laptop Tray Accessory
KRA300B$88.00
Kontour™ KRA220 K1 and K2 Extension Arm, Black
KRA220B$50.40
Kontour™ KRA224 Dual Monitor Array Handle Accessory
KRA224B$34.40
Kontour™ KRA223 Dual Monitor Array Accessory, Black
KRA223B$144.00
Kontour™ KRA219 K1 and K2 Narrow-Gap Table Clamp Kit
KRA219B$34.40
Laptop & Tablet Tray, Silver
KRA300S$88.00

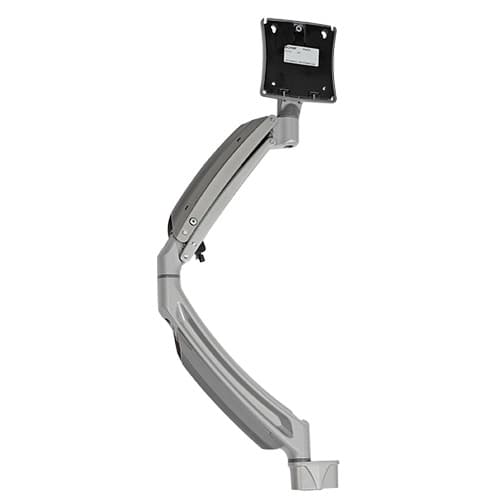

K1D, K1P, K1S and K1W Dual Monitor Upgrade Kit, Black
KRA227B$240.80
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80

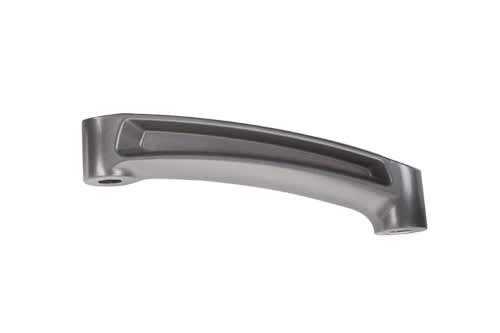

Kontour™ KRA220 K1 and K2 Extension Arm, Silver
KRA220S$50.40
Kontour™ KRA223 Dual Monitor Array Accessory, Silver
KRA223S$144.00
K1D, K1P, K1S and K1W Dual Monitor Upgrade Kit, Silver
KRA227S$240.80
Questions about this part
Will the K1D220B-G fit my specific monitors?
This mount is designed for 10" to 32" (254mm - 813mm) displays. The weight capacity is 5–25 lbs (2.3 - 11.3 kg) per monitor, which is suitable for many All-in-One and Apple displays.
What mounting hardware is required for installation?
The K1D220B-G clamps to the edge of a desk with a thickness between 0.5" and 2.5" (13mm - 63 mm). It can also be mounted through a standard grommet hole or via a bolt hole using the included kit.
How does this mount adjust for ergonomic positioning?
The arms provide 13" (330 mm) of dynamic height adjustment. Additionally, the Centris™ Extreme Tilt technology allows for tilt adjustments from +75° to -10°.
Can I add accessories to the Kontour K1D series?
Yes, you can add accessories like the KRA220B Kontour K1 and K2 Extension Arm, the KRA300B Laptop Tray, or the KSA1250B-2 Quick-Connect Interface for Dell monitors.
What is the difference between the K1D220B-G and its siblings?
The K1D220B-G is the black finish variant of this dual monitor clamp mount; a silver finish version is also available in the Kontour series.
