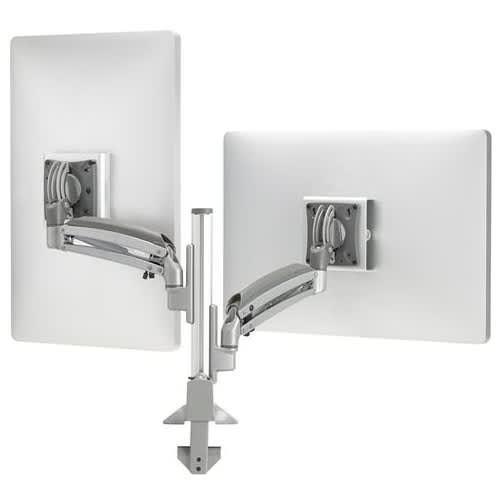

Kontour™ K1C210S with Steelcase® FrameOne™ Interface
Monitor arm kit with integrated Steelcase® FrameOne™ interface for 10–30" displays, 5–25 lbs capacity per monitor
The Chief K1C210SXF1 is a Kontour™ K1 monitor arm kit specifically engineered for the Steelcase® FrameOne™ office furniture system. This kit features a pre-installed Steelcase® FrameOne™ mounting adapter, which facilitates a faster and more efficient installation process for system integrators and facility managers. Designed for desk-tabletop applications, the single arm supports two displays in either landscape or portrait orientation. This kit provides significant ergonomic flexibility with a manual height adjustment range of 7 in (177.8 mm) and a maximum extension of 11.86 in (0.3 m). The arm's design allows for a minimum depth of 1.65 in (4.2 cm) from the mounting point, and it incorporates Extreme Tilt Technology and Height Assist to simplify positioning. Each monitor supported by this arm must fall within a typical screen size of 10" - 30" (254mm-762mm) and have a weight between 5 lbs (2.3 kg) and 25 lbs (11.3 kg). This TAA-compliant solution ensures compliance for government and enterprise projects requiring specific procurement standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Manual Height Adjustment | 7 in (177.8 mm) |
| Maximum Extension | 11.86 in (0.3 m) |
| Minimum Depth | 1.65 in (4.2 cm) |
| Shipping Dimensions | 26.25" x 24.75" x 6"(666.8 x 628.7 x 152.4 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Accessory Type | Interface Brackets |
All other specifications 11
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
| Color | Silver |
| Dual Array | No |
| Number of Arm Links | 1 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Special Features | Extreme Tilt TechnologyHeight AssistMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872160078 |
| Certifications | TAA |
Resources
You'll need these with it
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension-PWRUB
PWRUB$649.60
Questions about this part
Will this K1C210SXF1 mount work with Steelcase FrameOne furniture?
Yes, this SKU includes the pre-installed Steelcase® FrameOne™ mounting adapter required for direct integration with the FrameOne™ system.
What is the weight limit for each monitor on the K1C210SXF1?
Each monitor must weigh between 5 lbs (2.3 kg) and 25 lbs (11.3 kg) to fit within the arm's capacity.
Can I mount my monitors in portrait orientation with this kit?
Yes, the K1C210SXF1 supports both landscape and portrait orientations for the two supported displays.
What is the screen size compatibility for these arms?
The arms are designed for displays with a typical screen size range of 10" to 30" (254mm-762mm).
What technical documents are available for submittals?
You can access the K1C Series Installation Manual, a technical drawing, and a CAD drawing (dwg) for this product in the resources tab.
