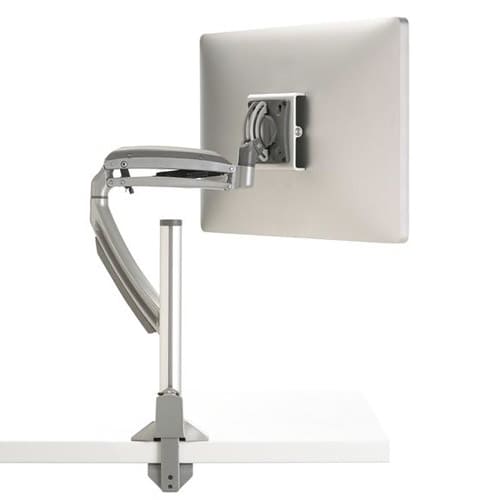

Kontour™ K1C120S with Steelcase® FrameOne™ Interface
Single monitor arm with Steelcase® FrameOne™ interface for 10"-30" displays, 5-25 lbs capacity, featuring height, tilt, swivel, and extension
The Chief K1C120SXF1 is a specialized Kontour™ K1 monitor arm kit designed specifically for the Steelcase® FrameOne™ office furniture system. This SKU features a pre-installed mounting adapter, allowing installers to achieve a fast and easy integration with FrameOne™ workstations without additional assembly steps. Designed for desk-tabletop applications, this single-display arm supports screens ranging from 10" to 30" (254mm-762mm) and carries a weight capacity of 5-25 lbs (2.3-11.3 kg). The arm utilizes Extreme Tilt Technology and a height-assist mechanism to provide fluid, ergonomic movement. Users can adjust the display via swivel, tilt, extension, and a 7 in (177.8 mm) manual height adjustment range. This TAA-compliant solution provides a 20.48 in (52 cm) maximum extension and maintains a minimum depth of 3.52 in (8.9 cm) when retracted. It is built for professionals requiring reliable workstation mounting in integrated office environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Manual Height Adjustment | 7 in (177.8 mm) |
| Maximum Extension | 20.48 in (52 cm) |
| Minimum Depth | 3.52 in (8.9 cm) |
| Shipping Dimensions | 33.75" x 17.5" x 6.5" (857.3 x 444.5 x 165.1 mm) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Accessory Type | Interface Brackets |
All other specifications 11
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
| Color | Silver |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Special Features | Extreme Tilt TechnologyHeight Assist |
| TAA Compliant | Yes |
| UPC | 841872160047 |
| Certifications | TAA |
Resources
You'll need these with it
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension-PWRUB
PWRUB$649.60
Questions about this part
Will this Chief K1C120SXF1 mount fit my Steelcase FrameOne system?
Yes, this specific SKU comes with a pre-installed Steelcase® FrameOne™ mounting adapter to facilitate direct installation to FrameOne™ furniture.
What monitor sizes and weights are compatible with the K1C120SXF1?
This arm supports a single monitor between 10" and 30" (254mm-762mm) with a weight capacity ranging from 5 to 25 lbs (2.3 to 11.3 kg).
Does the K1C120SXF1 allow for portrait or landscape orientation?
The arm provides full adjustability for both landscape and portrait orientations through its swivel and tilt capabilities.
How much manual height adjustment can I achieve?
The K1C120S provides a manual height adjustment range of 7 in (177.8 mm) to help position the display at the ideal eye level.
Can I use this with the Kontour Charging Hub?
The K1C120SXF1 is compatible with the Kontour™ Charging Hub (KPWR) to integrate power management into your workstation.
