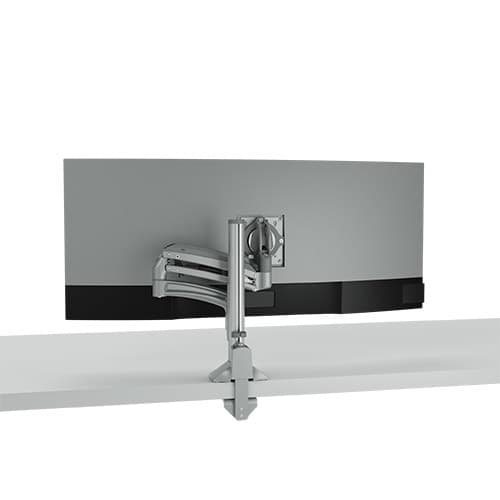

Kontour™ K1C Dynamic Column Mount, Reduced Height - K1C120SXRH
Dynamic height-adjustable column mount for 10" - 38" displays, 5 - 25 lbs capacity, featuring Centris™ Extreme Tilt
The Chief K1C120SXRH is a Kontour™ K1C Dynamic Height-Adjustable Column Mount designed for desk-tabletop applications. This reduced height model supports a single display ranging from 10" to 38" (254mm - 965mm) with a weight capacity of 5 - 25 lbs (2.3 - 11.3 kg). It provides a total height adjustment range of 20" (508 mm), which includes 13" (330 mm) of dynamic adjustment via gas-spring technology and 7" (178 mm) of manual adjustment on the column. The integrated Centris™ Extreme Tilt technology allows for effortless positioning with a tilt range of +75° to -10°. For installation flexibility, the base can be clamped to the edge of a desk, mounted through a standard grommet hole, or secured through a bolt hole using the included kit. This TAA-compliant mount features tool-free cable management covers and a quick-release monitor interface for efficient maintenance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 22.5 in (57.2 cm) |
| Minimum Depth | 2.45 in (6.2 cm) |
| Shipping Dimensions | 33.75" x 17.5" x 6.5" (857.3 x 444.5 x 165.1 mm) |
| Shipping Weight | 13.64 lbs (6.2 kg) |
| Typical Screen Size | 10" - 38" (254mm - 965mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
All other specifications 12
| Color | Silver |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Reduced Height | Yes |
| Special Features | Extreme Tilt TechnologyHeight Assist |
| TAA Compliant | Yes |
| Tilt | +75°-10° |
| UPC | 841872163048 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
KX K1 Monitor Interface Plate, Silver
KRA243S$32.00
Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension-PWRUB
PWRUB$649.60
Verified fitment
Questions about this part
Will this mount fit my specific display?
The K1C120SXRH is verified against 2,670 display models from 177 manufacturers, including Samsung 220TN, LG 20LA6R, and Dell 2408WFP.
How do I mount this to my workstation?
This mount allows for three attachment methods: clamping to the edge of a desk, mounting through a standard grommet hole, or through-bolt mounting with the included kit.
What is the weight and adjustment range for the K1C120SXRH?
It supports displays weighing 5 - 25 lbs (2.3 - 11.3 kg) and offers a total height adjustment of 20" (508 mm).
Does this mount include the necessary mounting hardware?
The unit features a quick-release monitor interface and includes tool storage in the base for convenient maintenance during installation.
What is the difference between this and the standard K1C mount?
The K1C120SXRH is the reduced height version of the Kontour K1C series, optimized for specific clearance requirements.
