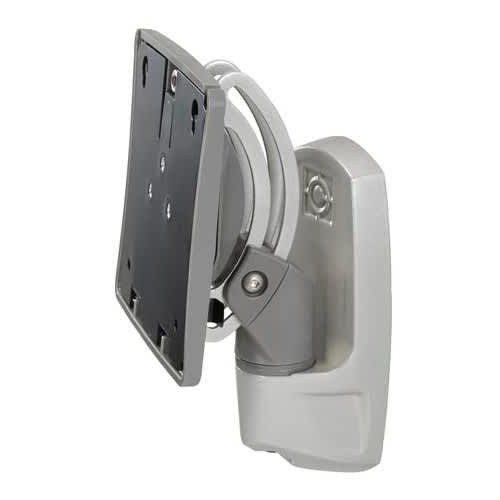

Kontour™ K0 Wall Mount with Extreme Tilt Pitch/Pivot - K0W100S
Wall mount for single displays with +75°, -10° extreme tilt and 40 lb capacity
The Chief K0W100S is a single-display wall mount designed for applications requiring a high degree of motion, such as security monitoring, public spaces, or office workstations. This model utilizes patented Centris™ Extreme Tilt technology, allowing for an effortless tilt range of +75° to -10°. The silver finish and sleek, low-profile design make it suitable for professional environments like back-kitchens or interactive kiosks. This mount is compatible with both landscape and portrait orientations, providing versatile viewing angles for various setups. The integrated post-installation leveling roll allows for fine adjustments to ensure the display is perfectly straight after mounting. For installers, the teardrop hole pattern simplifies the mounting process. This SKU is a silver-finished variant within the Kontour™ K0 series; the K0 series also includes a black finish option. The mount has a 40 lb (18.1 kg) weight capacity and maintains a minimum depth of 3.2 in (8.1 cm) from the wall.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Minimum Depth | 3.2 in (8.1 cm) |
| Shipping Dimensions | 11" x 7.75" x 6"(279.4 x 196.9 x 152.4 mm) |
| Shipping Weight | 5 lbs (2.3 kg) |
| Wall Stud Compatibility | Single Stud |
| Adjustability | SwivelTilt |
| Application | Desk-TabletopWall |
| Color | Silver |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| TAA Compliant | No |
| UPC | 841872159980 |
Resources
You'll need these with it
M-Series Universal Interface Bracket-MSBUB
MSBUB$153.60
M-Series VESA Interface Bracket-MSBVB
MSBVB$125.60
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
J-Series Medium Interface Brackets-JSB210B
JSB210B$61.60
50x50mm VESA Interface Bracket
FSB4073$47.20
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80
J-Series Universal Interface Bracket - JSBUB
JSBUB$61.60
M-Series Interface Brackets - MSB6364
MSB6364$125.60
Verified fitment
Questions about this part
Will the K0W100S fit my display?
It is verified against 7,339 display models from 258 manufacturers, including Samsung 150S, LG 17LX1R, Philips 10BDL3051T, NEC 1940CX, Dell 1704FPT, and Sharp 1T-C24FA2KF2NB.
What do I need if my monitor is not VESA compliant?
You can use an FSB interface bracket for non-VESA compliant monitors, such as the FSB1U or other specific Chief interface brackets.
How do I adjust the display after it is mounted?
The mount features a post-installation leveling roll for fine-tuning the angle and adjustable tension settings for both tilt and rotation.
What is the maximum weight capacity for this mount?
The K0W100S supports a maximum weight capacity of 40 lb (18.1 kg) for monitors, touch-panels, or all-in-one computers.
What are the mounting requirements for the wall?
This model is designed for single-stud compatibility and requires a wall plate for installation.
