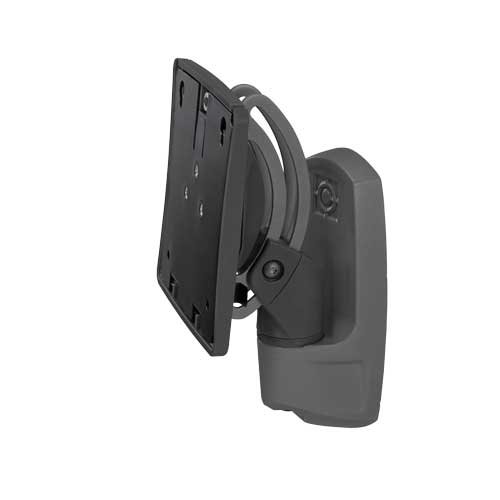

Kontour™ K0 Wall Mount with Extreme Tilt Pitch/Pivot - K0W100B
Single display wall mount with Centris Extreme Tilt (+75°, -10°) and 40 lb capacity
The Chief K0W100B is a single-display wall mount featuring patented Centris™ Extreme Tilt technology, providing a range of motion from +75° to -10°. This extreme tilt functionality allows for effortless fingertip positioning, making it a versatile solution for security monitors in back-kitchen environments, video monitoring in public spaces, or standard office use. The mount supports both landscape and portrait orientations and includes a post-installation leveling roll to ensure the display is perfectly aligned after mounting. This black-finish mount is designed for a low-profile, sleek aesthetic and is compatible with VESA® 75 x 75 mm and 100 x 100 mm patterns. For installations involving non-VESA compliant monitors, various FSB series interface brackets are available. The unit has a weight capacity of 40 lbs (18.1 kg) and is designed for single stud compatibility. This model is a black variant of the K0 series; the silver finish version is also available.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11" x 7.75" x 6"(279.4 x 196.9 x 152.4 mm) |
| Shipping Weight | 5 lbs (2.3 kg) |
| Wall Stud Compatibility | Single Stud |
| Adjustability | SwivelTilt |
| Application | Desk-TabletopWall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| TAA Compliant | No |
| UPC | 841872159959 |
Resources
You'll need these with it
M-Series Universal Interface Bracket-MSBUB
MSBUB$153.60
M-Series VESA Interface Bracket-MSBVB
MSBVB$125.60
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
J-Series Medium Interface Brackets-JSB210B
JSB210B$61.60
50x50mm VESA Interface Bracket
FSB4073$47.20
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80
J-Series Universal Interface Bracket - JSBUB
JSBUB$61.60
M-Series Interface Brackets - MSB6364
MSB6364$125.60
Verified fitment
Questions about this part
Will the K0W100B fit my specific monitor?
It is verified against 7,381 display models from 257 manufacturers, including Samsung 150MP, LG 17LS5R, Philips 10BDL3051T, and NEC 1740CX.
What mounting patterns are compatible with this mount?
This mount supports VESA® 75 x 75 mm and 100 x 100 mm patterns. For non-VESA displays, you can use FSB series interface brackets.
How much weight can I mount on the K0W100B?
The K0W100B has a maximum weight capacity of 40 lbs (18.1 kg), which is sufficient for larger monitors and all-in-one computers.
What do I need for a non-VESA display installation?
If your monitor is not VESA compliant, you will need an interface bracket such as the FSB1U or the MSBUB M-Series Universal Interface Bracket.
Can I adjust the display after it is mounted to the wall?
Yes, it features post-installation leveling rolls for alignment and adjustable tension for both tilt and rotation.
