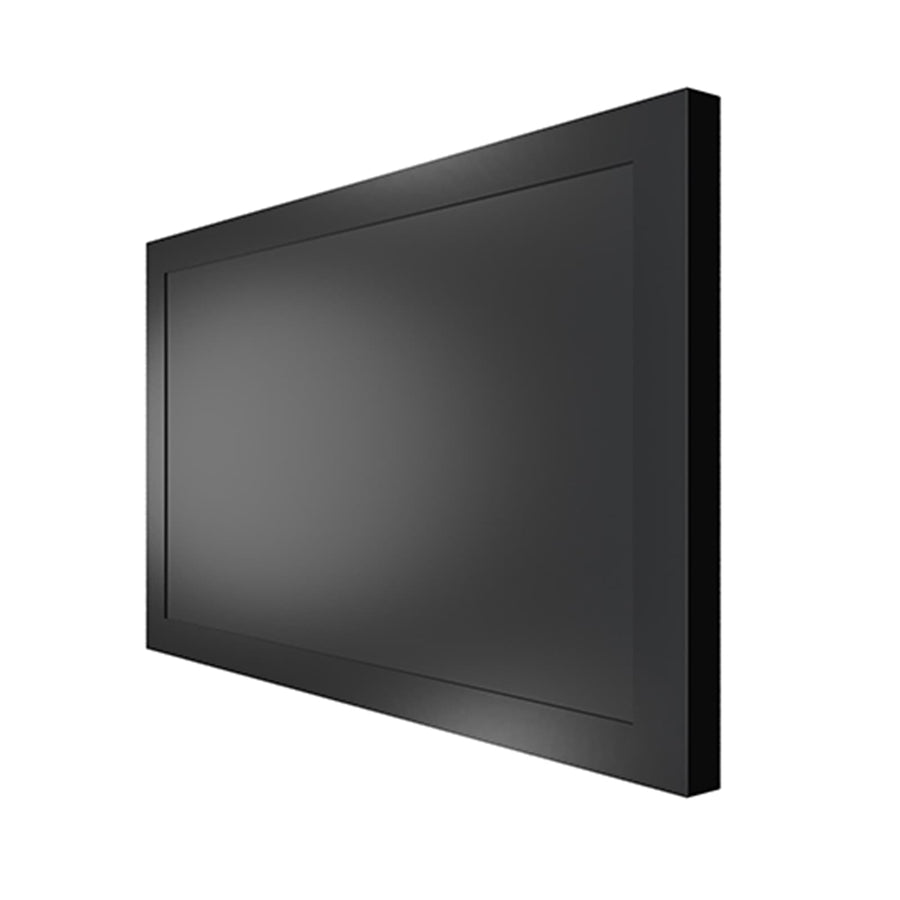

Impact™ On-Wall Kiosk - Landscape 55 Inch Black
Landscape on-wall kiosk for 55" displays, 125 lbs capacity, featuring 8" extension and integrated wall reveal
The Chief LW55UB is a landscape-oriented on-wall kiosk from the Impact™ Series designed for digital signage in diverse environments. This enclosure accommodates a single 55" (1397mm) display and features a depth-adjustable exterior frame that manages protrusion depth requirements for various screen types. A scissor arm design provides 8" (203mm) of extension, allowing technicians easy access for service and maintenance once the display is mounted. The unit includes an integrated wall reveal to help maintain a plumb frame on uneven walls while providing passive cooling. Security is enhanced by a single-point engagement latch that can be secured using tamperproof hardware. For integrated AV management, the kiosk offers on-wall storage options through Middle Atlantic’s Lever Lock™ technology. Additionally, the large open center allows for the use of Chief in-wall PAC boxes, such as the PAC525 or PAC526, to facilitate clean cable management behind the display.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Depth range: 3-5" (76 - 127 mm) |
| Shipping Dimensions | 56" x 37" x 5" (142.2 x 94 x 12.7 cm) |
| Shipping Weight | 96 lbs (43.5 kg) |
| Typical Screen Size | 55" (1397mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Accessory Type | Metal StudMounting BracketsProtective CoversRack RailsThermal Management |
| Adjustability | ExtensionFixedLateral Shift |
| Application | Floor-CartWall |
All other specifications 8
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Protective Glass | No |
| Special Features | Closure DoorSecurity |
| TAA Compliant | Yes |
| UPC | 841872175256 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
PAC525, In-Wall Storage Box
PAC525$79.20
Fusion® Display Mount Adapter for 70 in. Cisco Webex Board
FHB5087$522.40
Impact™ Series Universal VESA Adapter Bracket
FHBUL$146.40
Interface Adaptor, 500mm
FHB5106$228.00
Fusion® and Thinstall™ Hardware Kits-FHB5078
FHB5078$116.80
Fusion® and Thinstall™ Hardware Kits-FHB5062
FHB5062$11.20
Fusion® Wall Large Mount 500 mm Vesa adaptor
FHB5077$56.80
Verified fitment
Questions about this part
Will the LW55UB fit my specific 55-inch display?
The kiosk is verified against 2,463 display models from 41 manufacturers, including Samsung 550UT, Sony 55BZ30P, LG 55AM960H, Panasonic TC55AS540, and Philips 55BDL3105X.
What do I need for the in-wall installation?
The kiosk features a large empty center compatible with Chief in-wall PAC boxes, such as the PAC525 or the larger PAC526.
How much extension does the scissor arm provide?
The integrated scissor arm design provides 8" (203mm) of extension to facilitate service and maintenance access to the display.
Does this kiosk require extra hardware for security?
The single point engagement latch can be secured with tamperproof hardware to enhance the security of the enclosure.
What is the difference between the LW55UB and other Impact Kiosks?
This SKU is the landscape orientation in a black finish; the series also offers different orientations, colors, and lengths for various display sizes.
