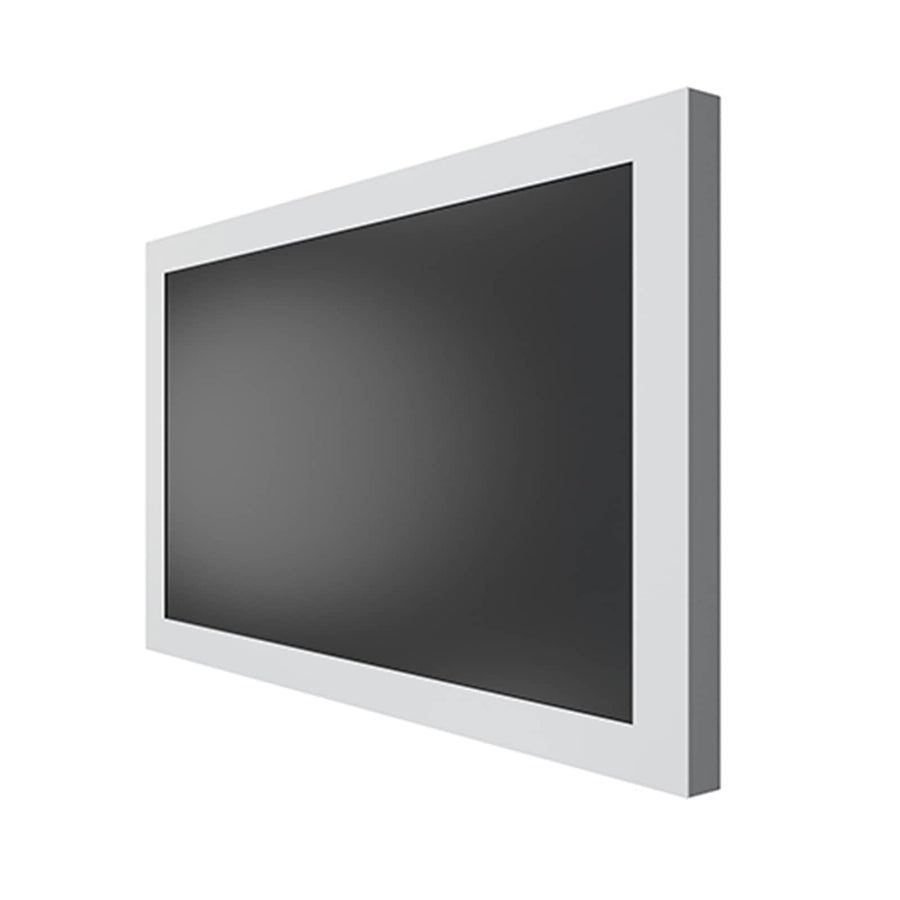

Impact™ On-Wall Kiosk - Landscape 49 Inch White
Landscape white kiosk for 49" displays, featuring an 8" (203 mm) extension scissor arm for maintenance access
The Chief LW49UW is an Impact™ Series On-Wall Kiosk finished in white and configured for landscape orientation. This kiosk is designed to house a single 49" (1245 mm) display while maintaining a sleek aesthetic for professional digital signage environments. The unit features a depth-adjustable exterior frame with a depth range of 3-5" (76 - 127 mm), allowing installers to manage protrusion requirements and meet specific installation depths. A key feature is the integrated scissor arm design, which provides 8" (203 mm) of extension to facilitate essential service and maintenance access once the display is mounted. For security, the kiosk includes a closure door with a single point engagement latch that can be secured using tamperproof hardware. To assist with installation on imperfect surfaces, an integrated wall reveal compensates for uneven walls to keep the frame plumb and provides passive cooling. The LW49UW is UL Listed and TAA compliant, making it suitable for various institutional and commercial deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Depth range: 3-5" (76 - 127 mm) |
| Shipping Dimensions | 56" x 37" x 5" (142.2 x 94 x 12.7 cm) |
| Shipping Weight | 96 lbs (43.5 kg) |
| Typical Screen Size | 49" (1245mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Accessory Type | Metal StudMounting BracketsProtective CoversRack RailsThermal Management |
| Adjustability | ExtensionFixedLateral Shift |
| Application | Floor-CartWall |
All other specifications 8
| Color | White |
| Number of Displays | 1 |
| Orientation | Landscape |
| Protective Glass | No |
| Special Features | Closure DoorSecurity |
| TAA Compliant | Yes |
| UPC | 841872175225 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
PAC525, In-Wall Storage Box
PAC525$79.20
Fusion® Display Mount Adapter for 70 in. Cisco Webex Board
FHB5087$522.40
Impact™ Series Universal VESA Adapter Bracket
FHBUL$146.40
Interface Adaptor, 500mm
FHB5106$228.00
Fusion® and Thinstall™ Hardware Kits-FHB5078
FHB5078$116.80
Fusion® and Thinstall™ Hardware Kits-FHB5062
FHB5062$11.20
Fusion® Wall Large Mount 500 mm Vesa adaptor
FHB5077$56.80
Verified fitment
Questions about this part
Will the LW49UW fit my 49-inch display?
The LW49UW is verified against 494 display models from 11 manufacturers, including Samsung BE49R, Sony FW49BZ35F, LG 49LB5500, and Philips 49BDL4050D.
What is required for wall installation?
The kiosk features an integrated wall reveal to compensate for uneven walls. You may also utilize Chief in-wall PAC boxes through the large empty center, including the PAC525 or PAC526 large in-wall storage boxes.
How much service clearance does the scissor arm provide?
The integrated scissor arm design provides 8" (203 mm) of extension, allowing for easier maintenance and servicing of the display.
Can I add additional hardware for security or mounting?
Yes, you can use the FHBUL Universal VESA Adapter Bracket or the FHB5147 Universal Flat Panel Mount Hardware kit. The enclosure also supports Middle Atlantic's Lever Lock™ technology for integrated on-wall AV storage.
Is this kiosk suitable for TAA compliant projects?
Yes, the LW49UW is TAA compliant and is UL Listed for professional installations.
