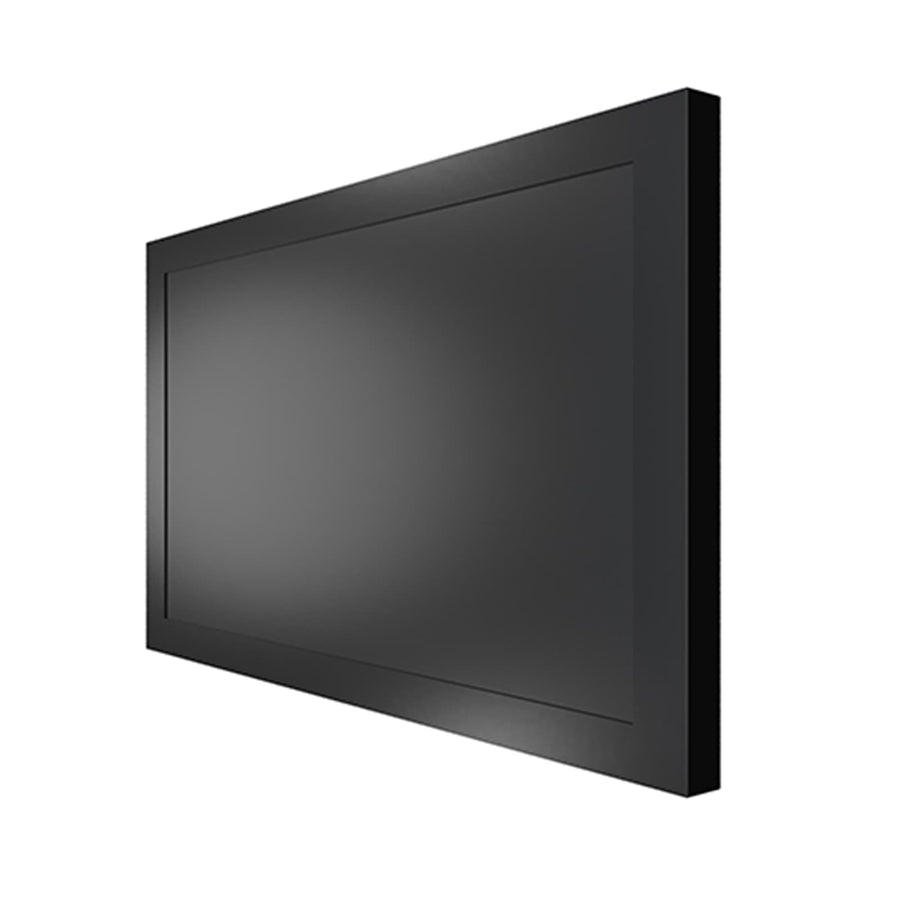

Impact™ On-Wall Kiosk - Landscape 49 Inch Black
Landscape 49" on-wall kiosk with a depth-adjustable frame and 8" scissor arm extension for maintenance access
The LW49UB Impact™ On-Wall Kiosk provides a flexible enclosure solution for digital signage in professional environments. This black, landscape-oriented kiosk is designed to accommodate a single 49" display while maintaining a sleek aesthetic. The exterior frame is depth-adjustable between 3" (76 mm) and 5" (127 mm), allowing installers to meet specific protrusion requirements for various display models. A built-in scissor arm provides 8" (203 mm) of extension, ensuring maintenance and service access to the hardware. This TAA compliant and UL listed kiosk includes an integrated wall reveal to assist with plumbing the frame on uneven surfaces and provides passive cooling. For enhanced security, the single point engagement latch can be secured with tamperproof hardware. The enclosure features a large empty center, allowing for the integration of Chief in-wall PAC boxes, such as the PAC525 or PAC526, to manage on-wall AV storage via Middle Atlantic’s Lever Lock™ technology. This SKU is part of the Impact™ Series and is designed for both wall and floor-cart applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Depth range: 3-5" (76 - 127 mm) |
| Shipping Dimensions | 56" x 37" x 5" (142.2 x 94 x 12.7 cm) |
| Shipping Weight | 96 lbs (43.5 kg) |
| Typical Screen Size | 49" (1245mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Accessory Type | Metal StudMounting BracketsProtective CoversRack RailsThermal Management |
| Adjustability | ExtensionFixedLateral Shift |
| Application | Floor-CartWall |
All other specifications 8
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Protective Glass | No |
| Special Features | Closure DoorSecurity |
| TAA Compliant | Yes |
| UPC | 841872175218 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
PAC525, In-Wall Storage Box
PAC525$79.20
Fusion® Display Mount Adapter for 70 in. Cisco Webex Board
FHB5087$522.40
Impact™ Series Universal VESA Adapter Bracket
FHBUL$146.40
Interface Adaptor, 500mm
FHB5106$228.00
Fusion® and Thinstall™ Hardware Kits-FHB5078
FHB5078$116.80
Fusion® and Thinstall™ Hardware Kits-FHB5062
FHB5062$11.20
Fusion® Wall Large Mount 500 mm Vesa adaptor
FHB5077$56.80
Verified fitment
Questions about this part
Will the LW49UB fit my specific 49 inch display?
Yes, it is verified against 495 display models from 12 manufacturers, including the Sony FW49BZ35F, LG 49LB5500, Samsung BE49R, and TCL 49D100.
What is required for a secure installation of this kiosk?
The kiosk features a single point engagement latch that can be secured using tamperproof hardware to prevent unauthorized access.
Can I add in-wall storage to this kiosk setup?
Yes, the large center opening allows for the use of Chief in-wall PAC boxes, such as the PAC525 or the larger PAC526.
How much extension does the scissor arm provide?
The integrated scissor arm provides 8" (203 mm) of extension to allow for easier servicing and maintenance of the display.
What is the weight capacity for the LW49UB?
This kiosk has a maximum weight capacity of 125 lbs (56.7 kg) for a single display.
