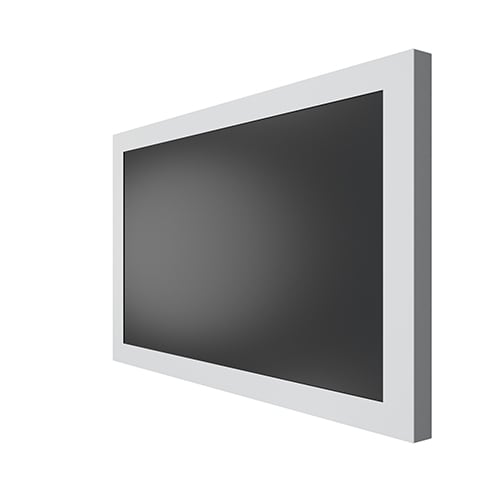

Impact™ On-Wall Kiosk - Landscape 43 Inch White
White landscape 43" On-Wall Kiosk with 100 lbs capacity and 3-5" depth adjustability
The LW43UW Impact™ On-Wall Kiosk provides a high-end aesthetic for digital signage environments while offering significant installation flexibility. This white landscape kiosk is designed for 43" displays and features an adjustable exterior frame with a depth range of 3-5" (76 - 127 mm). To ensure ease of maintenance, the enclosure utilizes reversible hinges that keep the display mounted to the frame when the door is opened, preventing service obstructions. This design allows for secure, front-serviced access to the hardware. The kiosk is built for security and includes a closure door and is TAA compliant. It supports VESA mounting patterns of 200x200mm, 300x300mm, and 400x400mm. This unit is UL Listed and accommodates a maximum screen thickness of 3.4 in (86.4 mm) with a weight capacity of 100 lbs (45.4 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Depth range: 3-5" (76 - 127 mm) |
| Maximum Screen Thickness | 3.4 in (86.4 mm) |
| Shipping Dimensions | 44.5" x 31.5" x 5" (113 x 80 x 12.7 cm) |
| Shipping Weight | 74.06 lbs (33.6 kg) |
| Typical Screen Size | 43" (76mm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Accessory Type | Metal StudMounting BracketsProtective CoversRack RailsThermal Management |
| Adjustability | Fixed, Lateral Shift, Extension |
All other specifications 10
| Application | Wall |
| Color | White |
| Number of Displays | 1 |
| Orientation | Landscape |
| Protective Glass | No |
| Special Features | Closure Door, Security |
| TAA Compliant | Yes |
| UPC | 841872176833 |
| VESA Mounting Pattern | 200 x 200mm300 x 300mm400 x 400mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
PAC525, In-Wall Storage Box
PAC525$79.20
Fusion® Display Mount Adapter for 70 in. Cisco Webex Board
FHB5087$522.40
Impact™ Series Universal VESA Adapter Bracket
FHBUL$146.40
Interface Adaptor, 500mm
FHB5106$228.00
Fusion® and Thinstall™ Hardware Kits-FHB5078
FHB5078$116.80
Fusion® and Thinstall™ Hardware Kits-FHB5062
FHB5062$11.20
Fusion® Wall Large Mount 500 mm Vesa adaptor
FHB5077$56.80
Verified fitment
Questions about this part
Will this kiosk fit my 43 inch display?
The LW43UW is verified against 1,855 display models from 38 manufacturers, including LG 43BN70UB, Samsung 43QN9*C, Sony FW43BZ35J, and TCL 43C645.
What do I need to buy to complete the installation?
Additional components such as the PAC525 or PAC526 In-Wall Storage Boxes, and the FHBUL Universal VESA Adapter Bracket can be purchased separately.
How is the display serviced once installed?
The unit features reversible hinges and a closure door that keeps the display secured to the frame during maintenance for easier access.
How much space is required for the installation depth?
The exterior frame is adjustable, providing a depth range of 3-5" (76 - 127 mm) to accommodate your specific mounting requirements.
What is the maximum screen thickness this kiosk accepts?
The LW43UW supports a maximum screen thickness of 3.4 in (86.4 mm) for the integrated display.
