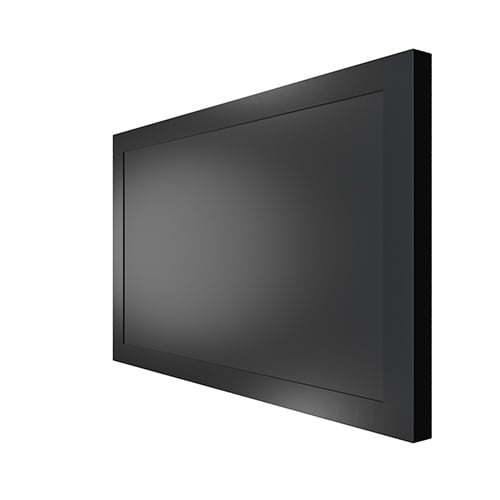

Impact™ On-Wall Kiosk - Landscape 43 Inch Black
Landscape 43" on-wall kiosk for digital signage, featuring a depth-adjustable frame and secure closure door
The Chief LW43UB is a professional landscape-oriented on-wall kiosk designed for digital signage installations. This Impact™ Series enclosure provides a sleek black aesthetic suitable for high-traffic environments. The enclosure features a depth-adjustable exterior frame with a range of 3-5" (76 - 127 mm), accommodating a variety of display profiles. It is engineered to support a single display with a maximum screen thickness of 3.4 in (86.4 mm) and a weight capacity of 100 lbs (45.4 kg). To facilitate ease of maintenance, the kiosk utilizes reversible hinges that keep the display mounted to the frame when opened, preventing obstructions during servicing. The design includes a security closure door for added protection. For specific installation requirements, this TAA-compliant and UL-listed unit supports VESA mounting patterns of 200x200mm, 300x300mm, and 400x400mm.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Depth range: 3-5" (76 - 127 mm) |
| Maximum Screen Thickness | 3.4 in (86.4 mm) |
| Shipping Dimensions | 44.5" x 31.5" x 5" (113 x 80 x 12.7 cm) |
| Shipping Weight | 74.06 lbs (33.6 kg) |
| Typical Screen Size | 43" (76mm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Accessory Type | Metal StudMounting BracketsProtective CoversRack RailsThermal Management |
| Adjustability | Fixed, Lateral Shift, Extension |
All other specifications 10
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Protective Glass | No |
| Special Features | Closure Door, Security |
| TAA Compliant | Yes |
| UPC | 841872176826 |
| VESA Mounting Pattern | 200 x 200mm300 x 300mm400 x 400mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
PAC525, In-Wall Storage Box
PAC525$79.20
Fusion® Display Mount Adapter for 70 in. Cisco Webex Board
FHB5087$522.40
Impact™ Series Universal VESA Adapter Bracket
FHBUL$146.40
Interface Adaptor, 500mm
FHB5106$228.00
Fusion® and Thinstall™ Hardware Kits-FHB5078
FHB5078$116.80
Fusion® and Thinstall™ Hardware Kits-FHB5062
FHB5062$11.20
Fusion® Wall Large Mount 500 mm Vesa adaptor
FHB5077$56.80
Verified fitment
Questions about this part
Will the LW43UB fit my 43 inch display?
Yes, this kiosk is verified against 1,845 display models from 38 manufacturers, including the LG 43BN70UB, Samsung 43QN9*C, Sony FW43BZ35J, TCL 43C645, Hisense 43A4H, and VIZIO D43C1.
What is required for the wall installation?
This is a wall-applied enclosure. While the record lists metal studs, mounting brackets, and protective covers as accessory types, you should consult the installation manual for specific stud spacing and backing requirements.
How much weight can the kiosk support?
The LW43UB is rated for a weight capacity of 100 lbs (45.4 kg) for a single display.
What accessories are compatible with this kiosk?
You can enhance the installation with PAC526 or PAC525 in-wall storage boxes, FHBUL Universal VESA Adapter Brackets, or LL-VC21 Lever Lock™ component storage plates.
Can I adjust the depth of the kiosk?
Yes, the enclosure features an adjustable depth range of 3-5" (76 - 127 mm) to accommodate different screen thicknesses up to 3.4 in (86.4 mm).
