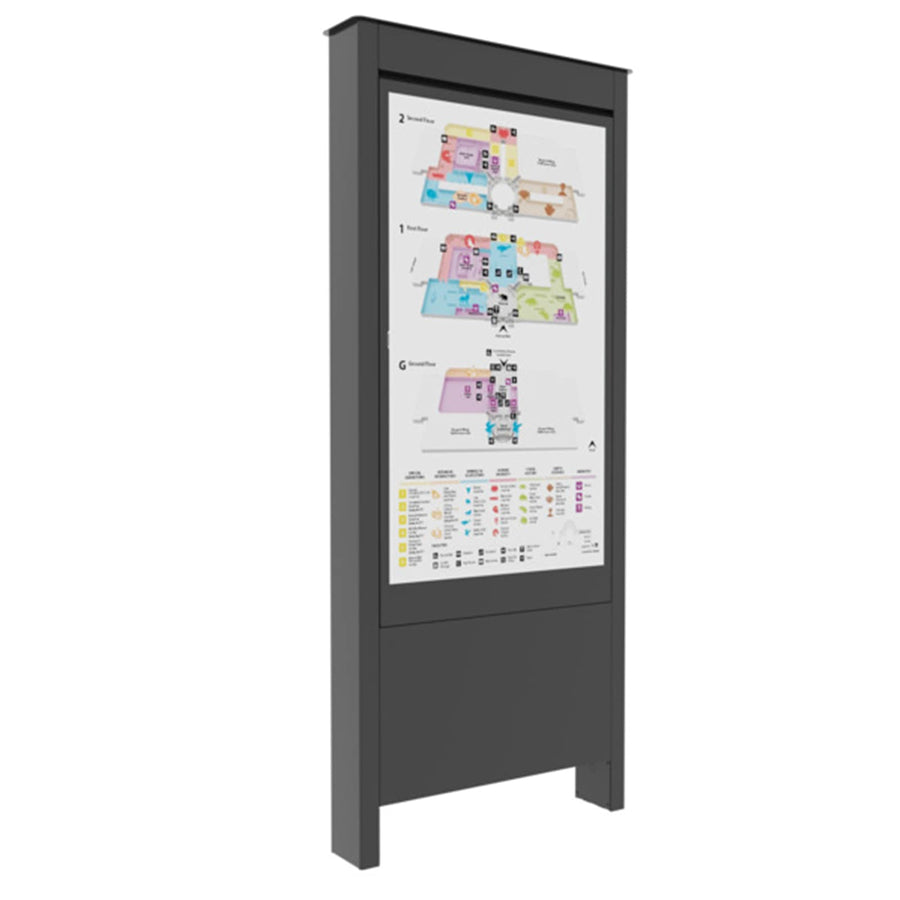

Impact™ 55 Inch Outdoor Portrait Kiosk, LG XE4F-M Series
Outdoor portrait kiosk for 55" displays, wind-tested up to 140 mph, featuring IP54-rated AV storage and active cooling
The OLF55BP-LG is a robust Impact™ Outdoor Portrait Kiosk designed to provide secure, weather-resistant digital signage housing. This floor-standing application is specifically engineered for the LG XE4F-M series, providing dedicated support for the LG55XE4F-M and LG49XE4F-M models. This kiosk is built to withstand harsh environments, featuring outdoor-rated paint and a construction that has been wind tested up to 140 mph. The unit includes a Lever Lock™ panel for secure access to internal components. To ensure hardware reliability, the kiosk features active cooling via a fan and vents to maintain stable internal temperatures. It also provides IP54-rated AV device storage to protect sensitive electronics from the elements. This TAA-compliant enclosure is designed for professional outdoor deployments where equipment protection and thermal management are critical.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 7.5 in (19.1 cm) |
| Height | 84.12 in (213.7 cm) |
| Overall Dimensions | 84.12" x 36.3" x 7.5" (2137 x 922 x 191 mm) |
| Shipping Weight | 253 lbs (114.8 kg) |
| Typical Screen Size | 55" (1397mm) |
| Weight Capacity | 150 lbs (68 kg) |
| Width | 36.3 in (92.2 cm) |
| Accessory Type | Thermal Management |
All other specifications 9
| Adjustability | Fixed |
| Application | Floor-Cart |
| Color | Black |
| Display | LG55XE4F-M and LG49XE4F-M |
| Orientation | Portrait |
| Special Features | Outdoor Use |
| TAA Compliant | Yes |
| UPC | 841872177434 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
FCA113 Fusion® CPU Extender Accessory
FCA113$239.20
CMS060, 60 Inch Fixed Extension Column, Pole
CMS060$101.60
3ft (0.9m) Performance Series Ultra High Speed HDMI® Cable
C2G10453$38.99
OFRBC-8 OFR Overfloor Raceway Base and Cover
OFRBC-8$87.21
Fusion® Freestanding and Ceiling Extension Brackets-FCAX08
FCAX08$176.80
Essex RCS Series Pre-Configured Rack - RCS-2724
RCS-2724$1,787.40

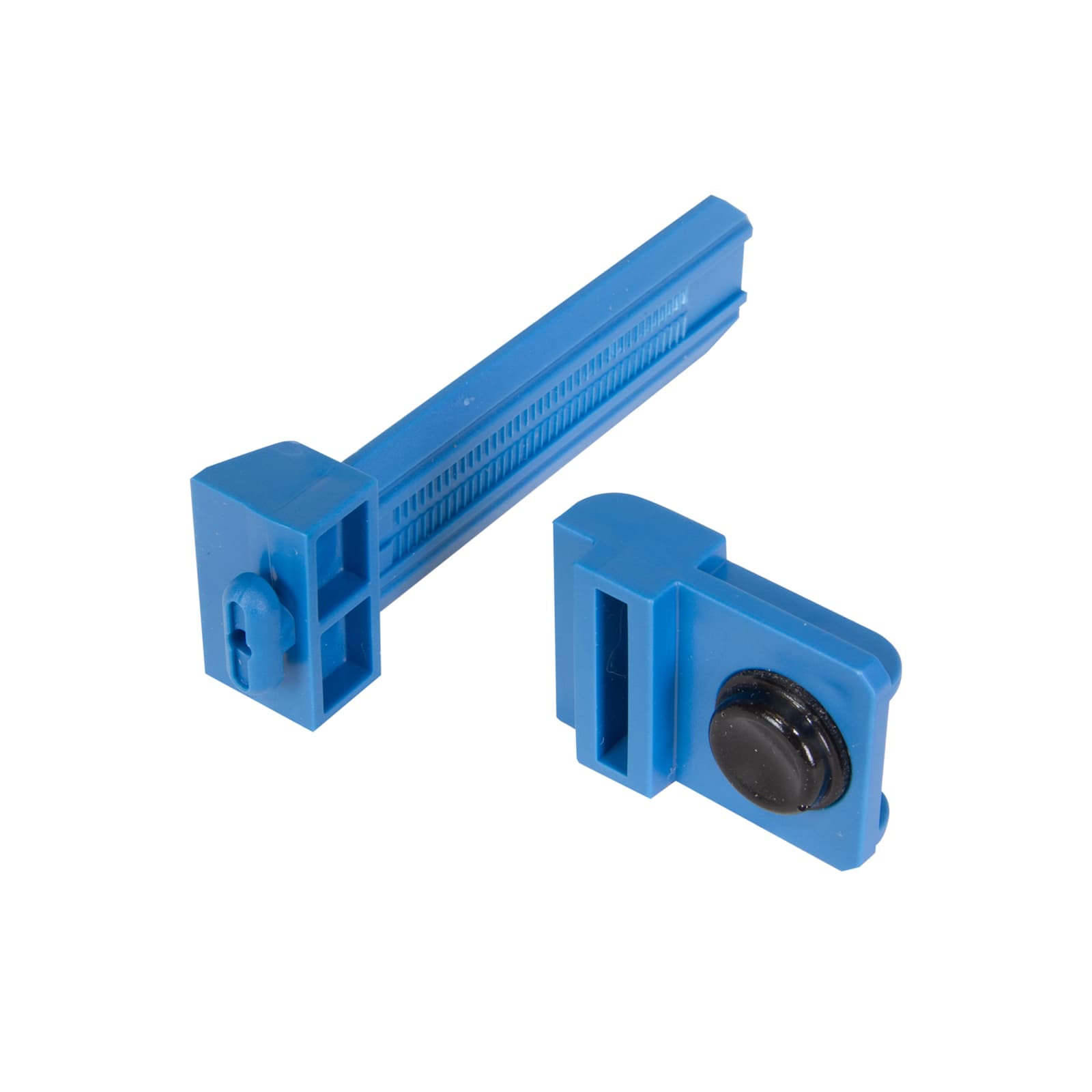

Forward Small Device Mounting Clamps - 4 Pack
FWD-SIDECLMP-4$23.40
Forward Hook & Loop Tie Saddles - 15 Pieces
FWD-TSW-15$53.10
Forward C Style Ring Cable Management
FWD-C-RING$18.00
Forward C Style Ring Cable Management - 12 Pieces
FWD-C-RING-12$161.10
C3 Series Credenza Frame, 2 Bay, 32 Inches High
C3-FF32-2$1,108.80
Verified fitment
Questions about this part
Will the OLF55BP-LG fit my LG display?
This kiosk is specifically designed for the LG XE4F-M series, including the LG55XE4F-M and LG49XE4F-M models. It is verified to work with 1,114 display models from 13 different manufacturers, including Samsung, Sony, and Panasonic.
What internal components are needed for power management?
To manage power within the enclosure, you can integrate Middle Atlantic accessories such as R-LINK Power Management (SKU: RLNK-215) or UPS devices.
How do I mount small devices inside the kiosk?
You can secure internal hardware using Forward Small Device Mounting Clamps, such as the FWD-SIDECLMP-4 or FWD-SIDECLMP-60 packs, which work with the Lever Lock™ panel.
How is the thermal management handled in this outdoor unit?
The kiosk utilizes active cooling through a fan and dedicated vents to maintain optimal operating temperatures for your internal AV components.
Is this kiosk suitable for high-wind environments?
Yes, the Impact™ Outdoor Series is wind tested up to 140 mph, making it suitable for demanding outdoor installations.
