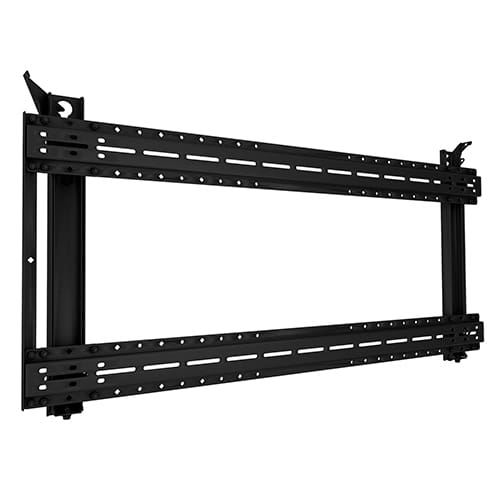

Heavy Duty Flat Panel Wall Mount
Heavy duty wall mount for large displays, 350 lbs capacity, featuring Q-Latch mounting and plumb adjustment
The Chief PSMH2079 is a heavy-duty wall mount designed to secure large-format displays and interactive technology to a wall. Engineered for high-load applications, this universal solution supports a weight capacity of 350 lbs (158.8 kg). The mount is designed for landscape orientation and features an exclusive Q-Latch Mounting System to secure the TV to the wall quickly and safely. For precise installation, the integrated plumb adjustment allows installers to vertically align the panel with a +1.6° range. This mount is TAA compliant and UL listed. The bracket design is optimized for specific TV requirements and is compatible with VESA patterns including 1200x600, 1100x600, 1000x600, 900x600, 800x600, and 700x600. For professional submittals, the PSMH2079 Installation Manual (PDF) and Technical Drawing (PDF) are available for download.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.64 in (6.7 cm) |
| Height | 26 in (66 cm) |
| Overall Dimensions | 26.0" x 54.36" x 2.64" (660 x 1380 x 67 mm) |
| Plumb Adjustment | +1.6° |
| Shipping Weight | 43.1 lbs (19.6 kg) |
| Typical Screen Size | Varies per Product |
| Wall Stud Compatibility | 16" and 24" (406mm and 610mm) |
| Weight Capacity | 350 lbs (158.8 kg) |
All other specifications 10
| Width | 54.36 in (138.1 cm) |
| Adjustability | Fixed |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872167695 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will this mount fit my large display?
The PSMH2079 is verified against 4,208 display models from 143 manufacturers. Examples of compatible displays include the Samsung 570DXN, LG 105BM5N, Sharp 4TB80CJ1U, Panasonic LH98QM1KD, Hisense 100DM66D, and Smart 6286S.
What wall mounting requirements are needed for the PSMH2079?
This mount is designed for wall applications and is compatible with both 16" and 24" (406mm and 610mm) wall stud spacing.
Does this mount allow for any tilt or movement?
This is a fixed mount with no tilt or swivel adjustability; however, it includes +1.6° of plumb adjustment to assist in vertically aligning the panel.
What accessories are compatible with this mount?
You can enhance the installation with the PAC526 Large In-Wall Storage Box, the PAC525 In-Wall Storage Box, or a Proximity™ Component Storage Panel, Interface (SKU: CSMP9X12).
Which technical documents are available for this mount?
Professional installers can access the PSMH2079 Technical Drawing (PDF) for planning or the PSMH2079 Installation Manual (PDF) for onsite mounting instructions.
