Fusion® Micro-Adjustable Large Ceiling Mounted 3 x 3 Video Wall Solutions
Ceiling-mounted 3x3 video wall solution for 42"-46" displays with micro-adjustment for precise alignment

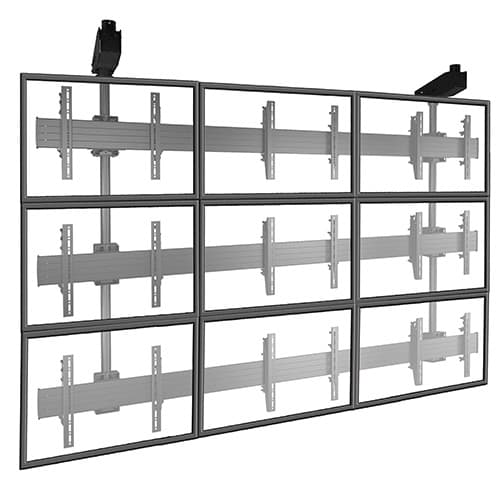

The Chief LCM3X3U is a Fusion® micro-adjustable ceiling-mounted video wall solution designed specifically for 3x3 array configurations in landscape orientation. This heavy-duty system is built for prominent digital signage installations where wall space is unavailable, such as large open atrium areas or lobby spaces. Each of the 9 displays in the array can support a weight capacity of 85 lbs (38.6 kg) and accommodates typical screen sizes between 42" and 46" (1067mm - 1168mm). To achieve a perfectly flush appearance, the system utilizes CONTROLZONE™ leveling and provides infinite vertical and lateral adjustments, including micro-height and plumb adjustments at all column intersection points. These adjustments allow for precise screen alignment without the need for specialized tools. This TAA compliant and UL listed solution is compatible with both traditional 1.5" NPT and new CPA pinned ceiling plates and column systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Height Range | Max Screen Height is 27" (68.58 cm) |
| Manual Height Adjustment | 1" (25 mm) increments at structural intersections |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Dimensions | 112" x 23.5" x 14" (284.5 x 59.7 x 35.6 cm) |
| Shipping Weight | 235 lbs (106.6 kg) |
| Typical Screen Size | 42"- 46" (1067mm - 1168mm) |
| Weight Capacity | 85 lbs (38.6 kg) |
| Adjustability | Height AdjustableMicro-Adjustable |
All other specifications 11
| Adjustments | Micro-Adjustments of 2" at structural intersection points |
| Application | Ceiling |
| Array Configuration | 3x3 |
| Color | Black |
| Number of Displays | 9 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872155005 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Fusion® Power Outlet Accessory
FCA540$67.20
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Architectural Spanning Adapter
CMA366$150.40
Internal Joist Mount
CMA385$135.20
Unistrut Adapter
CMA370$23.20
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
6 Inch (152 mm) Speed-Connect Ceiling Plate
CMS115$63.20
Verified fitment
Questions about this part
Will this LCM3X3U mount fit my specific displays?
This mount is verified against 8,647 display models from 231 manufacturers, including Samsung 400CX, Sony 50BZ30P, and LG 32LD690.
What additional components are required for installation?
The LCM3X3U requires the purchase of a ceiling plate and extension columns separately to complete the mounting system.
How do I adjust the alignment of the displays once mounted?
The system features micro-height and plumb adjustments at all column intersection points, allowing for precise alignment without tools.
What is the maximum height adjustment for these displays?
The system allows for manual height adjustment in 1" (25 mm) increments at structural intersections, with a maximum screen height of 27" (68.58 cm).
Can I hide the cabling and components behind the video wall?
Yes, you can provide an aesthetic covering for the rear of the displays and mounting hardware by using Chief Fusion® Universal Back Covers.
