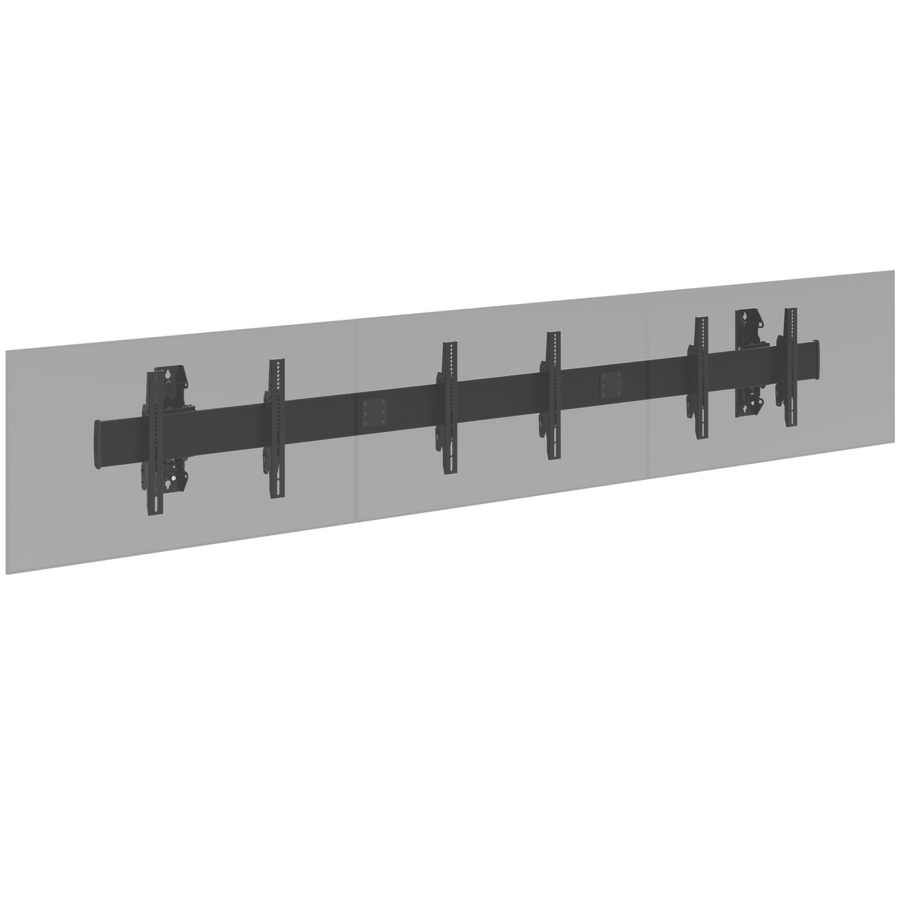

Fusion® Large Wall 3X1 Modular Menu Board Mount
Modular 3x1 menu board mount for three 40–55" displays, featuring tilt, height, and lateral shift adjustments
The Chief LWM3X1UM is a modular menu board solution designed to hold three displays in a 3x1 landscape configuration. This Fusion® Series mount utilizes a horizontal extrusion system to align screens quickly, even when mounted on irregular surfaces. The system features Centris® tilt adjusting between +0° and -20° and ControlZone™ micro-height adjustment for precise positioning. With a total weight capacity of 125 lbs (56.7 kg) and an overall depth of 10 in (25.4 cm), it provides a secure, professional presentation for digital signage. Installers can utilize the lateral shift and height adjustability to ensure perfect alignment across the array. This TAA compliant and UL listed mounting system is built for professional environments requiring reliable, adjustable multi-display setups. For specific mounting depth, the minimum depth is 5.8 in (14.7 cm). This unit is part of the Fusion® Large Wall Mounted Menu Board Solutions series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 10 in (25.4 cm) |
| Height | 49 in (124.5 cm) |
| Minimum Depth | 5.8 in (14.7 cm) |
| Overall Dimensions | 49" x 18.5" x 10" (1245 x 470 x 254 mm) |
| Shipping Dimensions | 36.75" x 17.13" x 8.25" (933 x 435 x 210 mm) |
| Shipping Weight | 65.5 lbs (29.7 kg) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 18.5 in (47 cm) |
All other specifications 11
| Adjustability | Tilt, Height Adjustable, Lateral Shift |
| Application | Wall |
| Array Configuration | 3x1 |
| Color | Black |
| Number of Displays | 3 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Modular, Multi-Display |
| TAA Compliant | Yes |
| Tilt | +0° / -20° |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00

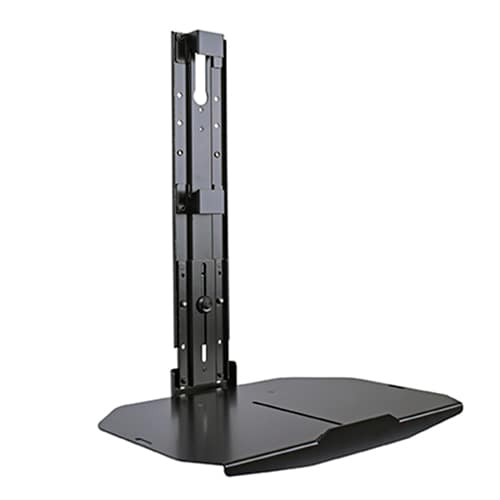

Fusion® Lower Component Shelf, Large Displays
