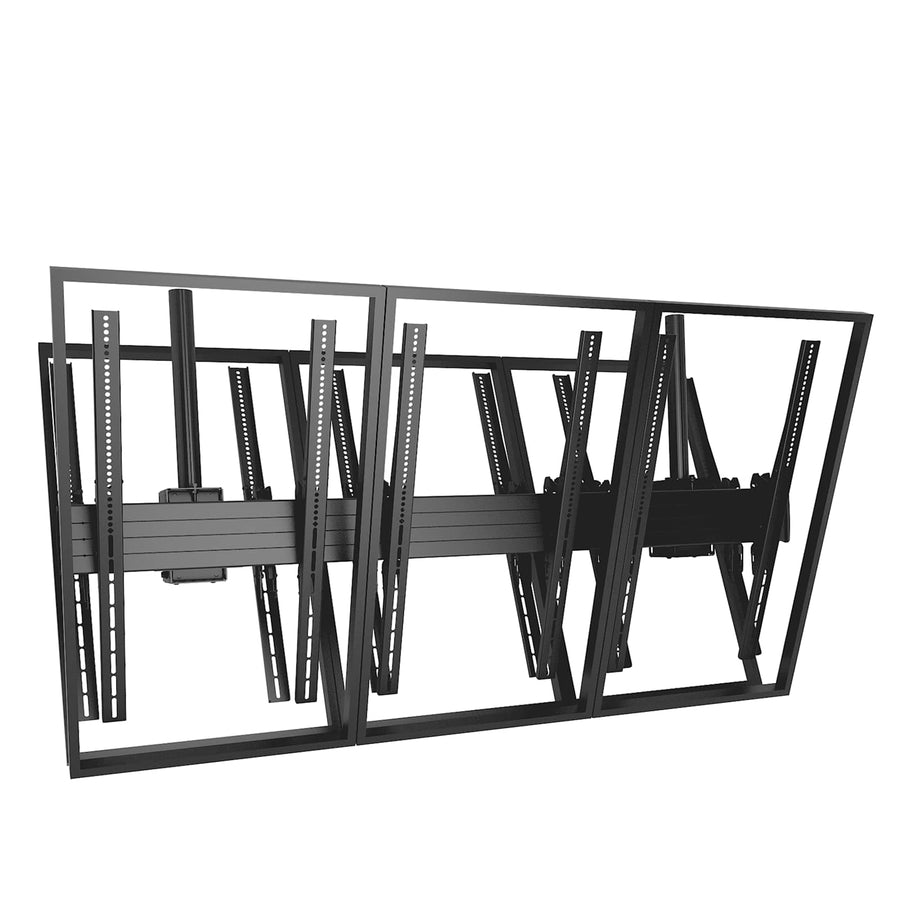

Fusion® Large Portrait Back-to-Back Ceiling Mounted 3 x 1 Menu Board
Portrait 3x1 ceiling-mounted menu board for 40-55" displays, with 125 lbs capacity and Centris technology tilt adjustment
The Chief LCB3X1UP is a Fusion® Large Ceiling Mounted Menu Board Solution designed for 3x1 portrait array configurations. This universal solution is engineered for digital signage installations in prominent locations where wall mounting is not an option. The system holds up to 6 displays, providing a large-format visual presence for high-traffic environments. It features a single horizontal extrusion that maintains alignment across the screens and utilizes Centris technology to allow for easy tilt adjustment of +5° to -20°. For precise leveling, the mount includes a micro-adjustable roll of +/- 3 degrees, and 360-degree swivel capabilities provide optimal viewing angles. The system supports displays from 40-55" diagonals with a VESA pattern of 102-400mm, though it can accommodate screens up to 65" when used with FCAX extension brackets. For added security, this TAA-compliant mount allows for the attachment of a padlock to secure the screens in place.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 109.5" x 13" x 12" (278.1 x 33 x 30.5 cm) |
| Shipping Weight | 92 lbs (41.7 kg) |
| Typical Screen Size | 40" - 55" (1016mm - 1397mm and up to 65" (1651mm) with FCAX extension brackets) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Tilt, Height Adjustable |
| Application | Ceiling |
| Array Configuration | 3x1 |
| Color | Black |
All other specifications 9
| Number of Displays | 6 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | + 5° / - 20° |
| UPC | 841872158983 |
| VESA Mounting Pattern | 102 - 400mm |
| Certifications | TAA |
Resources
You'll need these with it
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® 14 Inch UPPER COMPONENT/VC SHELF
FCA501$135.20
Fusion® 18 Inch LOWER COMPONENT/VC SHELF
FCA500$148.80
Fusion® Freestanding and Ceiling Extension Brackets-FCAX20
FCAX20$217.60
Fusion® 8 Inch UPPER VC SHELF
FCA502$108.80
Fusion® 24 Inch Upper Component/ VC Shelf
FCA503$176.80
Freestyle Flat Panel Rotation Adapter
FRA$341.60
Side Speaker Adapters
FCA535$178.40
Fusion® Freestanding and Ceiling Extension Brackets-FCAX14
FCAX14$203.20
Verified fitment
Questions about this part
Will the LCB3X1UP fit my specific display models?
This mount is verified against 10,800 display models from 329 manufacturers, including Sony 55BZ40P, Samsung 400CX, and LG 32LC5D.
What else do I need to buy to complete this installation?
A CEILING PLATE and an EXTENSION COLUMN are required for this system and must be ordered separately.
Can I use this mount for displays larger than 55 inches?
Yes, while the typical range is 40-55", you can fit screens up to 65" if you include FCAX extension brackets.
How do I adjust the viewing angle once the screens are mounted?
The system provides +5° to -20° of tilt via Centris technology, 360-degree swivel, and a micro-adjustable roll of +/- 3 degrees for perfect leveling.
Is there a way to secure the displays against theft?
Yes, you can add a padlock to the mount to secure the screens to the installation.
