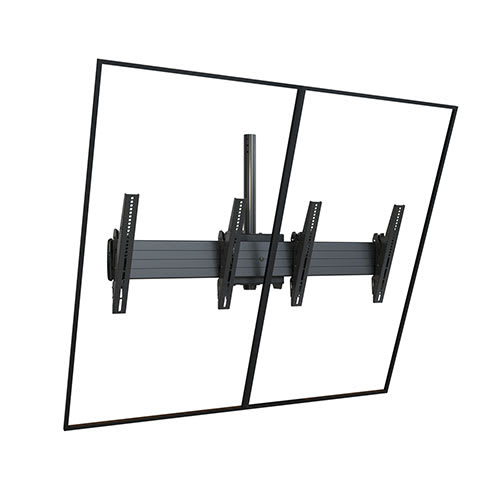

Fusion® Large Ceiling Mounted 2 x 1 Portrait Menu Board 400 mm Interfaces
Ceiling mounted 2x1 portrait menu board for 40-55" displays, featuring tilt, height adjustment, and 360-degree swivel
The Chief LCM2X1UP400 provides a professional solution for constructing 2x1 portrait menu boards in high-visibility locations where wall mounting is not an option. This ceiling-mounted system is designed for digital signage, allowing installers to create prominent, multi-display arrays in open spaces. The unit features a single horizontal extrusion to ensure all screens remain perfectly aligned in the array. Adjustability is handled via Centris technology, allowing for a tilt range of +5° to -20°, alongside 360-degree swivel and height adjustment for optimal viewing angles. Once installed, a micro-adjustable roll provides +/- 3° of leveling to ensure a perfect finish. This TAA compliant solution is compatible with both traditional 1.5" NPT and new CPA pinned ceiling plates and column systems. For larger installations, this interface is designed to support displays between 40" and 55" diagonally with a 100-400mm VESA mounting pattern and a 125 lbs (56.7 kg) weight capacity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 75" x 11.5" x 7.5" (190.5 x 29.2 x 19.1 cm) |
| Shipping Weight | 46 lbs (20.9 kg) |
| Typical Screen Size | 40" - 55" (1016mm-1397mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Tilt, Height Adjustable |
| Application | Ceiling |
| Array Configuration | 2x1 |
| Color | Black |
All other specifications 10
| Number of Displays | 2 |
| Orientation | Portrait |
| Post-Installation Leveling Roll | + / - 3° |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | + 5° / - 20° |
| UPC | 841872175874 |
| VESA Mounting Pattern | 100 - 400mm |
| Certifications | TAA |
Resources
You'll need these with it
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® 14 Inch UPPER COMPONENT/VC SHELF
FCA501$135.20
Fusion® 18 Inch LOWER COMPONENT/VC SHELF
FCA500$148.80
Fusion® Freestanding and Ceiling Extension Brackets-FCAX20
FCAX20$217.60
Fusion® 8 Inch UPPER VC SHELF
FCA502$108.80
Fusion® 24 Inch Upper Component/ VC Shelf
FCA503$176.80
Freestyle Flat Panel Rotation Adapter
FRA$341.60
Side Speaker Adapters
FCA535$178.40
Fusion® Freestanding and Ceiling Extension Brackets-FCAX14
FCAX14$203.20
Verified fitment
Questions about this part
Will the LCM2X1UP400 fit my specific displays?
This mount is verified against 9,648 display models from 241 manufacturers, including Samsung 460EX, Sony 55BZ35P, LG 32LC5D, Panasonic LH49RM1, and Sharp 40B553J2U.
What components do I need to complete the installation?
A CEILING PLATE and EXTENSION COLUMN are required for this assembly and must be ordered separately.
Can I use this mount with larger screens?
While this SKU is rated for 40-55" displays, you can use FCAX extension brackets to accommodate larger screens up to 65".
How do I secure the displays once they are mounted?
The system allows for security via an optional pad-lock to secure the screens to the mount.
What mounting pattern is required for the displays?
The interfaces support a VESA mounting pattern ranging from 100mm to 400mm.
