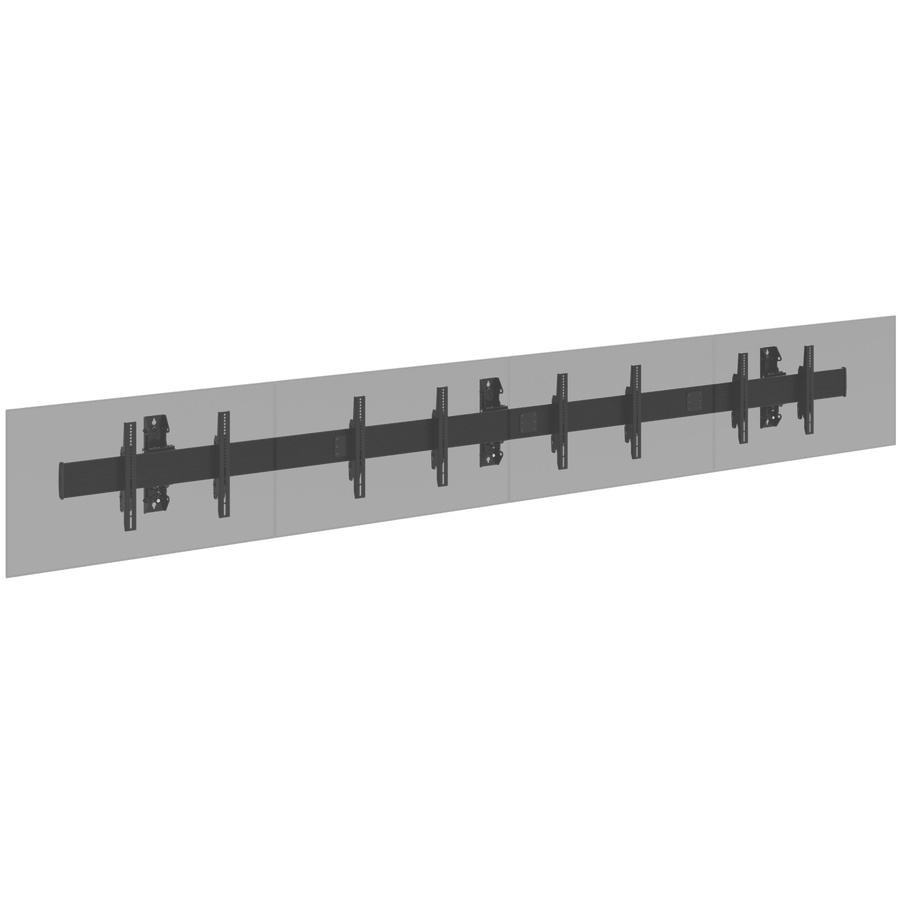

Fusion® Large 4x1 Modular Menu Board Mount
Modular landscape menu board mount for 4 displays, 125 lbs capacity, with tilt, height, and lateral shift adjustment
The Chief LWM4X1UM is a Fusion® Large 4x1 Modular Menu Board Mount designed to create precise, aligned digital signage arrays. This landscape-oriented solution accommodates four displays, typically 40–55" screens, and is TAA compliant and UL listed. The modular extrusion system utilizes installation connectors that arrive in compact packaging, facilitating easier handling during transport and stocking. Once installed, the Centris® tilt mechanism allows for adjustments between +0° and -20°, while ControlZone™ micro-height adjustment provides the fine-tuning necessary for perfect alignment. The system features tool-free screen engagement and provides lateral shift and height adjustability. Because the horizontal extrusion includes depth adjustment, the mount can be leveled even when installed on irregular mounting surfaces, ensuring easy access behind the screens for servicing. This 4x1 configuration is part of the broader Fusion® Large Wall Mounted Menu Board Solutions series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 10 in (25.4 cm) |
| Height | 49 in (124.5 cm) |
| Minimum Depth | 5.8 in (14.7 cm) |
| Overall Dimensions | 49" x 18.5" x 10" (1245 x 470 x 254 mm) |
| Shipping Weight | 93.2 lbs (42.3 kg) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 18.5 in (47 cm) |
| Adjustability | Tilt, Height Adjustable, Lateral Shift |
All other specifications 10
| Application | Wall |
| Array Configuration | 4x1 |
| Color | Black |
| Number of Displays | 4 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Modular, Multi-Display |
| TAA Compliant | Yes |
| Tilt | +0° / -20° |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Fusion® Freestanding and Ceiling Extension Brackets-FCAX08
FCAX08$176.80
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® Lower Component Shelf, Large Displays
FCA802$166.40
Fusion® Center Camera Shelf - 8 Inch
FCA820$126.40
Fusion® Center Camera Shelf - 14 Inch
FCA821$166.40
Fusion® Freestanding and Ceiling Extension Brackets-FCAX20
FCAX20$217.60
Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60
Fusion® 14 Inch Above/Below Shelf for Large Displays
FCA801$152.80
Fusion® 8 Inch Above/Below Shelf for Large Displays
FCA800$130.40
Verified fitment
Questions about this part
Will the LWM4X1UM fit my specific displays?
This mount is verified against 8,512 display models from 230 manufacturers, including the Samsung 460CX, Sony 55BZ35P, LG 37LB1D, and Panasonic 55VW3KD.
What can I buy to add storage or shelving to this mount?
You can integrate various accessories such as the FCA802 Lower Component Shelf, the FCA820 Center Camera Shelf (8 Inch), or the Proximity™ Component Storage Panel (CSMP9X12).
What tools will I need for the installation?
Please refer to the LWM3X1UM LWM4X1UM LWM5X1UM Installation Instructions for a complete list of the tools you will need to complete the setup.
How much weight can a single 4x1 array support?
The total weight capacity for the array is 125 lbs (56.7 kg), and the system provides lateral shift and height adjustability to ensure proper positioning.
How does this differ from other Fusion® configurations?
This SKU is specifically the landscape 4x1 configuration; other versions in this series offer portrait and landscape options for 2x1, 3x1, and 5x1 arrays.
