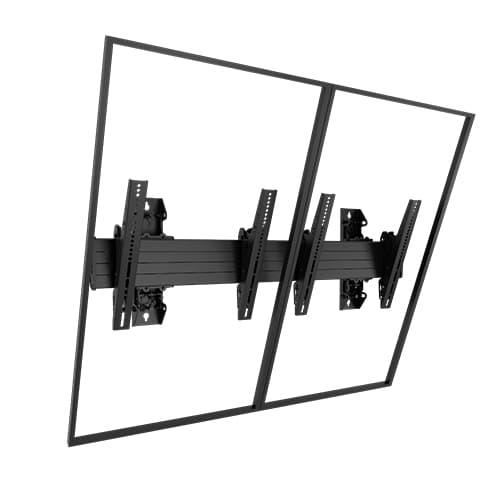

Fusion® Large 2X1 Menu Board Mount, Portrait
2x1 portrait menu board mount for 40–55" displays, 125 lbs capacity, featuring tilt, height, and lateral shift adjustments
The Chief LWM2X1UP Fusion® Large Menu Board Wall Mount is a professional-grade solution designed for 2x1 portrait array configurations. This mount utilizes a single horizontal extrusion with depth adjustment to ensure screens remain perfectly aligned, even when installed on irregular mounting surfaces. The system includes ControlZone™ micro-height adjustment for precision leveling and Centris® tilt capability, allowing for adjustments between +0° and -20°. For simplified installation, the mount features tool-free screen engagement and lateral shift capabilities to fine-tune the display position. The LWM2X1UP is an ideal choice for digital signage in high-traffic environments where clean, aligned aesthetics are required. This TAA compliant and UL listed mount supports most 40–55" screens, and the system allows for easy access to the space behind the displays for essential servicing. For specialized configurations, this series offers various accessories, including storage components and camera shelves, to complete the installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 8 in (20.3 cm) |
| Height | 32.5 in (82.6 cm) |
| Minimum Depth | 5.8 in (14.7 cm) |
| Overall Dimensions | 32.5" x 46.8" x 5.8" (826 x 1189 x 147 mm) |
| Shipping Weight | 59 lbs (26.8 kg) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 46.8 in (118.9 cm) |
| Adjustability | Height AdjustableLateral ShiftTilt |
All other specifications 11
| Application | Wall |
| Array Configuration | 2x1 |
| Color | Black |
| Number of Displays | 2 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +0° / -20° |
| UPC | 841872166575 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® Lower Component Shelf, Large Displays
FCA802$166.40
Fusion® Center Camera Shelf - 8 Inch
FCA820$126.40
Fusion® Center Camera Shelf - 14 Inch
FCA821$166.40
Fusion® Freestanding and Ceiling Extension Brackets-FCAX20
FCAX20$217.60
Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60
Fusion® 14 Inch Above/Below Shelf for Large Displays
FCA801$152.80
Fusion® 8 Inch Above/Below Shelf for Large Displays
FCA800$130.40
Fusion® 14 Inch Above/Below Shelf for Extra-Large Displays
FCA811$176.80
Questions about this part
What display sizes does the LWM2X1UP support?
The LWM2X1UP accommodates most 40–55" screens; however, you should verify compatibility with specific manufacturer models and check accessory requirements for your exact hardware.
Can I adjust the vertical and horizontal position of the displays?
Yes, the mount features ControlZone™ micro-height adjustment for vertical leveling and lateral shift for horizontal positioning once installed.
What mounting adjustments are available for this menu board mount?
This mount offers tilt adjustment between +0° and -20° via Centris® technology, as well as height and lateral shift adjustments to ensure perfect alignment.
What accessories are available to complement the LWM2X1UP?
The Fusion® line includes various components like the FCA802 Lower Component Shelf and the FCA821 Center Camera Shelf (14 Inch) to support your specific installation needs.
Is this mount suitable for portrait or landscape orientations?
The LWM2X1UP is specifically configured for 2x1 portrait arrays; the Fusion® series also offers landscape options for 4x1 and 5x1 configurations.
