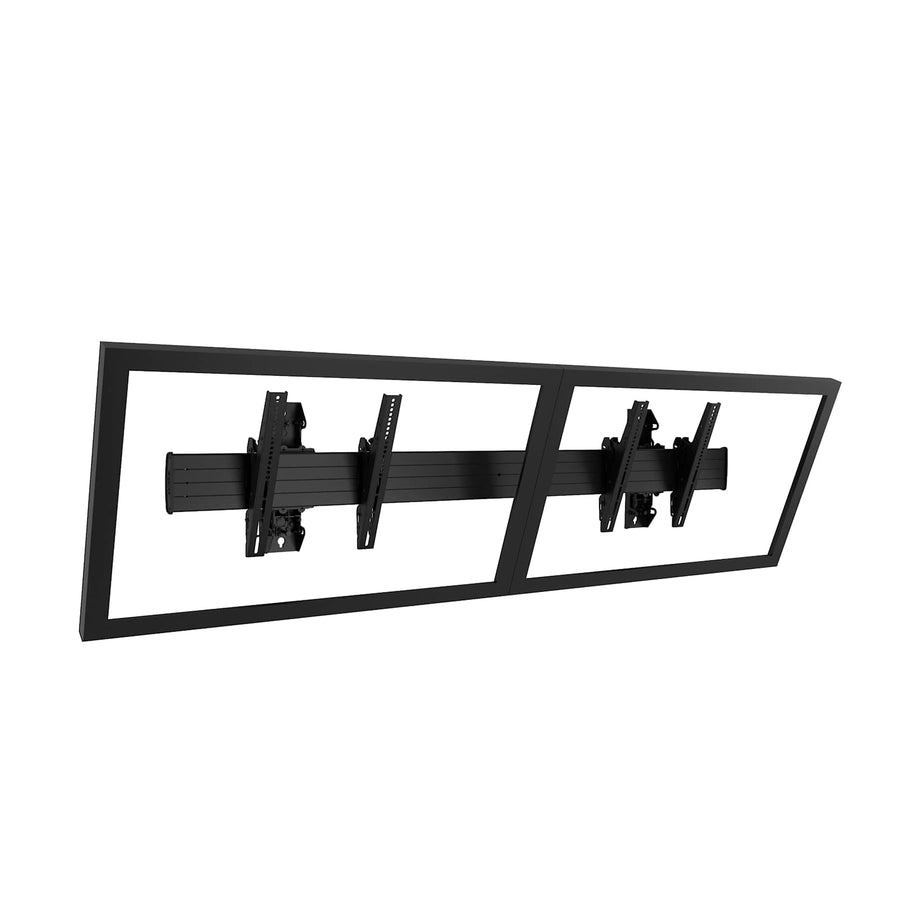

Fusion® Large 2x1 Menu Board Mount
Landscape 2x1 menu board mount for 40-55" displays, 125 lbs capacity, with tilt, height, and lateral adjustment
The Chief LWM2X1U is a specialized Fusion® Large Wall Mounted Menu Board Solution designed for 2x1 array configurations in a landscape orientation. This mounting system uses a single horizontal extrusion to ensure that two large-format displays remain perfectly aligned, even when installed on irregular mounting surfaces. The system incorporates ControlZone™ micro-height adjustment and Centris® tilt capabilities, allowing installers to adjust the displays between +0° and -20° to achieve the correct viewing angle. For post-installation service, the mount's depth adjustment provides easy access to the rear of the screens. The LWM2X1U is UL Listed and accommodates most 40-55" screens. This unit features tool-free screen engagement for faster deployment and can be enhanced with optional padlock security. The LWM series is part of a larger ecosystem, including components like the FCA820 8-inch Center Camera Shelf or the FCA811 Low-Profile Above/Below Shelf for extra-large displays.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 8 in (20.3 cm) |
| Height | 16.75 in (42.5 cm) |
| Minimum Depth | 5.8 in (14.7 cm) |
| Overall Dimensions | 16.75" x 156.8" x 5.8" (425 x 3983 x 147 mm) |
| Shipping Weight | 46 lbs (20.9 kg) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 156.8 in (398.3 cm) |
| Adjustability | Tilt, Height Adjustable, Lateral Shift |
All other specifications 11
| Application | Wall |
| Array Configuration | 2x1 |
| Color | Black |
| Number of Displays | 2 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | No |
| Tilt | +0° / -20° |
| UPC | 841872166322 |
| Certifications | UL Listed |
Resources
You'll need these with it
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® Lower Component Shelf, Large Displays
FCA802$166.40
Fusion® Center Camera Shelf - 8 Inch
FCA820$126.40
Fusion® Center Camera Shelf - 14 Inch
FCA821$166.40
Fusion® Freestanding and Ceiling Extension Brackets-FCAX20
FCAX20$217.60
Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60
Fusion® 14 Inch Above/Below Shelf for Large Displays
FCA801$152.80
Fusion® 8 Inch Above/Below Shelf for Large Displays
FCA800$130.40
Fusion® 14 Inch Above/Below Shelf for Extra-Large Displays
FCA811$176.80
Questions about this part
Will the LWM2X1U fit my 55-inch displays?
The LWM2X1U is designed to accommodate most 40-55" screens in a 2x1 landscape configuration.
What adjustments can I make once the menu boards are mounted?
The mount provides height adjustment, lateral shift, and Centris® tilt between +0° and -20°.
What accessories are compatible with this menu board mount?
You can add components such as the FCA820 8-inch Center Camera Shelf or the FCA800 8-inch Above/Below Shelf.
How much weight can this 2x1 array mount support?
The LWM2X1U has a total weight capacity of 125 lbs (56.7 kg).
Is the LWM2X1U UL listed?
Yes, the LWM2X1U is UL Listed.
