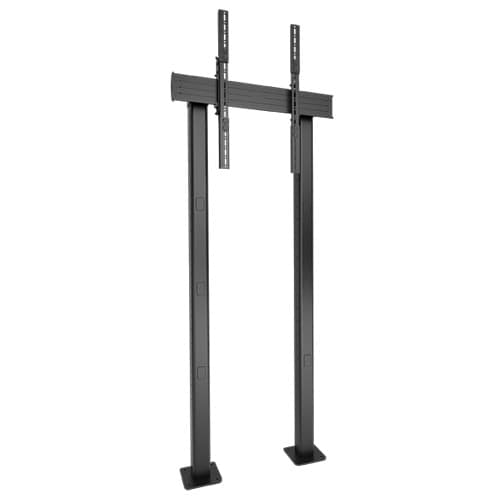

Fusion® Extra-Large Single Bolt-down, Portrait
Extra-large portrait bolt-down mount for 55"–100" displays, 250 lbs capacity, with micro-adjustable height, plumb, and lateral shift
The Chief XBM1UP is a Fusion® Extra-Large Single Bolt-down solution designed for portrait orientation in prominent installation environments. This freestanding mount is built for a permanent, bolt-down installation, providing a stable base for a single extra-large display. It supports a wide variety of screen sizes, specifically 55" to 100" (1397 mm to 2540 mm), and accommodates VESA mounting patterns ranging from 100 x 100mm to 800 x 900mm. With a weight capacity of 250 lbs (113.4 kg), this mount is engineered for heavy-duty professional use. To ensure precise alignment during and after installation, the system features micro-adjustability, including lateral shift and plumb adjustments of up to 0.75" (19 mm) each, alongside manual height micro-adjustments of up to 0.75" (19 mm) per screen. The integrated cable management system helps maintain a clean aesthetic in high-traffic areas. This TAA-compliant and UL Listed solution is ideal for high-impact digital signage and large-format displays where a permanent, non-mobile footprint is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Center of Display To Floor Table Range | 82.38" (2092 mm) (maximum top) - 16.38" (416 mm) (minimum bottom) |
| Depth | 7.5 in (19.1 cm) |
| Height | 82 in (208.3 cm) |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Overall Dimensions | 82" x 36" x 7.5" (2083 x 914 x 191 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 180 lbs (81.7 kg) |
All other specifications 15
| Typical Screen Size | 55" - 100" (1397mm - 2540mm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 36 in (91.4 cm) |
| Adjustability | Micro-Adjustable |
| Application | Bolt-Down |
| Array Configuration | 1 |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872165097 |
| VESA Mounting Pattern | 100 x 100mm - 800 x 900mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Fusion® Freestanding and Ceiling Extension Brackets-FCAX20
FCAX20$217.60
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00

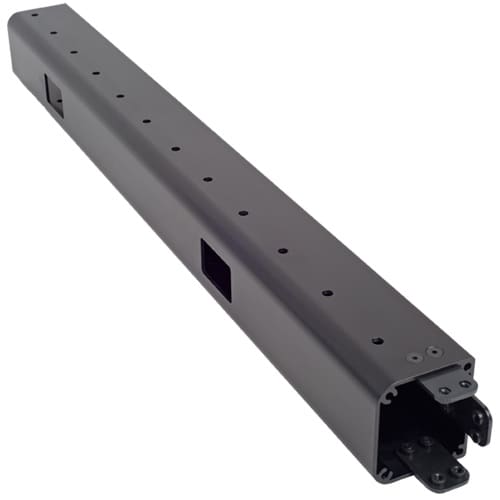

Fusion® LBM Video Wall Height Extensions - FCABX36
