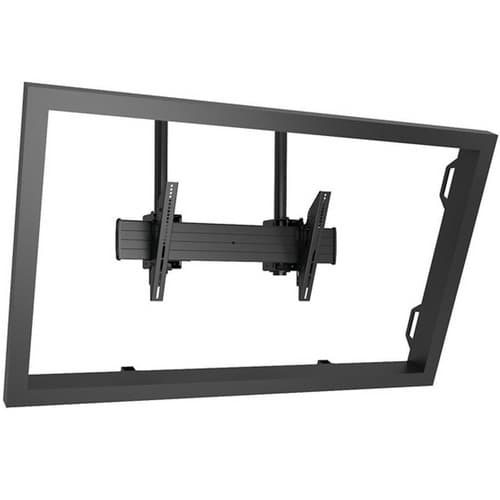

Fusion® Extra-Large Dual Pole Flat Panel Ceiling Mount
Dual pole ceiling mount for 55"–100" displays, 300 lbs capacity, with tilt and height adjustability
The Chief XCM7000 is an extra-large dual pole ceiling mount engineered specifically for heavy, large-format displays in digital signage and commercial environments. This mount supports a single display in landscape orientation with a weight capacity of 300 lbs (136 kg). To ensure precise positioning, it features height adjustability and a tilt range of +7.5° to -20°. The dual pole architecture provides a stable foundation for deep or extremely heavy screens, while post-installation leveling rolls allow for fine-tuned alignment after the mount is secured. For installers requiring secure deployment, the system supports tool-free screen engagement with the option for padlock security. This TAA compliant and UL Listed mounting solution is verified against 12,691 display models from 368 manufacturers, ensuring compatibility with a vast range of professional displays.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 36.5" x 12.5" x 10.5" (927.1 x 317.5 x 266.7 mm) |
| Shipping Weight | 34 lbs (15.4 kg) |
| Typical Screen Size | 55" - 100" (1397mm - 2540mm) |
| Weight Capacity | 300 lbs (136 kg) |
| Adjustability | Tilt, Height Adjustable |
| Application | Ceiling |
| Color | Black |
| Number of Displays | 1 |
All other specifications 8
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +7.5° / -20° |
| UPC | 841872159645 |
| VESA Mounting Pattern | 200 x 100mm - 800 x 400mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00

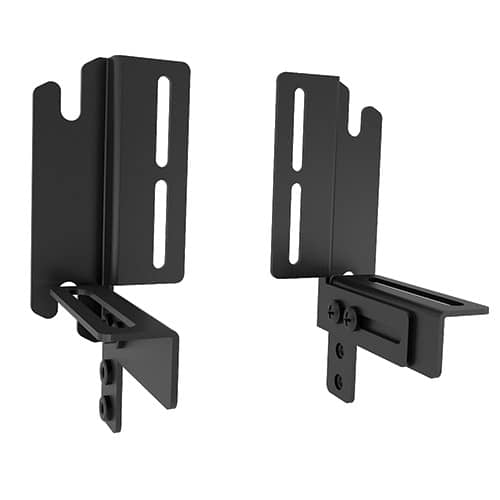

Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Fusion® 14 Inch Above/Below Shelf for Extra-Large Displays
FCA811$176.80

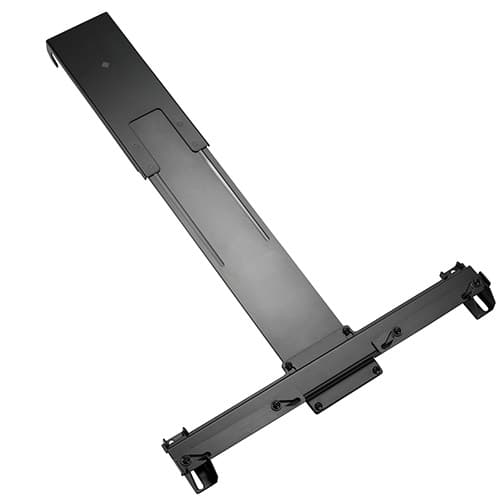

Center Channel Speaker Adapter-FCA530
FCA530$135.20

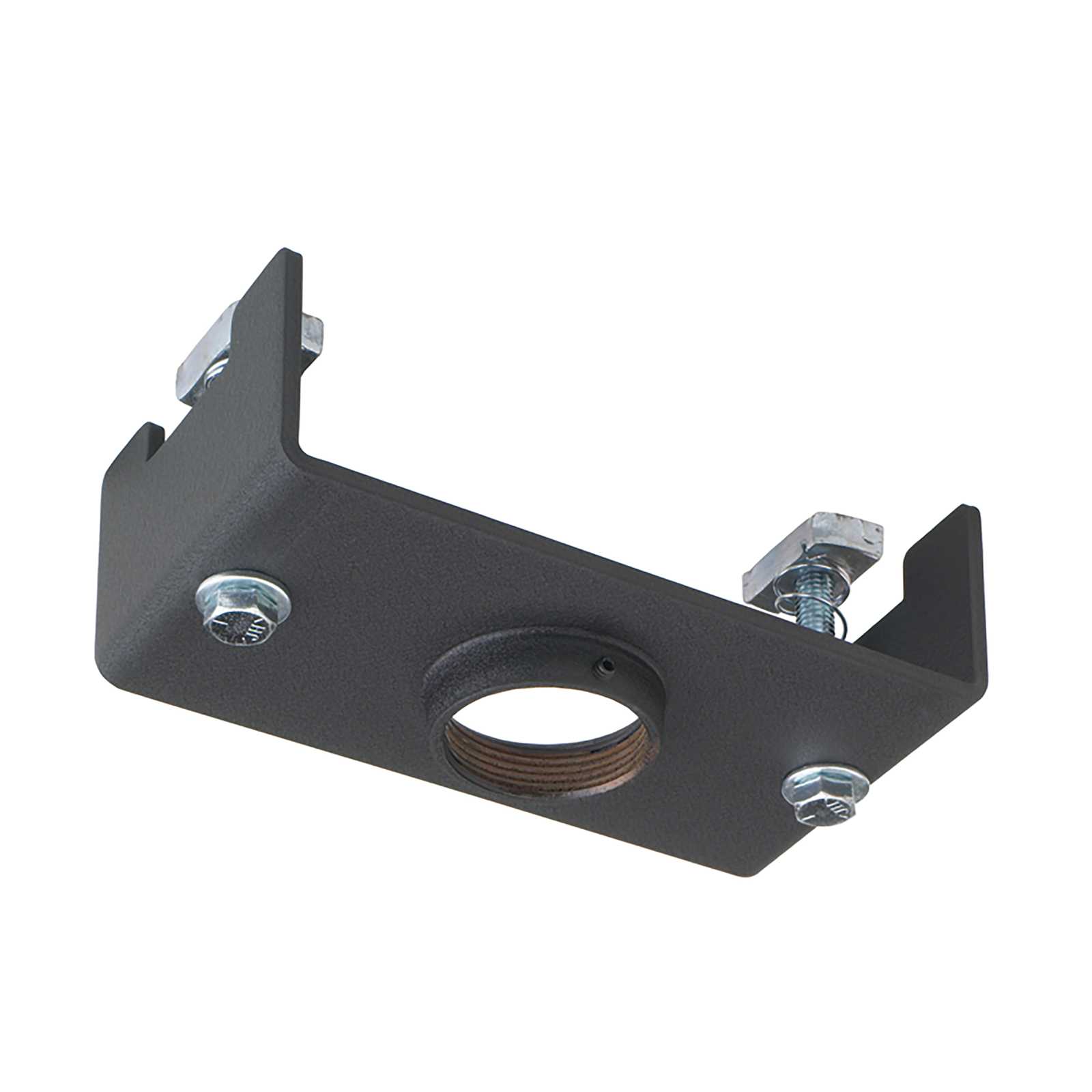

CMA372, Offset Unistrut Adapter
CMA372$66.40

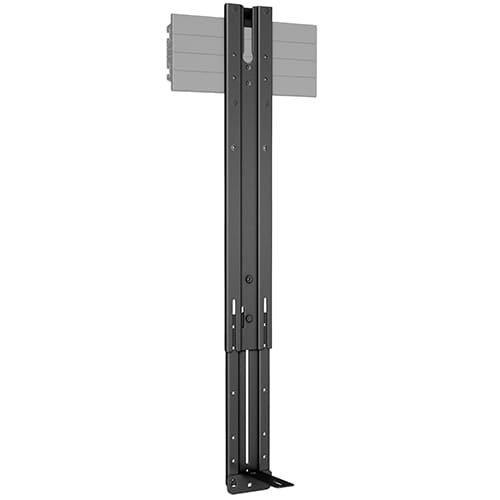

Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60
Angled Ceiling Plate
CMA395$66.40
Pin Connection Column 24 Inch (61 cm)-CPA024
CPA024$50.40
Pin Connection Offset Ceiling Plate
CPA330$82.40
CMS0203, 2-3' Adjustable Extension Column, Pole
CMS0203$166.40
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
Verified fitment
Questions about this part
Will the XCM7000 fit my display?
The mount is verified against 12,691 models from 368 manufacturers. Examples of compatible displays include the Samsung 400BX, LG 100QNED85AU, and Panasonic LH49RM1.
What is the weight and tilt capacity?
This mount supports a single display weighing up to 300 lbs (136 kg) with a tilt range of +7.5° to -20°.
What mounting pattern does this use?
The XCM7000 accepts VESA mounting patterns ranging from 200 x 100mm to 800 x 400mm.
What accessories are compatible with this mount?
You can add components such as the Fusion® 14 Inch Above/Below Shelf (FCA811) or the Proximity™ Component Storage Panel (CSMP9X12).
How is the display secured once installed?
The system provides tool-free screen engagement and is compatible with optional padlock security for enhanced stability.
