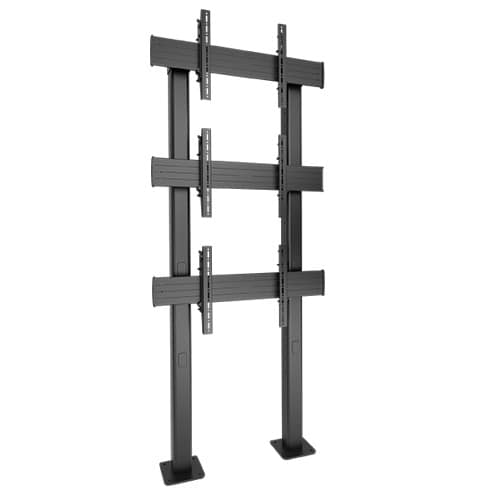

Fusion® 1 X 3 Micro-Adjustable Large Bolt-Down Freestanding Video Wall
1x3 landscape video wall mount for 42"–65" displays, 125 lbs per screen capacity, featuring micro-adjustable alignment
The Chief LBM1X3U is a Fusion® 1 x 3 Micro-Adjustable Large Bolt-Down Freestanding Video Wall designed for permanent installations in prominent locations. This 1x3 landscape screen arrangement accommodates displays ranging from 42" to 65" (1067 mm to 1651 mm) in size. To ensure a perfectly aligned visual array, the system provides micro-adjustments of up to 0.75" (19 mm) for height, plumb, and lateral shift for each individual screen. The structure is built for a permanent, bolt-down application, offering a stable foundation for large-format displays. Integrated cable management is built into the system to maintain a clean, professional installation. This TAA compliant solution supports a VESA mounting pattern range of 100 x 100mm to 900 x 400mm and maintains a weight capacity of 125 lbs (56.7 kg) per display. With an overall height of 84.45" (214.5 cm), the display center height can be adjusted from a minimum of 16.38" (416 mm) to a maximum of 82.39" (2093 mm) from the floor.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Center of Display To Floor Table Range | 82.39" (2093 mm) (maximum top) - 16.38" (416 mm) (minimum bottom) |
| Depth | 7.5 in (19.1 cm) |
| Height | 84.45 in (214.5 cm) |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Overall Dimensions | 84.45" x 36" x 7.5" (2145 x 914 x 191 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 200 lbs (90.7 kg) |
All other specifications 15
| Typical Screen Size | 42" - 65" (1067mm - 1651mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 36 in (91.4 cm) |
| Adjustability | Micro-Adjustable |
| Application | Bolt-Down |
| Array Configuration | 1x3 |
| Color | Black |
| Number of Displays | 3 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872164519 |
| VESA Mounting Pattern | 100 x 100mm - 900 x 400mm |
| Certifications | TAA |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® LBM Video Wall Height Extensions - FCABX36
FCABX36$264.00
Fusion® Freestanding and Ceiling Extension Brackets-FCAX20
FCAX20$217.60
Freestyle Flat Panel Rotation Adapter
FRA$341.60
Side Speaker Adapters
FCA535$178.40
Fusion® Freestanding and Ceiling Extension Brackets-FCAX14
FCAX14$203.20
Fusion® Freestanding and Ceiling Extension Brackets-FCAX08
FCAX08$176.80
Center Channel Speaker Adapter-FCA530
FCA530$135.20
Fusion® QUICK TIE (10 pk)
FCACLIPS$11.20
Fusion® LCM Menu Board Accessories
FCAC$100.00
Fusion® Above/Below ViewShare Kit, Extra Large Displays
FCA810VDiscontinued
Verified fitment
Questions about this part
Will the LBM1X3U fit my specific display models?
The LBM1X3U is verified against 8,645 display models from 246 manufacturers. Examples of compatible displays include Samsung 400BX, Sony 50BZ30P, LG 32LP1D, Panasonic LH65QM1, and Toshiba 40BV700.
What do I need to buy to complete this video wall installation?
This is the base LBM1X3U mount. Depending on your installation, you may need accessories such as the Fusion® LBM Height Extensions (FCABX36) or Proximity™ Component Storage Panels (CSMP9X12).
How much weight can each screen in the 1x3 array hold?
Each individual screen in the 1x3 configuration supports a weight capacity of 125 lbs (56.7 kg) per display.
How can I adjust the alignment of the screens once they are mounted?
The mount features micro-adjustability for each screen, allowing you to perform lateral shift, plumb adjustment, and manual height adjustments of up to 0.75" (19 mm) per screen.
What is the required VESA pattern for these displays?
The LBM1X3U supports a VESA mounting pattern range of 100 x 100mm to 900 x 400mm.
