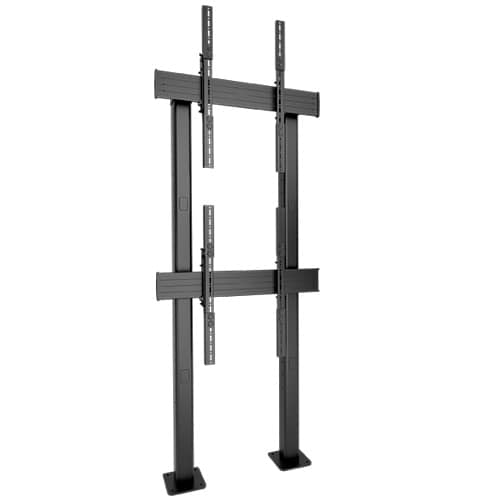

Fusion® 1 X 2 Micro-Adjustable Large Bolt-Down Freestanding Video Wall, Portrait
Portrait 1x2 video wall mount for 42"-80" displays, featuring micro-adjustment for height, plumb, and lateral shift
The Chief LBM1X2UP is a Fusion® Micro-Adjustable Bolt-Down Freestanding Video Wall solution configured in a 1x2 portrait screen arrangement. This system is designed to accommodate two displays ranging from 42" to 80" in size. Because this is a bolt-down application, it is intended for permanent installations in prominent locations where a stable, non-movable mounting structure is required. To ensure precise visual alignment, the mount provides micro-adjustability for each screen, allowing for up to 0.75" (19 mm) of manual height adjustment, 0.75" (19 mm) of plumb adjustment, and lateral shift. This capability is essential for achieving perfectly aligned seams in a multi-display array. The 84.45" (214.5 cm) tall structure maintains a footprint of 36" x 7.5" (914 x 191 mm) and supports a weight capacity of 125 lbs (56.7 kg) per display. Integrated cable management is built into the frame to facilitate a clean, professional installation for high-visibility environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Center of Display To Floor Table Range | 82.39" (2093 mm) (maximum top) - 16.38" (416 mm) (minimum bottom) |
| Depth | 7.5 in (19.1 cm) |
| Height | 84.45 in (214.5 cm) |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Overall Dimensions | 84.45" x 36" x 7.5" (2145 x 914 x 191 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 190 lbs (86.2 kg) |
All other specifications 15
| Typical Screen Size | 42" - 80" (1067mm - 2032mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 36 in (91.4 cm) |
| Adjustability | Micro-Adjustable |
| Application | Bolt-Down |
| Array Configuration | 1x2 |
| Color | Black |
| Number of Displays | 2 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872165080 |
| VESA Mounting Pattern | 100 x 100mm - 800 x 900mm |
| Certifications | TAA |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® LBM Video Wall Height Extensions - FCABX36
FCABX36$264.00
Fusion® Freestanding and Ceiling Extension Brackets-FCAX20
FCAX20$217.60
Freestyle Flat Panel Rotation Adapter
FRA$341.60
Side Speaker Adapters
FCA535$178.40
Fusion® Freestanding and Ceiling Extension Brackets-FCAX14
FCAX14$203.20
Fusion® Freestanding and Ceiling Extension Brackets-FCAX08
FCAX08$176.80
Center Channel Speaker Adapter-FCA530
FCA530$135.20
Fusion® QUICK TIE (10 pk)
FCACLIPS$11.20
Fusion® LCM Menu Board Accessories
FCAC$100.00
Fusion® Above/Below ViewShare Kit, Extra Large Displays
FCA810VDiscontinued
Verified fitment
Questions about this part
Will this mount fit my displays?
The LBM1X2UP is verified for 36 manufacturers and 18 models, including Samsung PL50C91HP and LG 55UL3JER, fitting displays between 42" and 80".
What is the height range of the display center?
The center of the display can be positioned with a range from 16.38" (416 mm) at the minimum bottom to 82.39" (2093 mm) at the maximum top.
What else do I need to buy for a complete installation?
While this is a standalone 1x2 array, you may need accessories like the FCACLIPS for cable management or the FRA Freestyle Flat Panel Rotation Adapter.
How do I adjust the screen alignment once it is mounted?
You can perform micro-adjustments for height, plumb, and lateral shift of up to 0.75" (19 mm) per screen to ensure perfect alignment.
Is this mount suitable for a permanent installation?
Yes, the bolt-down application is specifically designed for permanent, high-stability video wall solutions in prominent locations.
