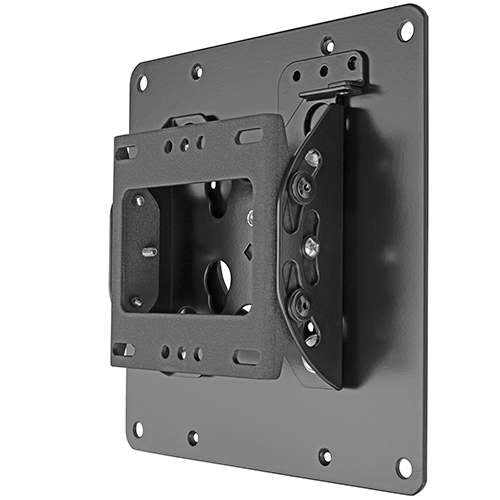

FTR1U Small Flat Panel Tilt Wall Mount
Small flat panel tilt wall mount for 10"–40" displays, 45 lbs capacity, with fingertip tilt adjustment
The Chief FTR1U is a small flat panel tilt wall mount designed for digital signage and hospitality applications. This universal solution supports displays from 10" to 40" (254mm–1016mm) and is capable of holding up to 45 lbs (20.4 kg). It is designed for both landscape and portrait orientations. Using patented Centris technology, this mount provides smooth fingertip tilt adjustment of +5° / -15°, allowing for easy screen positioning after installation. The mount features 0.5 in (1.3 cm) of lateral shift to assist with alignment and maintains a minimum depth of 1.95 in (5 cm) from the wall. Installation is streamlined by the exclusive Q-Latch™ Mounting System. This model is compatible with various VESA patterns including 50x50mm, 75x75mm, 100x100mm, 200x100mm, and 200x200mm. For installations requiring specific interface hardware, the FSB1U Universal Interface Bracket is a compatible accessory.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | 0.5 in (1.3 cm) |
| Maximum Screen Thickness | 6 in (152.4 mm) |
| Minimum Depth | 1.95 in (5 cm) |
| Shipping Dimensions | 9.29" x 9.28" x 3.03" (236 x 235.8 x 77 mm) |
| Shipping Weight | 4.69 lbs (2.1 kg) |
| Typical Screen Size | 10" - 40" (254mm - 1016mm) |
| Weight Capacity | 45 lbs (20.4 kg) |
| Adjustability | Tilt |
All other specifications 8
| Application | Wall |
| Color | Black |
| Orientation | LandscapePortrait |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | +5° / -15° |
| UPC | 841872168609 |
| VESA Mounting Pattern | 50 x 50mm, 75 x 75mm, 100 x 100mm,200 x 100mm, 200 x 200mm |
Resources
You'll need these with it
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
50x50mm VESA Interface Bracket
FSB4073$47.20
Freestyle Flat Panel Rotation Adapter
FRA$341.60
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Custom Small Flat Panel Interface Bracket - 200 x OFB157, M6
FSB4226BDiscontinued
Verified fitment
Questions about this part
Will the Chief FTR1U fit my display?
It is verified against 6,828 display models from 269 manufacturers, including the Samsung 150T, Sony 43BZ35P, LG 20LA90, and Panasonic BTL1500.
What do I need to buy to mount my display with the FTR1U?
The mount requires an interface bracket for specific VESA patterns; the FSB1U Small Flat Panel Universal Interface Bracket is a compatible option.
