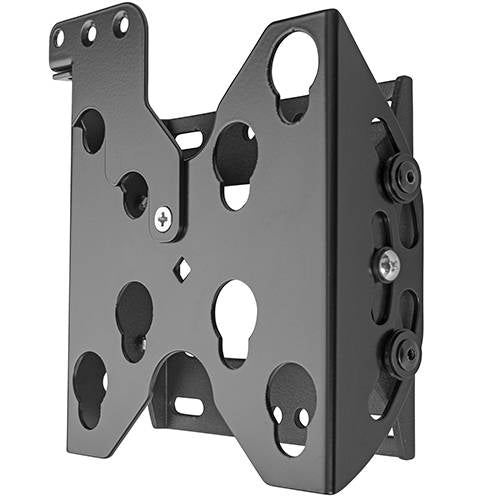

FTR100 Small Flat Panel Tilt Wall Mount
Tilt wall mount for 10" - 40" displays, 45 lbs capacity, with Centris fingertip tilt and Q-Latch mounting
The Chief FTR100 is a compact tilt wall mount designed for small flat panel digital signage and hospitality applications. It supports displays from 10" to 40" (254mm - 1016mm) and is capable of holding up to 45 lbs (20.4 kg). This universal mount is engineered for both landscape and portrait orientations, allowing for flexible installation in diverse environments. It features Chief's patented Centris technology, which enables smooth fingertip tilt adjustment for optimal viewing angles. For faster installation, the mount utilizes the exclusive Q-Latch™ Mounting System. The FTR100 supports VESA mounting patterns of 50 x 50mm and 100 x 100mm. This wall-applied solution maintains a minimum depth of 1.95 in (5 cm) from the wall, providing a low-profile appearance for small-format screens. Maximum screen thickness for this model is 6 in (152.4 mm). For installations requiring specific interface hardware, compatible options include the FSB1U Universal Interface Bracket and the FSB4073 50x50mm VESA Interface Bracket.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Screen Thickness | 6 in (152.4 mm) |
| Minimum Depth | 1.95 in (5 cm) |
| Shipping Dimensions | 9.29" x 6.02" x 2.87" (236 x 153 x 72.9 mm) |
| Shipping Weight | 2 lbs (0.9 kg) |
| Typical Screen Size | 10" - 40" (254mm - 1016mm) |
| Weight Capacity | 45 lbs (20.4 kg) |
| Adjustability | Tilt |
| Application | Wall |
All other specifications 6
| Color | Black |
| Orientation | LandscapePortrait |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872169033 |
| VESA Mounting Pattern | 50 x 50mm, 100 x 100mm |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
50x50mm VESA Interface Bracket
FSB4073$47.20
Freestyle Flat Panel Rotation Adapter
FRA$341.60
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Custom Small Flat Panel Interface Bracket - 200 x OFB157, M6
FSB4226BDiscontinued
Verified fitment
Questions about this part
Will the FTR100 fit my display?
The FTR100 is verified against 3,044 display models from 219 manufacturers. Examples of compatible displays include the LG 20LA90, Samsung 204B, HP 2201125, NEC 90GX2, and Philips 150B5C.
What mounting patterns are supported?
This mount is compatible with VESA mounting patterns of 50 x 50mm and 100 x 100mm.
What else do I need to purchase for installation?
Depending on your specific display, you may require an interface bracket such as the FSB1U Universal Interface Bracket or the FSB4073 50x50mm VESA Interface Bracket.
Can this mount be used in portrait orientation?
Yes, the FTR100 is designed to support both landscape and portrait mounting orientations.
How much clearance is required from the wall?
This mount has a minimum depth of 1.95 in (5 cm) from the wall to the display.
