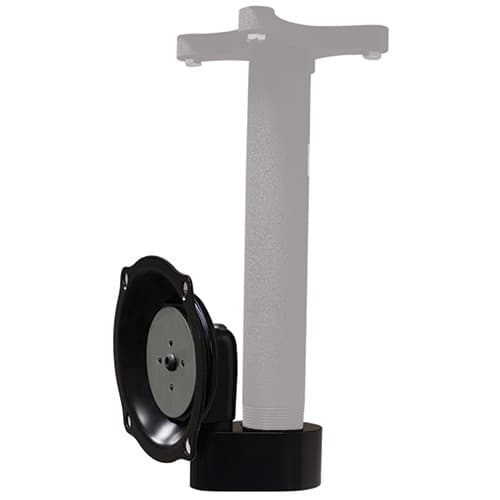

Flat Panel Ceiling Mount - JHSUB (Medium)
Ceiling mount for 20" - 43" displays, 75 lbs capacity, featuring Centris tilt technology and landscape or portrait orientation
The Chief JHSUB is a medium flat panel ceiling mount designed to provide secure, adjustable positioning for single-screen displays. This mount utilizes exclusive Centris Technology, which allows for fingertip tilt adjustment that self-adjusts to the specific weight of the display. Once the screen angle is set, the tilt remains locked in place until the installer chooses to re-adjust it. This system is compatible with displays ranging from 20" to 43" (508mm - 1092mm) and supports VESA mounting patterns from 100 x 100mm up to 400 x 400mm. For installation versatility, this mount can be configured in either landscape or portrait orientation. Cable management is simplified by the ability to route cables through the 1.5" NPT extension column. This unit is UL Listed and supports both swivel and tilt adjustments to achieve the precise viewing angle required for the environment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 19.5" x 10.5" x 3.7"(495.3 x 266.7 x 94 mm) |
| Shipping Weight | 9.05 lbs (4.1 kg) |
| Typical Screen Size | 20" - 43" (508mm - 1092mm) |
| Weight Capacity | 75 lbs (34 kg) |
| Adjustability | SwivelTilt |
| Application | Ceiling |
| Color | Black |
| Mounting Method | Universal |
All other specifications 8
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872114408 |
| VESA Mounting Pattern | 100 x 100mm - 400 x 400mm |
| Certifications | UL Listed |
Resources
You'll need these with it
CMS048, 48 Inch Fixed Extension Column, Pole
CMS048$80.00
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
Architectural Spanning Adapter
CMA366$150.40
Internal Joist Mount
CMA385$135.20
Electrical Storage Enclosure
CMA160$302.40
Verified fitment
Questions about this part
Will the Chief JHSUB fit my specific display?
This mount is verified against 8,047 display models from 220 manufacturers, including Samsung 320MP3, LG 26LC2, Sony 43BZ35P, Panasonic EJMLA37EW, Philips 26HF5334, and Toshiba 26AV550E.
What else do I need to buy to complete the installation?
The ceiling plate and an extension column (either adjustable or fixed) are required and must be ordered separately to suit your specific installation requirements.
How is the screen tilt adjusted after installation?
The Centris tilt technology allows for fingertip adjustment of the screen angle, and you can perform post-installation leveling using a leveling roll without the need for tools.
Can I mount my display in portrait mode?
Yes, the JHSUB supports both landscape and portrait mounting orientations for versatile installation.
Does this mount support non-VESA displays?
Yes, you can purchase an MSB interface bracket separately to accommodate screens that are not VESA compatible.
