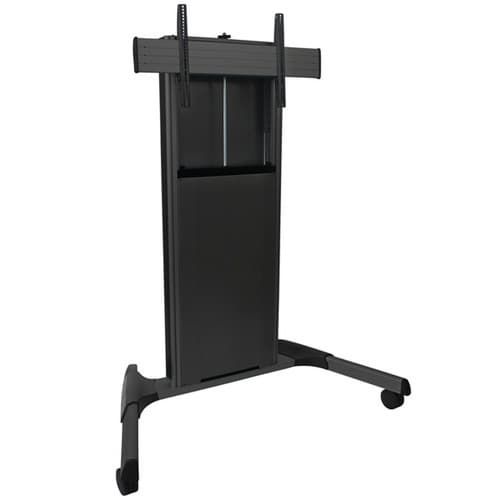

Extra-Large Fusion® Manual Height Adjustable Mobile AV Cart
Mobile height-adjustable AV cart for 55"-100" displays, 300 lbs capacity, with micro-adjustability and a black finish
The XPA1UB is an extra-large Fusion® mobile AV cart designed to bring professional, sleek aesthetics to corporate and classroom environments. This floor-based cart is engineered to support a single display between 55" and 100" (1397–2540 mm) with a weight capacity of 300 lbs (136 kg). It features micro-adjustable and height-adjustable capabilities, allowing a single operator to change the screen height using a 1/2" hex bit on a power drill without needing to remove the display from the mount. This cart is UL Listed for safety and features a black finish with rounded edges and magnetic covers for a professional appearance. For a more polished installation, Chief Fusion® Universal Back Covers can be used to provide aesthetic covering to the rear side of the displays, components, and the mount. This SKU is the black version of this series; the XPAUB is the version without the magnetic covers and handles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 68.5" x 43.9" x 8.86" (173.9 x 111.5 x 22.5 cm) |
| Shipping Weight | 142 lbs (64.4 kg) |
| Typical Screen Size | 55" - 100" (1397mm - 2540mm) |
| Weight Capacity | 300 lbs (136 kg) |
| Adjustability | Micro-Adjustable, Height Adjustable |
| Application | Floor-Cart |
| Color | Black |
| Number of Displays | 1 |
All other specifications 6
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872169002 |
| VESA Mounting Pattern | 200 x 200mm - 800 x 400mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Fusion® 8 Inch Above/Below Shelf for Extra-Large Displays
FCA810$152.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Fusion® Center Channel Speaker, Large Displays
FCA830$172.80
Fusion® Display Mount Accessory for Logitech® Rally Bar, Rally Bar Mini and Rally Bar Huddle
FCALRB1$233.60

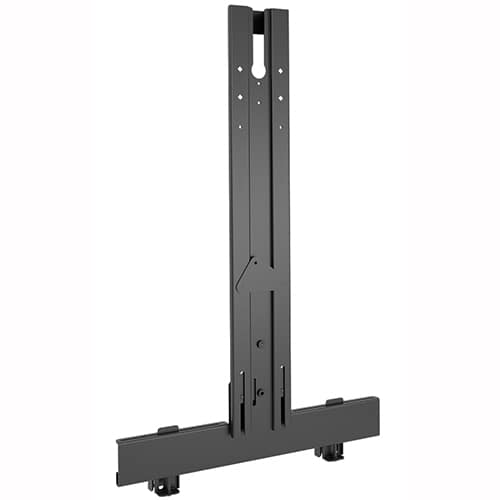

Fusion® Center Channel Speaker, Extra-Large Displays
FCA840$196.80
Fusion® 14 Inch Above/Below Shelf for Extra-Large Displays
FCA811$176.80
Center Channel Speaker Adapter-FCA530
FCA530$135.20
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Stackable Component Shelf
FCA870$111.20
Fusion® Carts and Stands Medium CPU Holder - FCA651B
FCA651B$265.60
Verified fitment
Questions about this part
Will the XPA1UB fit my specific display?
The XPA1UB is verified against 6,203 display models from 317 manufacturers. Examples include the Samsung 400CX, LG 100QNED85AU, and Panasonic LH86QM1KD.
Can I use this cart for portrait orientation?
Yes, portrait orientation is supported if your screen is at least 27" tall and features a 400 x 400mm mounting pattern or smaller.
How do I adjust the height of the display?
The cart is micro-adjustable and height-adjustable; you can adjust the height with a 1/2" hex bit on a power drill without removing the screen.
What accessories are compatible with the XPA1UB?
Compatible accessories include the Fusion® 8 Inch Above/Below Shelf (FCA810), the Proximity™ Component Storage Panel (CSMP9X12), and various CPU holders like the FCA650B.
Is the XPA1UB UL listed?
Yes, the XPA1UB is UL Listed.
