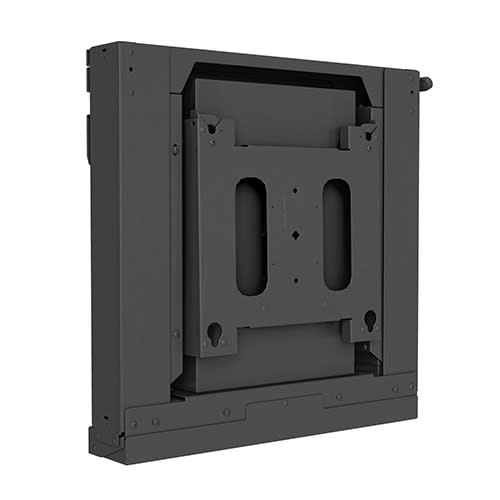

Extra-Large Electric Height Adjust Wall Mount
Electric height-adjustable wall mount for 50" - 80" displays with 310 lbs capacity and 26" vertical lift
The Chief XSD1U is an automated, electric height-adjustable wall mount designed for large-format displays. This system provides a 26" (660mm) vertical lift, allowing users to transition a display between different viewing heights at the touch of a button. It is engineered for applications where the viewing angle must change, such as in multi-purpose conference rooms or collaborative spaces. The mount features micro-adjustable capabilities and a leveling adjustment of up to 1.5" (38mm) to ensure the display is perfectly positioned after installation. This unit supports a VESA mounting pattern ranging from 200 x 200mm to 860 x 510mm. With a weight capacity of 310 lbs (140.6 kg), it is built to handle heavy-duty professional displays. The system includes a US power cord and is UL Listed for safety. For specialized setups, this mount is compatible with several accessories, including the PAC810HS Above/Below HuddleSHOT camera shelf and the PAC138 ClickConnect Padlock.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 40" x 30" x 11.5" (101.6 x 76.2 x 29.2 cm) |
| Shipping Weight | 133 lbs (60.3 kg) |
| Typical Screen Size | 50'' - 80" (1270mm - 2032mm) |
| Weight Capacity | 310 lbs (140.6 kg) |
| Adjustability | Automated, Height Adjustable, Micro-Adjustable |
| Adjustments | Leveling adjustment: up to 1.5” (38mm) |
| Application | Wall |
| Color | Black |
All other specifications 6
| Power Cord | US Cord |
| Special Features | Height Assist |
| TAA Compliant | No |
| UPC | 841872173320 |
| VESA Mounting Pattern | 200 x 200mm – 860 x 510mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Video Conferencing Camera Shelf - 9 Inch - PAC715
PAC715$153.60
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
ClickConnect Padlock
PAC138$37.60
Large Accessory Shelf
PACCS1$147.20
Center Channel Speaker Adapter-PACCC1
PACCC1$153.60
Freestyle Flat Panel Rotation Adapter
FRA$341.60
Left/Right Speaker Adapter-PACLR2
PACLR2
PAC800HS Above/Below HuddleSHOT All-in-One Conferencing Camera Shelf for Large Displays
PAC800HSDiscontinued
PAC810HS Above/Below HuddleSHOT All-in-One Conferencing Camera Shelf for Extra-Large Displays
PAC810HSDiscontinued
Left/Right Speaker Adapter-PACLR1
PACLR1
Verified fitment
Questions about this part
Will the XSD1U fit my display?
The mount is verified against 5,447 display models from 189 manufacturers, including the Samsung 650FP, Sony 85X81CH/AL, LG 100QNED85AU, and Panasonic LH75QM1KD.
How much vertical movement does this mount provide?
The electric height adjustment provides a 26" (660mm) vertical lift to change the viewing position of the screen.
What VESA patterns are supported by the XSD1U?
This mount supports VESA mounting patterns from 200 x 200mm up to 860 x 510mm.
What accessories are compatible with this mount?
You can add accessories such as the PAC810HS camera shelf for extra-large displays, the CSMP9X12 Proximity™ Component Storage Panel, or the PAC138 ClickConnect Padlock.
What is the weight capacity for this height-adjustable mount?
The XSD1U has a maximum weight capacity of 310 lbs (140.6 kg).
