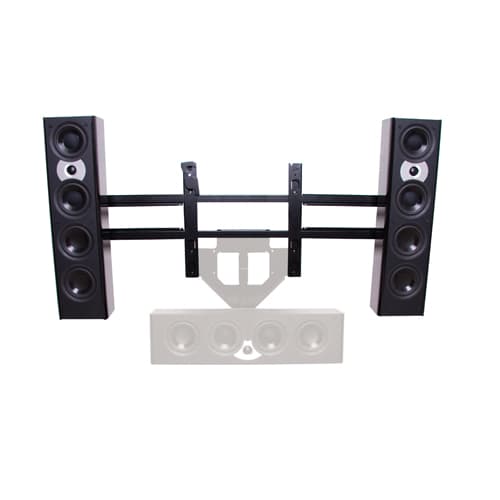

Left/Right Speaker Adapter-PACLR2
Speaker adapter for side-mounting speakers to Chief flat panel mounts, providing depth adjustment and leveling for 46"–65" displays
The Chief PACLR2 is a speaker accessory designed to facilitate the seamless integration of side-mounted speakers with Chief flat panel mounting solutions. This adapter is intended for use on either the left or right side of a display to ensure speakers are properly aligned with the screen. It is compatible with typical screen sizes ranging from 46" to 65". To maintain a sleek aesthetic, the unit features a low-profile design that adds only 0.94" (24 mm) of depth to the installation. Installers can achieve precise leveling by utilizing the provided fore/aft and roll adjustments, which allow the speaker to be leveled with the front of the TV. This component arrives fully assembled to accelerate on-site installation and includes fine-tuning adjustments to accommodate most speaker types. Please note that weight capacity ratings are calculated per speaker.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 63.75" x 24.25" x 4" (161.9 x 61.6 x 10.2 cm) |
| Shipping Weight | 24.34 lbs (11 kg) |
| Typical Screen Size | 46" - 65" (1168mm - 1651mm) |
| Accessory Type | Speaker Accessories |
| Application | LeftRight |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872147093 |
| Certifications | TAA |
Resources
Questions about this part
Will the PACLR2 work with my 55 inch display?
Yes, this adapter is intended for displays within the 46" to 65" screen size range.
Can I use this on both sides of the mount?
The PACLR2 is designed for application on either the left or right side of the mounting solution.
How much extra depth does this add to the install?
This is a low-profile adapter that adds 0.94" (24 mm) of depth to your installation.
How do I level the speakers if they are not flush with the screen?
You can use the integrated roll and fore/aft adjustments to level the speaker with the front of the display.
Which technical documents are available for submittals?
You can access the PACLR2 Technical Drawing (PDF), CAD Drawing (dwg), and Installation Manual (PDF) in the resources section.
