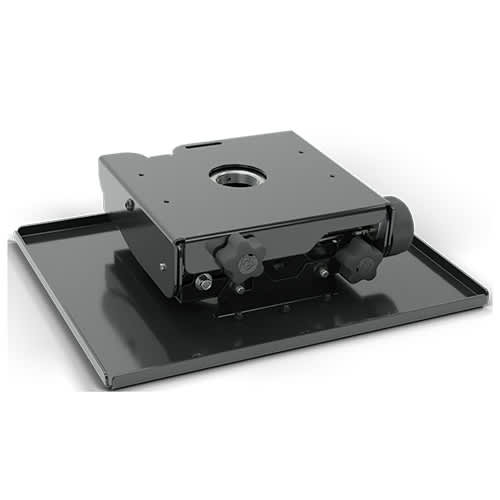

Extra-Large Custom Tool-Free Projector Mount
Extra-large ceiling mount for 50-150 lbs (22.7–68 kg) laser projectors, featuring tool-free MicroZone+ adjustments
The VCT107B is an extra-large custom tool-free projector mount designed for rapid installation and a slim aesthetic. This ceiling-applied mount is engineered to support laser projectors weighing between 50 lbs (22.7 kg) and 150 lbs (68 kg). It is 30% slimmer and 25% lighter than the previous VCM series, offering a low-profile solution for large venues. Precise image registration is achieved through tool-free MicroZone+ Pitch Adjustment, which utilizes a 100:1 gear ratio for fine-tuned alignment. This pitch adjustment can be managed manually via a gear-driven tool-free knob or with a 1/2" (13mm) socket. Additionally, the unit features MicroZone Roll and Yaw adjustments for independent roll, pitch, and yaw control. The VCT107B includes the HC107B custom interface for specific projector mounting needs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 22.63" x 22.63" x 9.5"(574.9 x 574.9 x 241.3 mm) |
| Shipping Weight | 28 lbs (12.7 kg) |
| Weight Capacity | 150 lbs (68 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Micro Roll 5°, Micro Pitch 20°, Micro Yaw 10° and Macro Yaw 360° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
All other specifications 5
| Protective Glass | No |
| Solution Type | Custom |
| Special Features | Large Venue |
| TAA Compliant | No |
| UPC | 841872174396 |
Resources
You'll need these with it
CMA372, Offset Unistrut Adapter
CMA372$66.40
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
Architectural Spanning Adapter
CMA366$150.40
Internal Joist Mount
CMA385$135.20
Electrical Storage Enclosure
CMA160$302.40
Questions about this part
What projector weight capacity does the VCT107B support?
The VCT107B is designed for heavy laser projectors with a weight capacity of 50–150 lbs (22.7–68 kg).
Does this mount require special tools for image alignment?
No, it features tool-free MicroZone+ pitch adjustment. You can use the gear-driven knob for fine adjustments or a 1/2" (13mm) socket.
What ceiling plates are compatible with this mount?
The VCT107B can be paired with various plates, including the CMA105 4-inch ceiling plate and the CMA330 8-inch offset ceiling plate.
Can I use the VCT107B with a truss or I-beam?
Yes, you can use accessories like the CMA380 Truss Clamp or the CMA360 C-Clamp to adapt the mount to different structures.
How much can I adjust the pitch and yaw on this mount?
The mount provides micro-adjustability including a 20° micro pitch, 5° micro roll, and 10° micro yaw, plus a 360° macro yaw.
