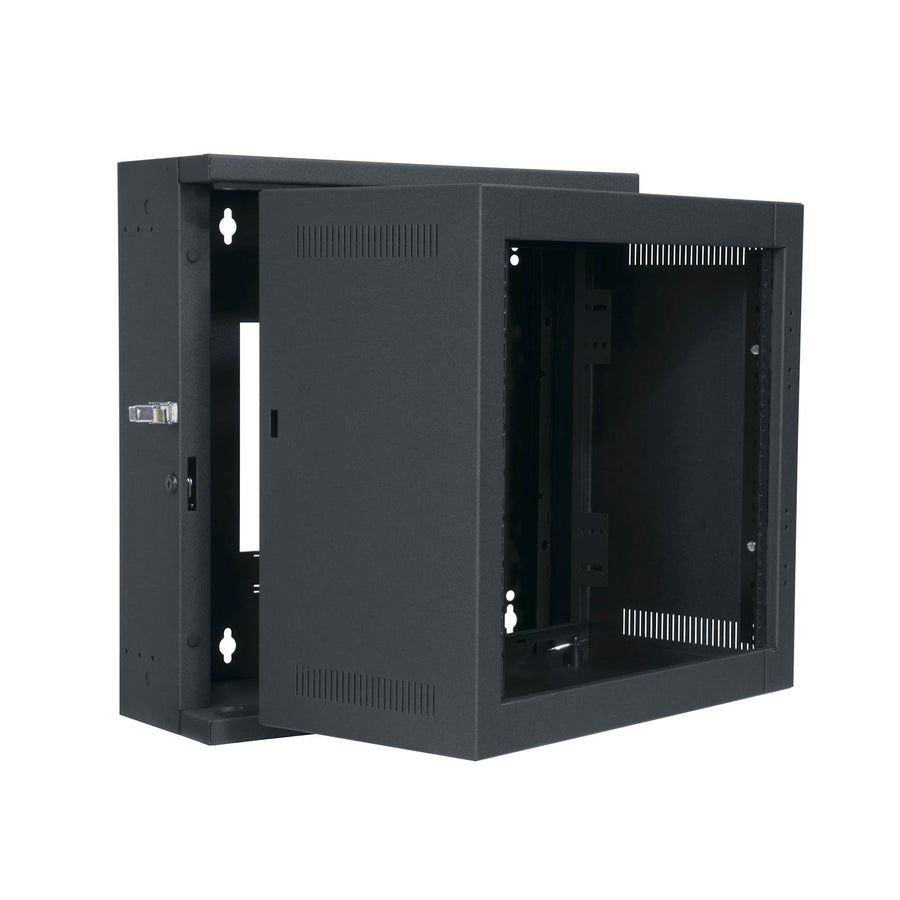

EWR Series Pivoting Wall Rack - EWR-8-17
8 RU pivoting wall rack, 17 in (43.2 cm) depth, 150 lbs (68 kg) UL load capacity, with reversible center section
The EWR-8-17 is an 8 RU pivoting wall rack designed as an economical solution for smaller system installations. This sectional wall cabinet features a 17 in (43.2 cm) total depth and a 23.38 in (59.4 cm) width, providing a usable depth of 15 in (38.1 cm) and a usable height of 14 in (35.6 cm). The fully welded construction ensures structural strength for a UL Listed load capacity of 150 lbs (68 kg). For installation flexibility, the center section utilizes the patented Tool Free Quick-Mount™ system for center section mounting and features a reversible swing. This center section can be secured with a key lock or a padlock, and it is keyed differently from optional front doors to enhance security in both secured and unsecured environments. The rack includes standard adjustable 10-32 threaded rackrails and is optimized for passive thermal management. This TAA compliant unit is finished in a Black Wrinkle Powder Coat.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 17 in (43.2 cm) |
| Height | 21 in (53.3 cm) |
| Product Weight | 55 lbs (25 kg) |
| Rack Units | 8 RU |
| Shipping Weight | 55 lbs (25 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 15 in (38.1 cm) |
| Usable Height | 14 in (35.6 cm) |
All other specifications 8
| Width | 23.38 in (59.4 cm) |
| Federal Ops Country of Origin | Mexico |
| Finish | Black Wrinkle Powder Coat |
| Front Door | No |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747057250 |
| Certifications | CSA StandardTAAUL Listed |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel, Textured
QTFP-2$243.00

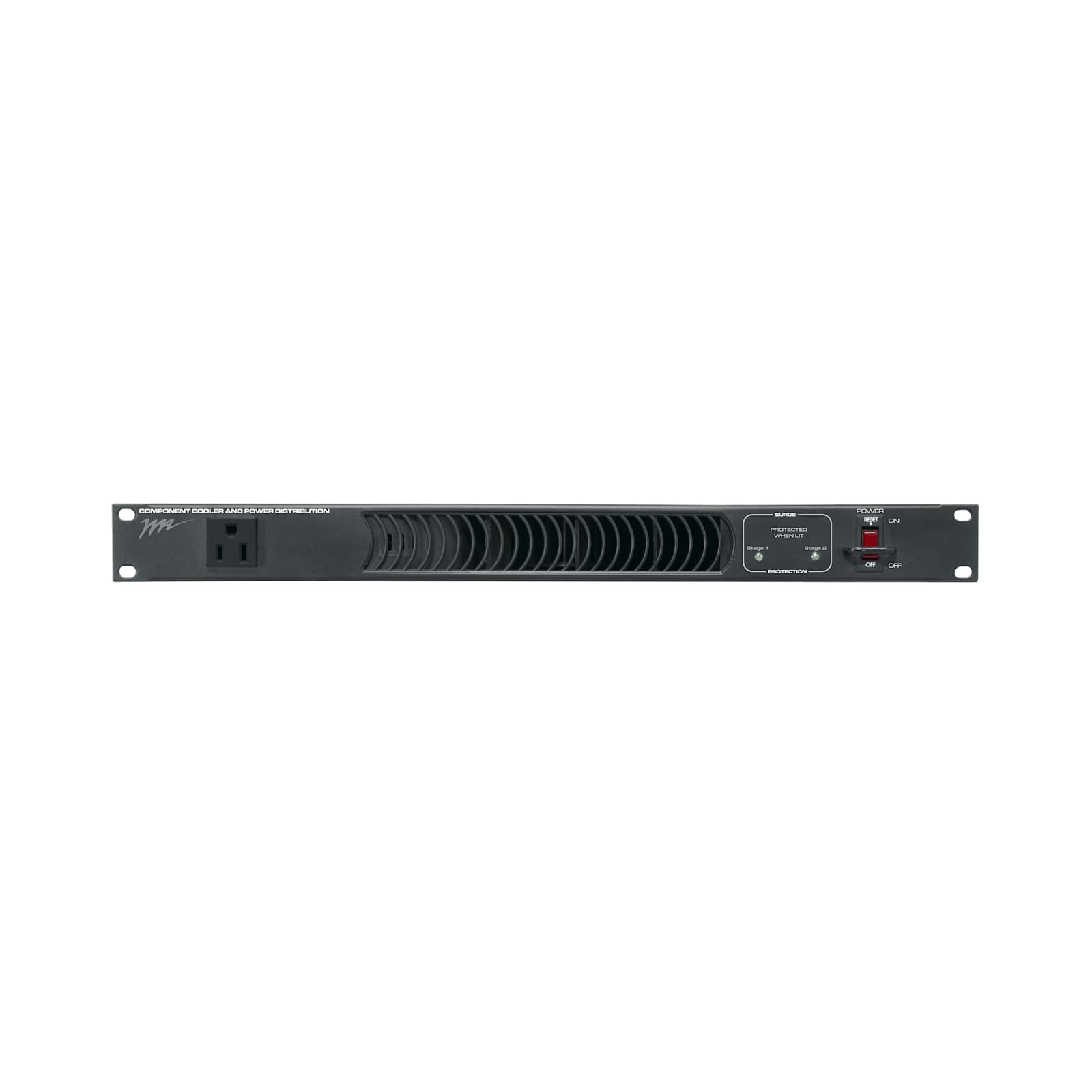

Rackmount Power/Cooling, 11 Outlet, 15A & 2-Stage Surge
PDCOOL-1115R$846.00
1 RU BlowerPanel, 100 CFM, 32dB & Anodized
QBP-2A$640.80
1 RU Panel Gooseneck Light
LT-GN-PNL$180.00
8 RU Rackrail 10-32 for DWR/EWR Series
DWR-RR8$59.40

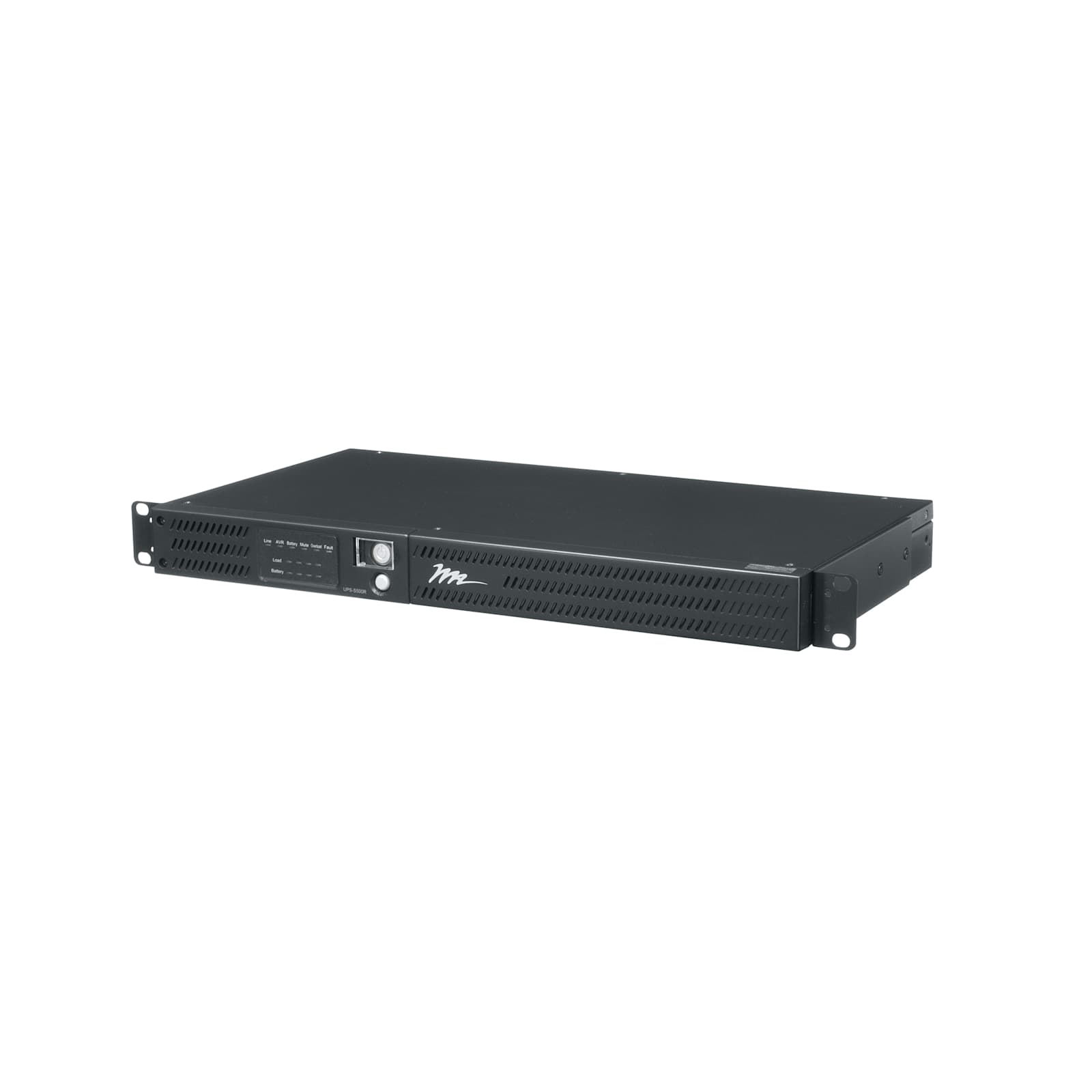

1 RU Select Series UPS Backup Power, 500VA
UPS-S500R$927.00
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
Questions about this part
What is the weight capacity of the EWR-8-17?
The EWR-8-17 is UL Listed with a load capacity of 150 lbs (68 kg) in both the US and Canada.
How much depth is available for my equipment?
While the total depth is 17 in (43.2 cm), the EWR-8-17 provides a usable depth of 15 in (38.1 cm).
What are the security features for this rack?
The reversible center section can be secured via padlock or key lock; the center section is keyed differently from optional front doors.
Is the EWR-8-17 TAA compliant?
Yes, this product is TAA compliant and is listed with CSA, TAA, and UL certifications.
What mounting hardware is used for the rails?
The EWR-8-17 features standard front adjustable 10-32 threaded rackrails.
