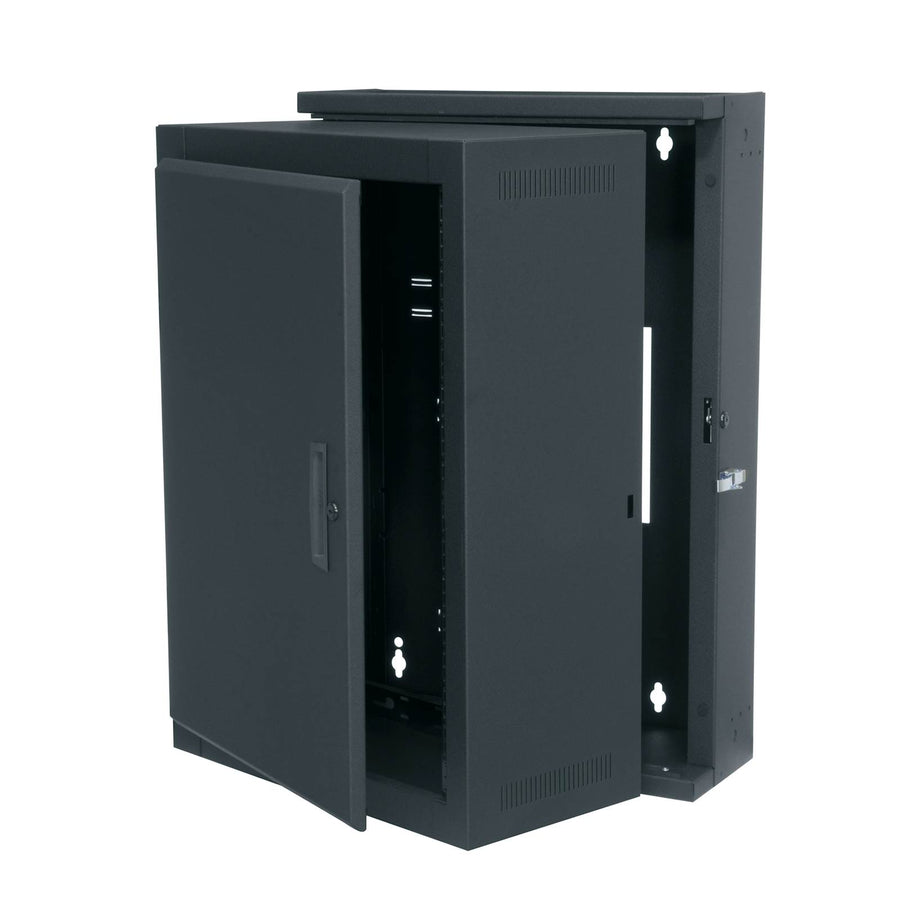

EWR Series Pivoting Wall Rack - EWR-16-22SD
16RU pivoting wall rack with 22" depth, featuring a solid front door and 150 lbs UL load capacity
The Middle Atlantic EWR-16-22SD is a 16RU pivoting wall rack designed to provide an economical solution for smaller system installations in both secured and unsecured environments. This 22 in (55.9 cm) deep cabinet features a fully welded construction for enhanced structural strength and a solid front door. The unit is engineered with a patented Tool Free Quick-Mount™ system that facilitates the mounting of the center section. To assist with maintenance and cabling, the center section swing is reversible and can be secured using either a key or a padlock. This center section is keyed differently from the optional front door to provide an additional layer of security. Inside, the cabinet features standard adjustable 10-32 threaded rackrails. The EWR-16-22SD is optimized for passive thermal management to protect sensitive components. This TAA compliant rack is UL Listed in the US and Canada with a 150 lbs (68 kg) weight capacity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 35 in (88.9 cm) |
| Product Weight | 95 lbs (43.1 kg) |
| Rack Units | 16 RU |
| Shipping Weight | 94 lbs (42.6 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 28 in (71.1 cm) |
All other specifications 8
| Width | 23.38 in (59.4 cm) |
| Federal Ops Country of Origin | Mexico |
| Finish | Black Wrinkle Powder Coat |
| Front Door | Yes |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747057243 |
| Certifications | CSA StandardTAAUL Listed |
Resources
You'll need these with it
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
100 CFM Fan Panel, Textured
QTFP-2$243.00
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Lace Bar 2 Inch Offset, L-Shaped - 10 Pieces
LBP-2A$105.30
16 RU Rackrail 10-32 for DWR/EWR Series
DWR-RR16$98.10
1 RU Flanged Blank Rack Panel, Wrinkled
WSB1$24.30
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-815SC-20$232.20
Questions about this part
Will this EWR-16-22SD rack fit my equipment?
The EWR-16-22SD provides a 28 in (71.1 cm) usable height and a 20 in (50.8 cm) usable depth within its 16RU frame.
How much weight can I safely mount in this rack?
This unit is UL Listed with a 150 lbs (68 kg) load capacity for installed equipment.
What do I need to buy to complete my installation?
Depending on your setup, you may need accessories such as the PD-815SC power strip, WUSS series wide unit shelves, or a QTFP-2 fan panel.
How is the center section secured?
The reversible center section can be both key-locked and padlocked, using a different key than the optional front door for added security.
Does this rack meet TAA requirements?
Yes, the EWR-16-22SD is TAA compliant and is manufactured in Mexico.
