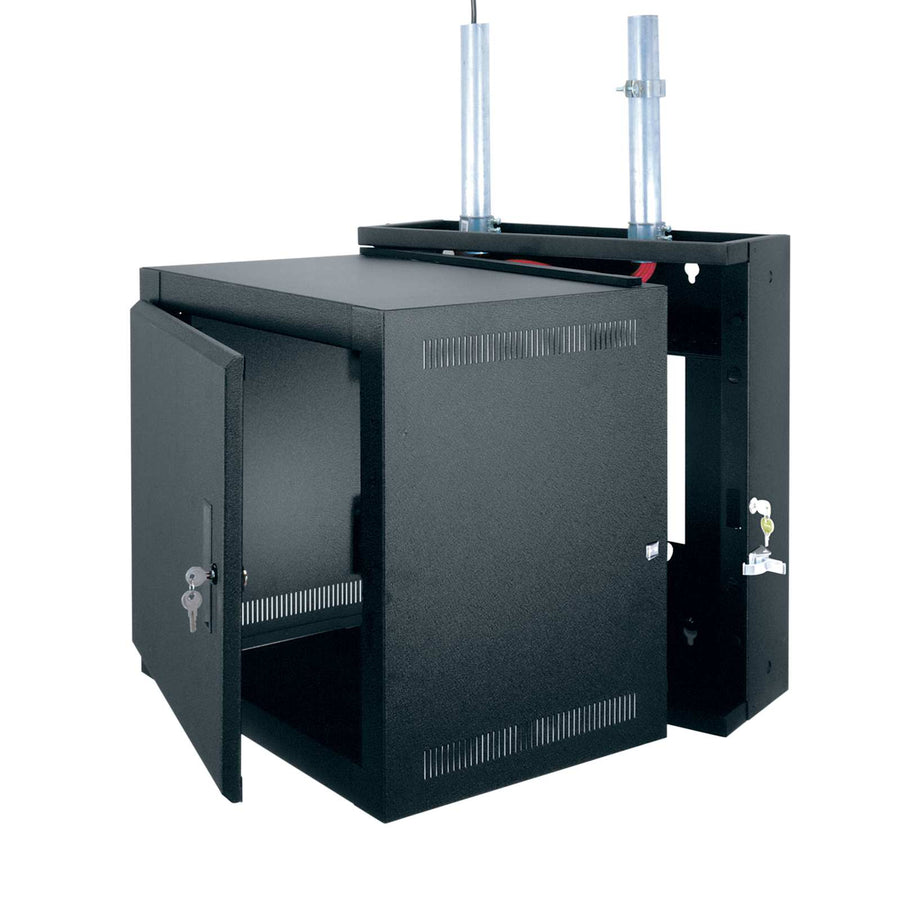

EWR Series Pivoting Wall Rack - EWR-12-22SD
12RU pivoting wall rack, 22 in (55.9 cm) depth, featuring a solid front door and 150 lbs (68 kg) UL load capacity
The Middle Atlantic EWR-12-22SD is a 12RU pivoting wall rack designed as an economical solution for smaller systems in both secured and unsecured environments. This sectional wall cabinet features a fully welded construction for increased strength and is optimized for passive thermal management. It includes a solid front door and standard adjustable 10-32 threaded rackrails. The center section utilizes a patented Tool Free Quick-Mount™ system for efficient mounting, and the swing is reversible to suit specific installation requirements. For enhanced security, the center section can be both key-locked and padlocked, and it is keyed differently than the optional front door. This TAA compliant rack has a total product weight of 82 lbs (37.2 kg) and is UL Listed in the US and Canada with a 150 lbs (68 kg) weight capacity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 28 in (71.1 cm) |
| Product Weight | 82 lbs (37.2 kg) |
| Rack Units | 12 RU |
| Shipping Weight | 75.3 lbs (34.2 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 21 in (53.3 cm) |
All other specifications 8
| Width | 23.38 in (59.4 cm) |
| Federal Ops Country of Origin | Mexico |
| Finish | Black Wrinkle Powder Coat |
| Front Door | Yes |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747057205 |
| Certifications | CSA StandardTAAUL Listed |
Resources
You'll need these with it
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
Select Series PDU with RackLink™, 9 Outlet
RLNK-915R$715.50
NEXSYS™ 2 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
PDX-215C$262.80
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
NEXSYS™ 9 Outlet, 15 Amp Rackmount Power with Series Surge Protection
PDX-915R-SP$907.20
Compact Premium+ PDU With RackLink™, 4 Outlet 15A & 2-Stage Surge
RLNK-P415$1,360.80
NEXSYS™ 2000VA, 20 Amp UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-2000R-2$3,519.90
1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
NEXSYS™ 2000VA, 20 Amp Online UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-OL2000R-2$5,169.60
NEXSYS™ 2000VA, 20 Amp UPS Backup Power System with RackLink™, Individual Outlet Control
UPX-RLNK-2000R-8$3,850.20
Questions about this part
How much weight can the EWR-12-22SD support?
This rack is UL Listed with a 150 lbs (68 kg) load capacity.
Can I secure the EWR-12-22SD in a shared space?
Yes, the center section is reversible and can be both padlocked or key-locked; the center section is keyed differently from the optional front door for added security.
What type of rackrails are used in this cabinet?
The EWR-12-22SD features standard, front-adjustable 10-32 threaded rackrails.
Is this rack suitable for TAA compliant projects?
Yes, the EWR-12-22SD is TAA compliant.
What is the usable depth of this 22 in (55.9 cm) rack?
The EWR-12-22SD has a usable depth of 20 in (50.8 cm).
